Seals and Gaskets: Service and Repair

1. Remove exhaust tube, muffler and heat insulator. Refer to Exhaust System.
2. Remove propeller shaft from vehicle.

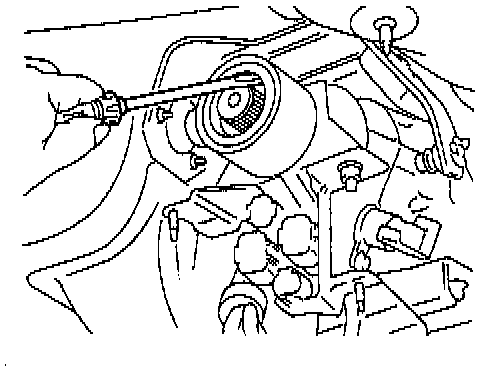

3. Remove rear oil seal.

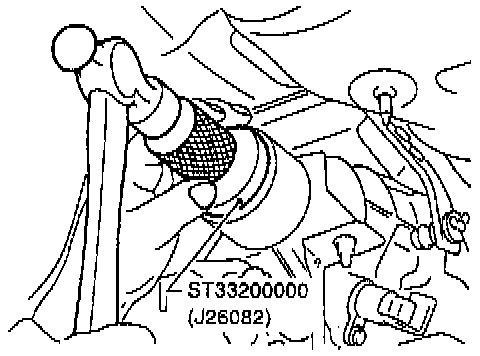

4. Install rear oil seal. Apply ATF before installing.
5. Reinstall any part removed.
