Control Unit Inspection

The standard values (voltage), measured with an analog tester in contact with the control unit terminal, are shown below:

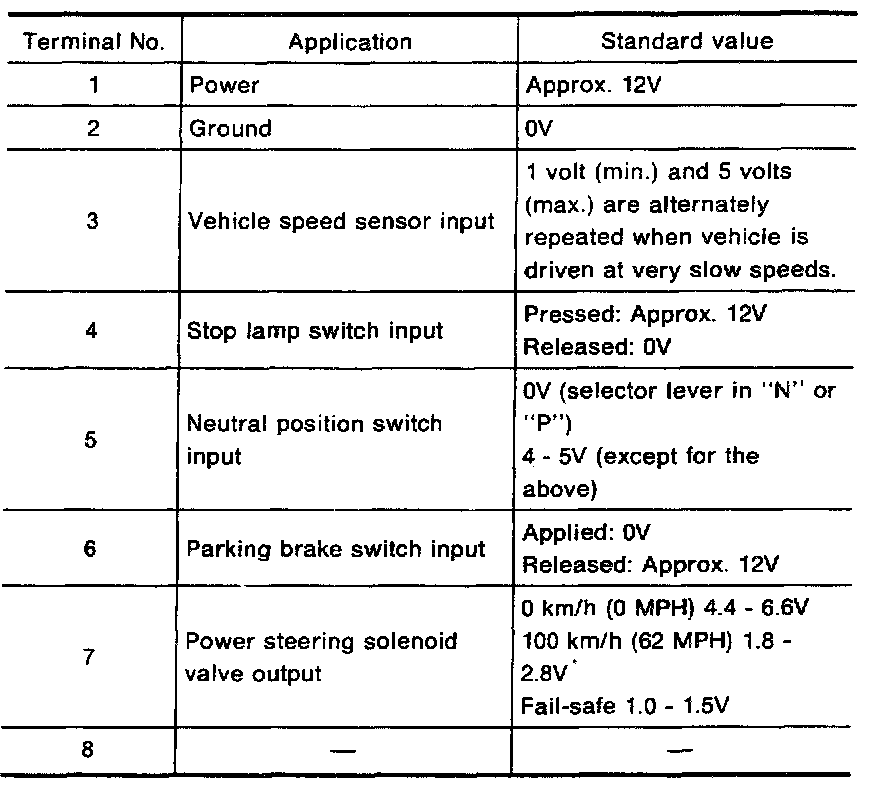

CONTROL UNIT INSPECTION TABLE

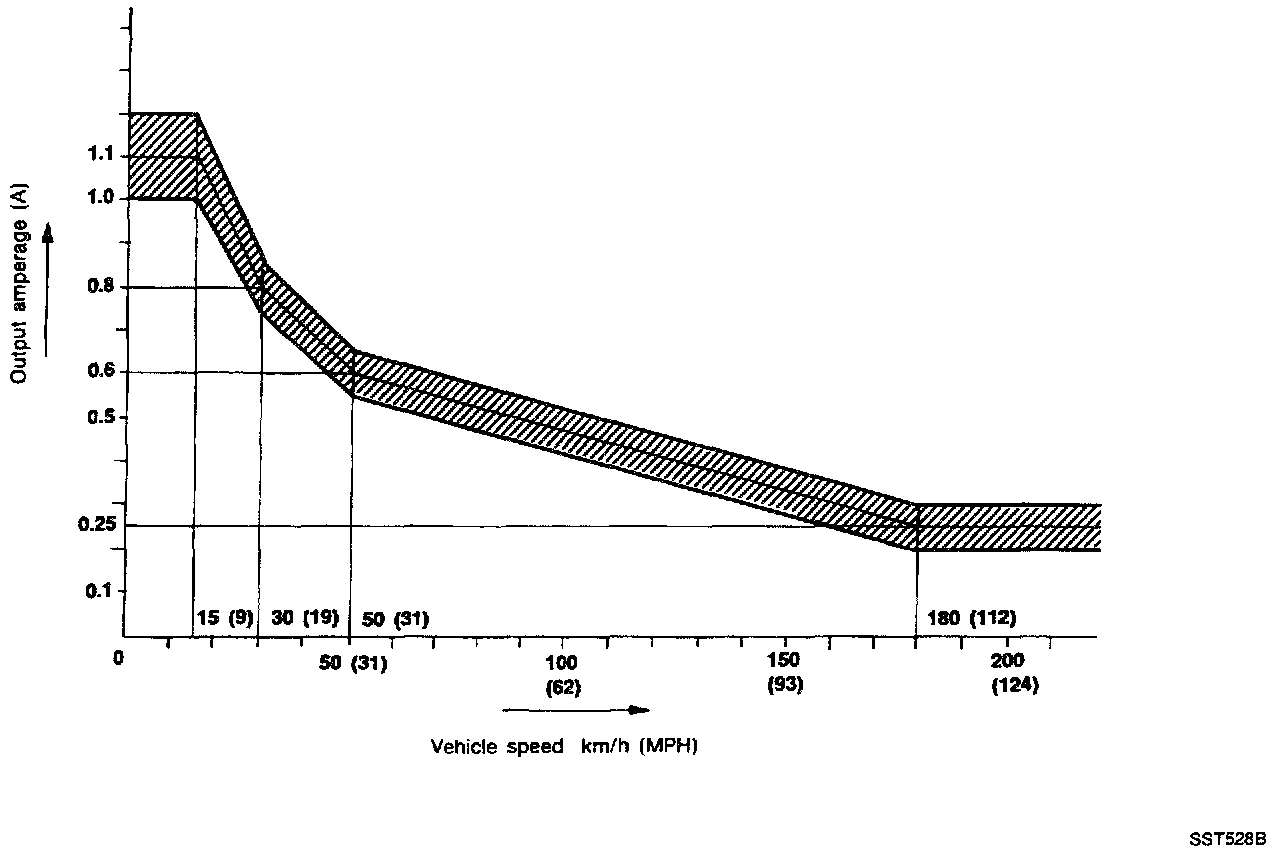

PERFORMANCE OF CONTROLLER
