Neutral Safety Switch: Adjustments

Inhibitor Switch Adjustment:

1. Remove manual control linkage from manual shaft of A/T assembly.
2. Set manual shaft of A/T assembly in "N" position.

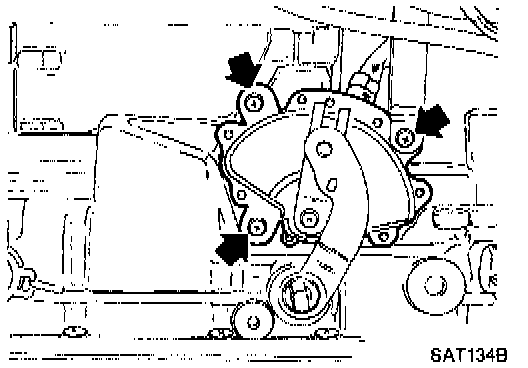

3. Loosen inhibitor switch fixing bolts.

Inhibitor Switch Adjustment:

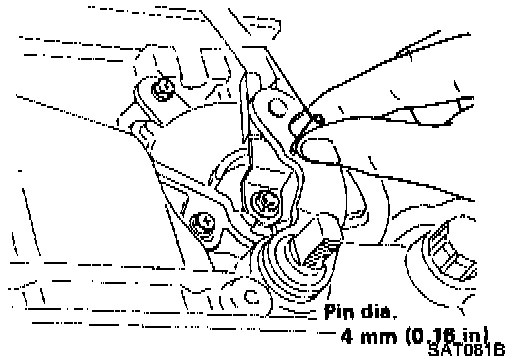

4. Insert pin into adjustment holes in both inhibitor switch and manual shaft of A/T assembly as near vertical as possible.
5. Reinstall any part removed.
6. Check continuity of inhibitor switch.
