Torque Converter Clutch Solenoid Valve Circuit
Torque Converter Clutch Solenoid Valve Circuit

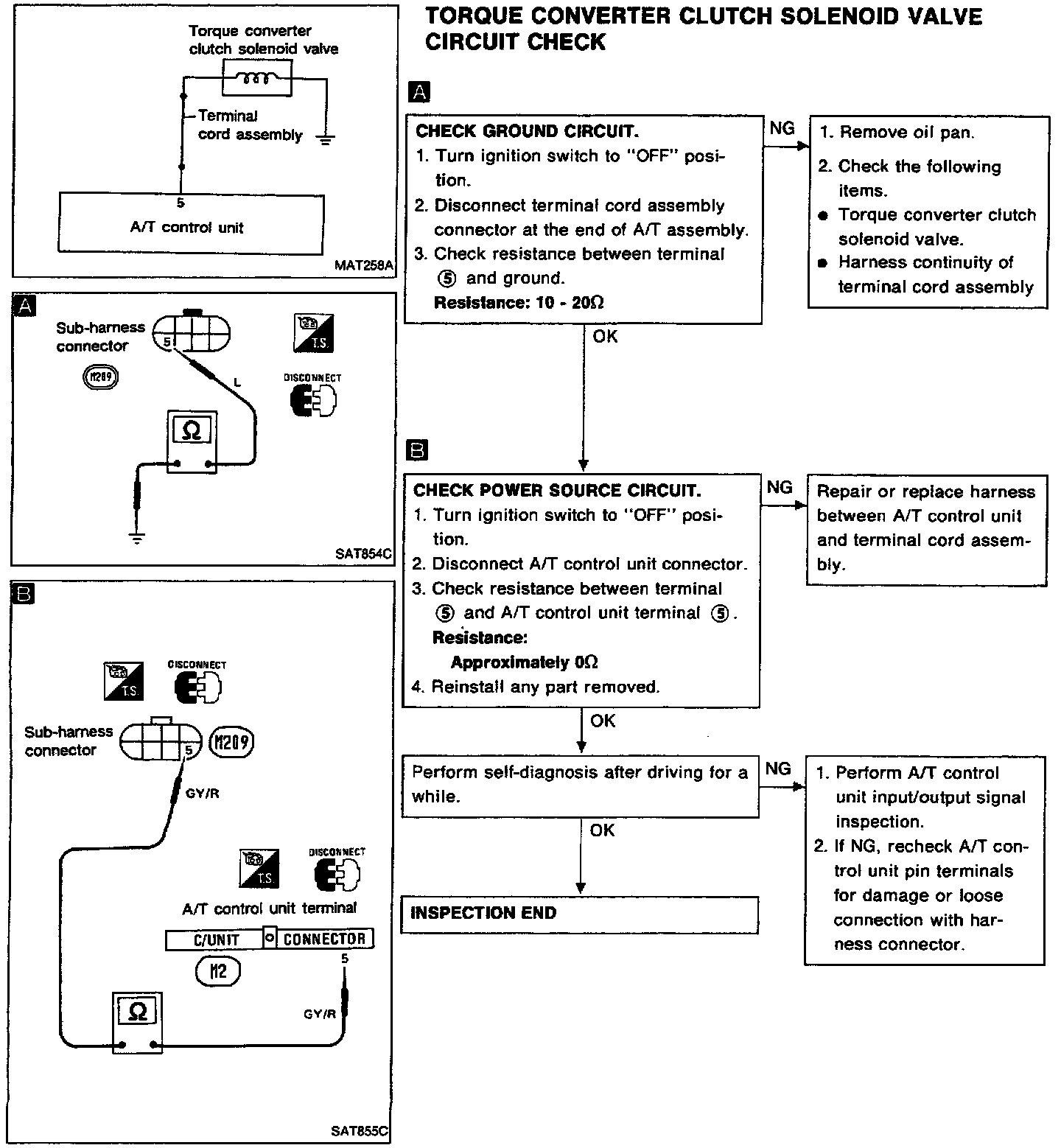

TCCSV Circuit Check:
