Valve Timing Control Solenoid (RH & LH)

VTC Solenoid Valve Harness Connector For Right Bank:




VTC Solenoid Valve Harness Connector For Left Bank:





LOCATED ON THE FRONT OF EACH CYLINDER HEAD

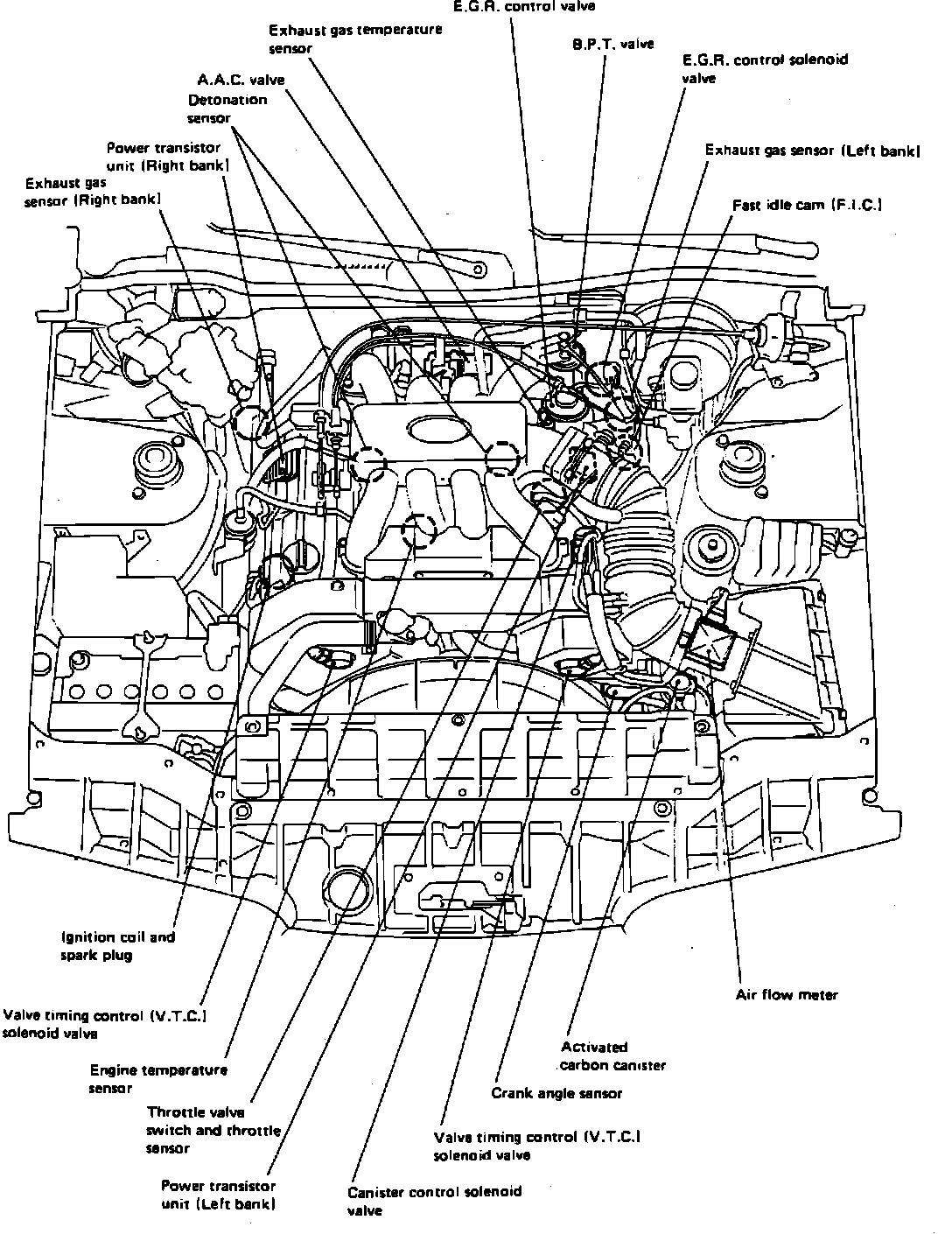

Engine & Emission Component Locations (Part 1 Of 2):

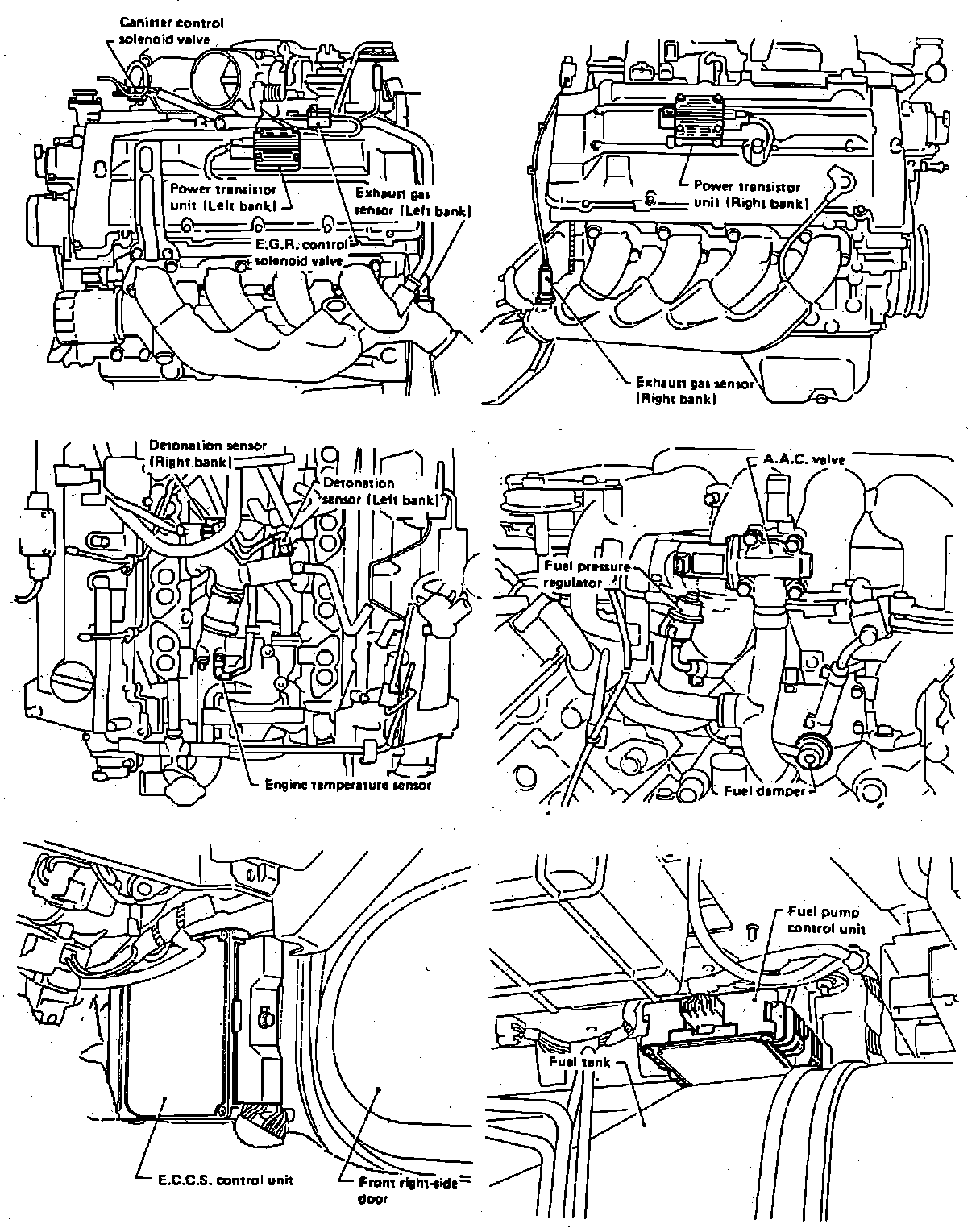

Engine & Emission Component Locations (Part 2 Of 2):





ENGINE OVERVIEW
