Non-California Models Only

PURPOSE
The self-diagnostic system is designed to help technicians fix cars faster. This is done by having ECCS Control Module (ECM) monitor certain input/outputs and store a trouble code if the ECM detects a problem.

OPERATION
The self-diagnostic system has two modes. Mode 1 is the normal operating mode for the vehicle and will turn on the "MALFUNCTION INDICATOR LAMP" if a monitored system has a fault. Mode 2 is used for self diagnostics. Both modes do different things depending whether the engine is running or not.

Test Mode 1 - For Non-California:

Mode 1:
Key On Engine Off:
^ This is the "MALFUNCTION INDICATOR LAMP" self-check. If the lamp does not illuminate in this mode, check the electrical circuit.
Engine Running:
^ This is the normal operating mode. The "MALFUNCTION INDICATOR LAMP" will illuminate only if trouble is found in certain circuits.

Red L.E.D. Flash Code Example:

Diagnostic Trouble Code Table:

Mode 2:
Key On Engine Off:
^ This is the stored codes self-diagnostic mode. Trouble codes will be extracted in this mode.
Engine Running:
^ When the engine is running it is used to monitor the air/fuel mixture and Oxygen Sensor operation.

HEATED OXYGEN SENSOR MONITOR

Heated Oxygen Sensor Test Table:

OPERATION
In this mode, the Malfunction Indicator Lamp and Red LED display the condition of the fuel mixture (lean or rich) which is monitored by the heated oxygen sensor.
If two heated oxygen sensors (right bank and left bank) are fitted on the engine, the left bank heated oxygen sensor monitor operates first, when selecting this mode.

SWITCHING FROM LEFT BANK TO RIGHT BANK
1. Turn diagnostic test mode selector on the ECCS Control Module fully clockwise.
2. Wait at least 2 seconds.
3. Turn diagnostic test mode selector on the ECCS Control Module fully counterclockwise.
^ These procedures should be carried out when the engine is running.

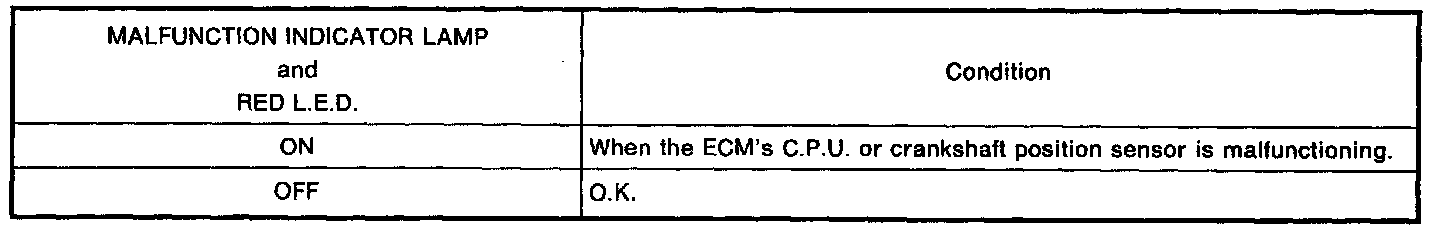

Malfunction Lamp Operation:

HOW TO CHECK HEATED OXYGEN SENSOR
1. Set Diagnostic Test Mode II.
2. Start engine and warm it up until engine coolant temperature indicator points to the middle of the gauge.
3. Run engine at about 2,000 rpm for about 2 minutes under no-load conditions.
4. Make sure Red LED or Malfunction Indicator Lamp goes ON and OFF more than 5 times every 10 seconds; measured at 2,000 rpm under no-load.
