Valve Timing Control Circuit

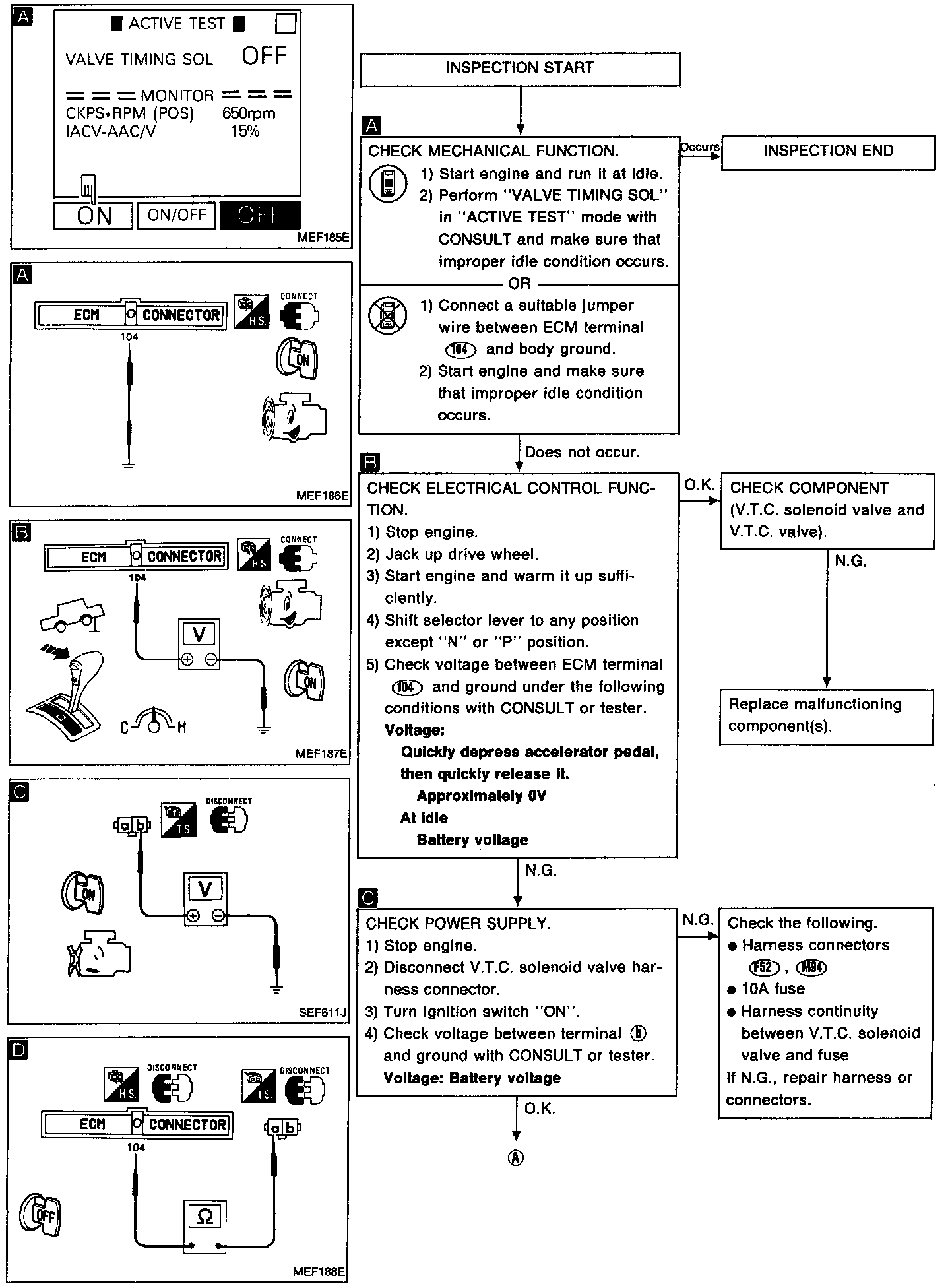

VTC Non-DTC Chart:

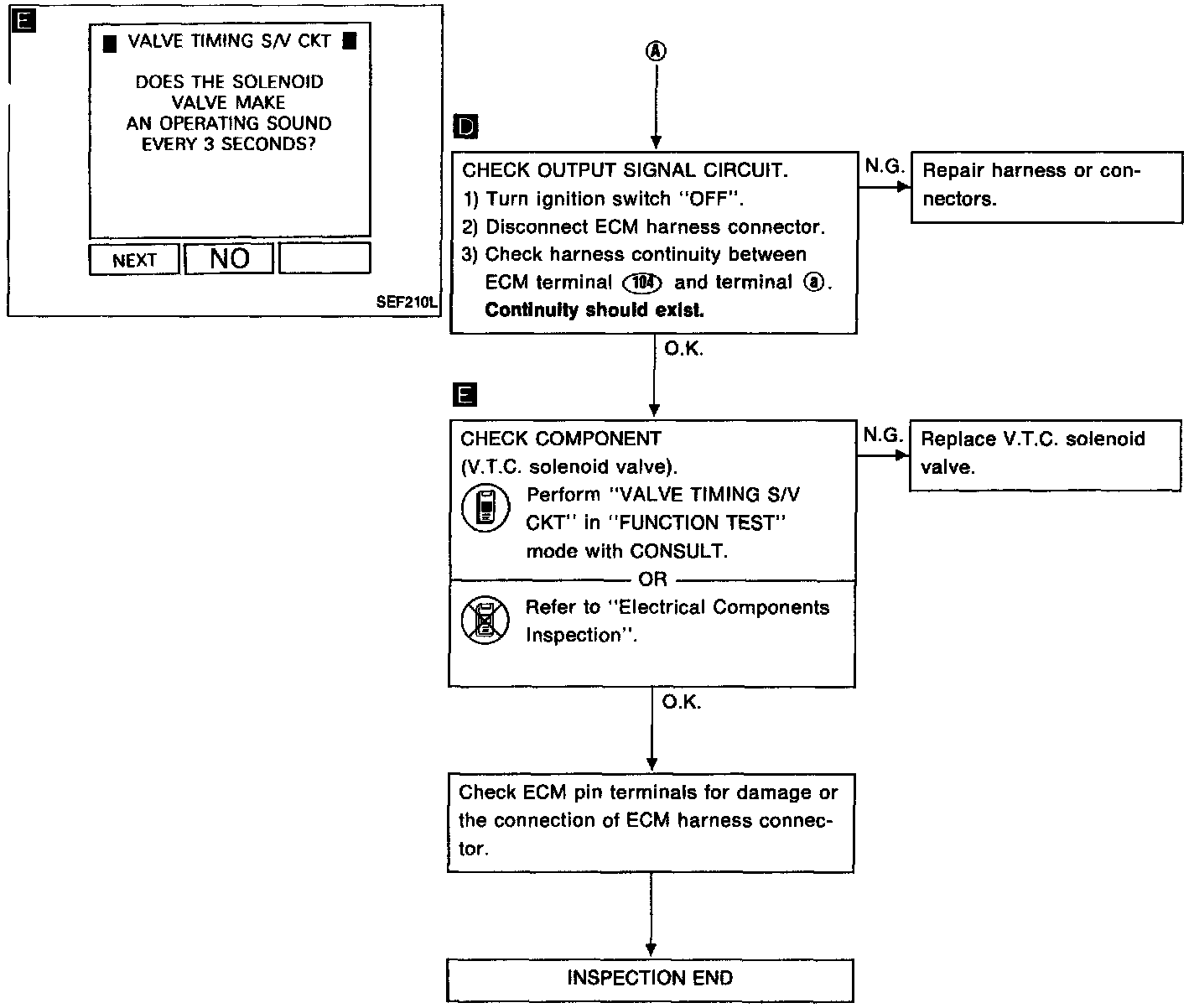

VTC Non-DTC Chart:




DIAGNOSTIC CHART

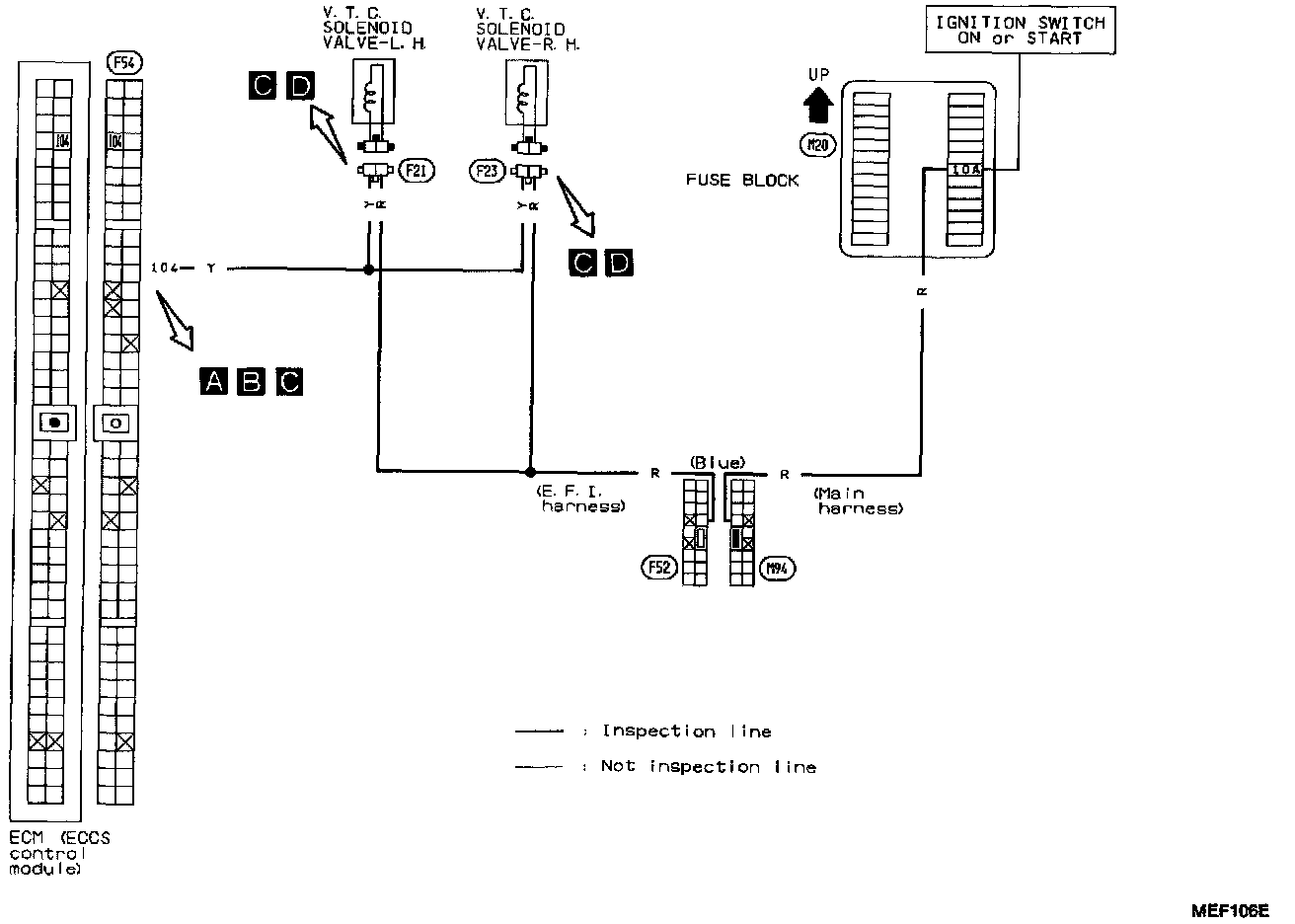

VTC Diagram:




CIRCUIT DIAGRAM

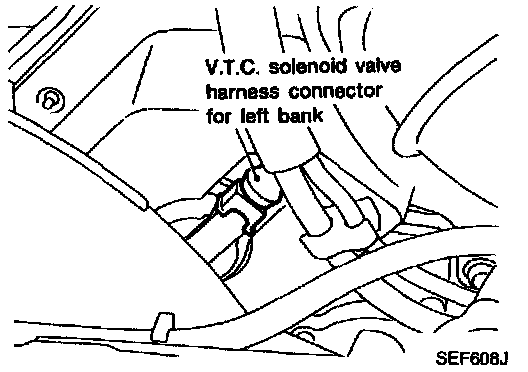

Left VTC Harness Connector:

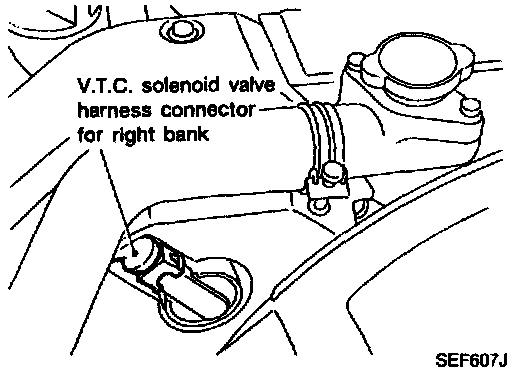

Right VTC Harness Connector:




HARNESS LAYOUT
