Hydraulic Control Assembly - Antilock Brakes: Testing and Inspection

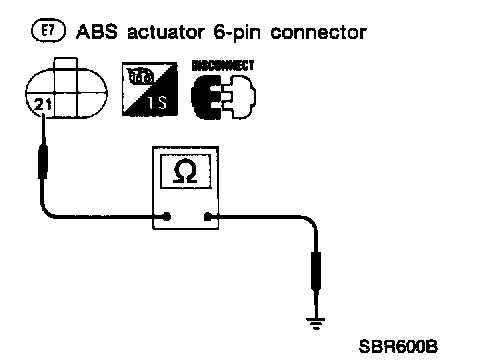

ABS ACTUATOR
Continuity should exist.

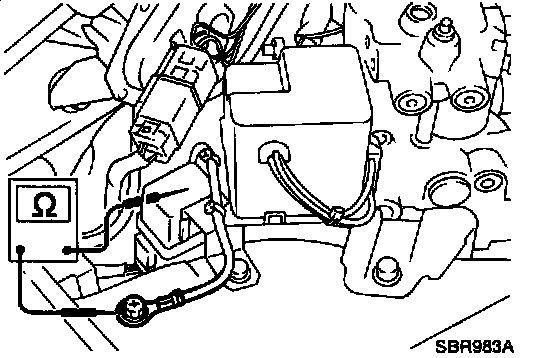

ACTUATOR MOTOR GROUND
Continuity should exist.
