Side Seat Finisher - Improved

Classification:
BF93-007

Section:
Body & Frame

Models:
1993 J30

Reference:
TECHNICAL BULLETIN ITB93-012

Date:
March 5, 1993

J30 SEAT SIDE FINISHER REPLACEMENT

APPLIED MODEL:
1993 J30

APPLIED VIN:
JNKAY21D*PM020638

APPLIED DATE:
November 12, 1992

SERVICE INFORMATION

Some J30 owners may request that the seat side finisher be replaced due to defect in materials. An improved seat side finisher is now available. The new finisher has a felt sheet on the inside plastic edge and the finisher skin thickness has been increased for improved durability.

SERVICE PROCEDURE

Install the countermeasure seat side finisher as illustrated:
(Refer to BF-52 of the Service Manual for details.)

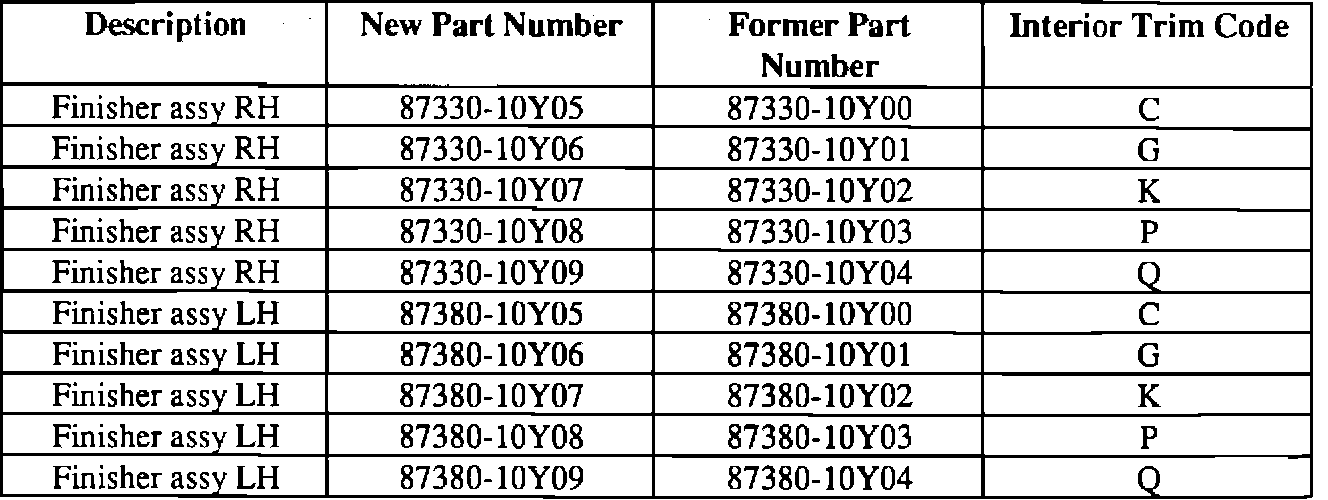

PARTS INFORMATION

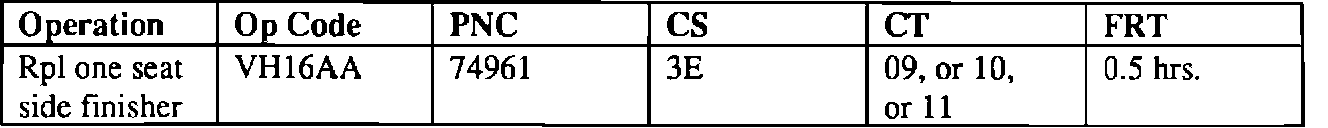

WARRANTY INFORMATION
