A/T - Remanufactured Program
Classification: AT95-01Section: Automatic Transmission
Models: See Below
Reference: TECHNICAL BULLETIN ITB95-OO3
Date: February 15, 1995
AUTOMATIC TRANSMISSION (A/T) REMANUFACTURED PROGRAM
(REAR WHEEL DRIVE)
APPLIED VEHICLES:
8/89 Current Q45 (G5O)
8/89 - 1/92 M3O (F31)
1/92 - Current J30 (JY32)
SERVICE INFORMATION
This bulletin provides guidelines regarding the Remanufactured Rear Wheel Drive Automatic Transmission Program. This bulletin applies to all rear wheel drive automatic transmission incidents that require removal and repair or replacement of:
Internal parts such as: bands, bearings, clutches, gears, oil pumps, servos, shafts, washers and etc.; or
External case members such as: the extension housing or the main housing.
Replacement of remanufactured units will include the torque converters.
NOTE:
Only NissanMatic "D" Automatic Transmission Fluid is authorized for use in performing warranty, service contract or goodwill repairs or other repairs to Infiniti vehicles to be paid by Infiniti.
Infiniti will not reimburse dealers for use of non-genuine Nissan automatic transmission fluid for such repairs.
SERVICE PROCEDURE
CAUTION:
If you can trace a transmission incident to an electronic control or wiring problem, then make these repairs before any further diagnosis attempts. Always perform self-diagnosis first if CONSULT compatible.
When a customer experiences a potential transmission incident, please do the following:
1. Road test the vehicle with the customer. Verify the complaint and symptoms.
2. Determine the frequency or regularity of the symptoms the customer senses.
3. Based on the information from steps 1 and 2, fill out a transmission diagnosis check sheet before any further action is taken.

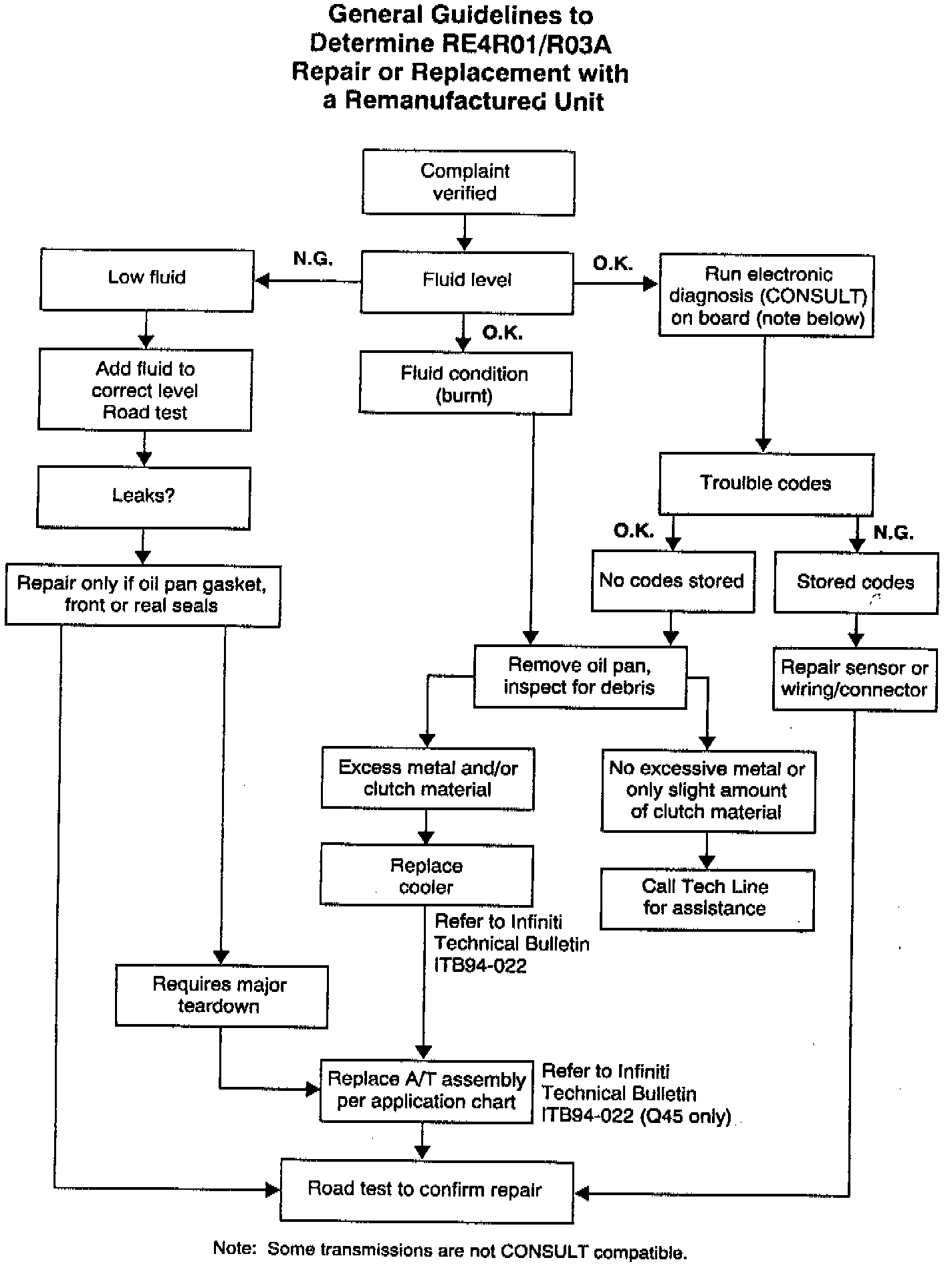

4. Once the incident is verified, follow the procedures on the chart.
CLAIM INFORMATION
Please reference Nissan Warranty Bulletin NWB/95-002 "REMANUFACTURED TRANSMISSION ASSEMBLIES FOR WARRANTY GOODWILL AND NISSAN EXTENDED PROTECTION PLAN REPAIRS" for claims coding details.

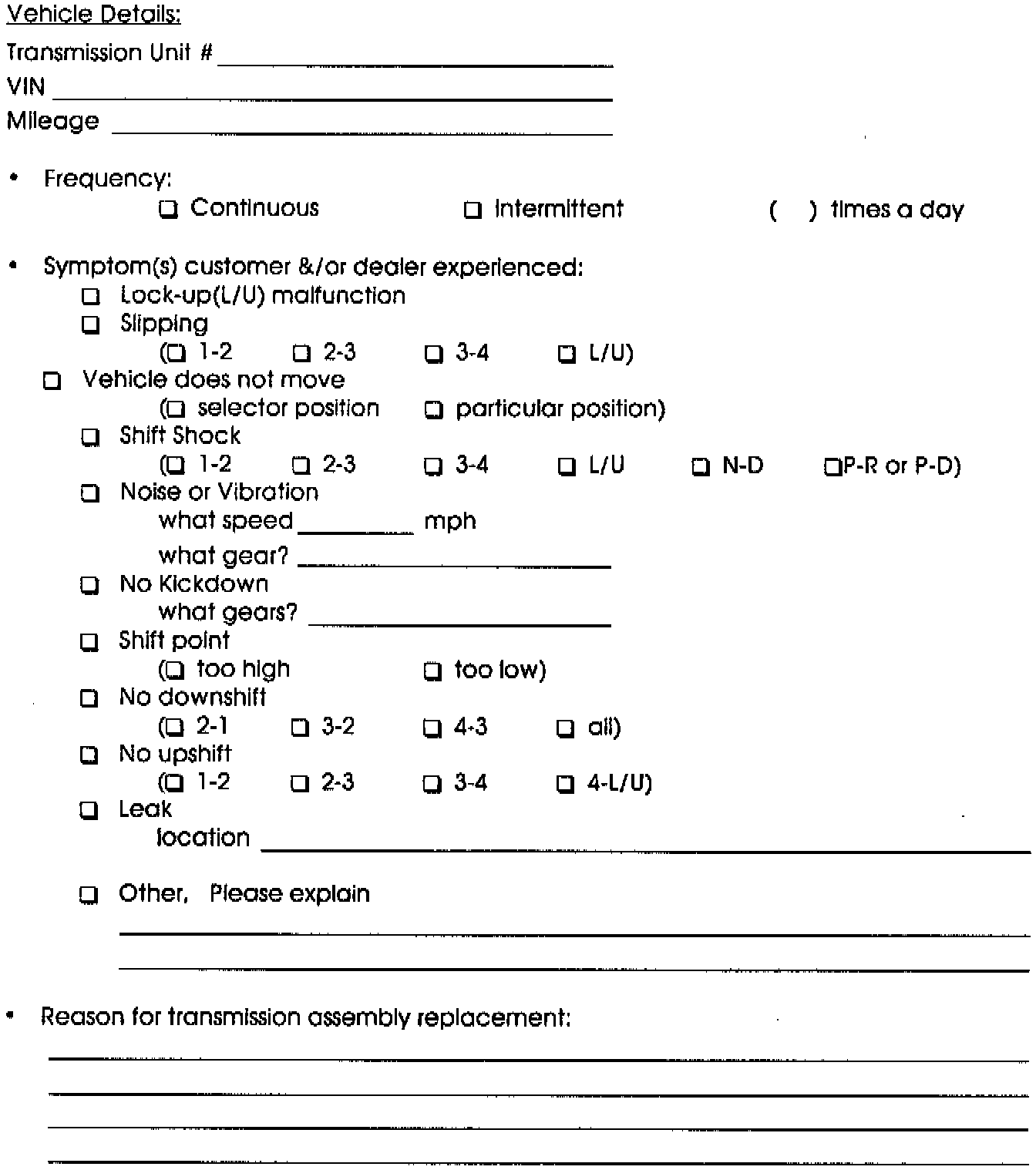

REMANUFACTURE A/T DIAGNOSIS CHECK LIST
Please print illustrated Check List. Fill out this form and place it in the box along with the returned transmission. This information will help engineering by accelerating investigations for identifying new incidents, durability issues, and confirmed countermeasure effectiveness. Thank you for taking the time to fill this out.
