A/C System - Refrigerant/PAG Oil Capacities

Classification:
HA95-005

Reference:
ITB95-041

Date:
July 5, 1995

R134a CHARGE AMOUNTS/PAG LUBRICANT CHART

APPLIED VEHICLE: All equipped with R134a A/C systems

SERVICE INFORMATION

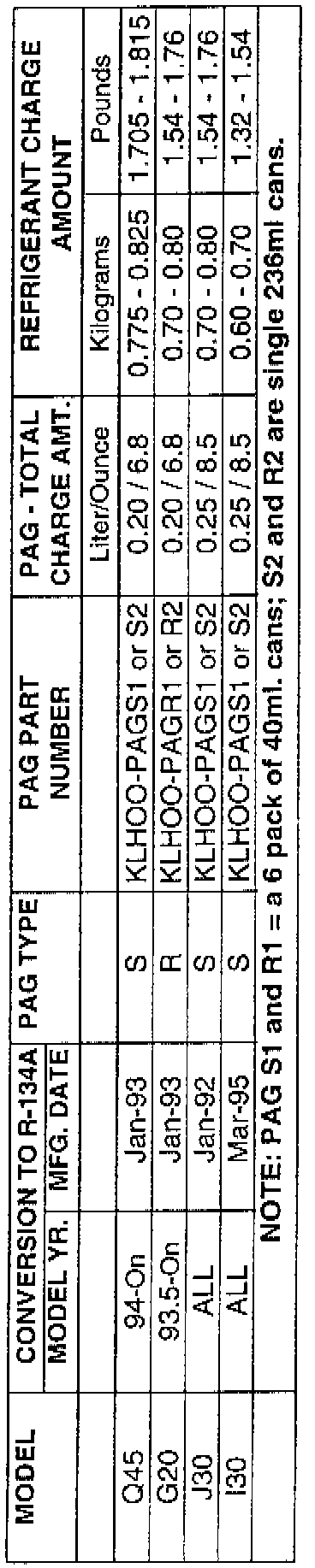

For reference, the chart has been prepared. (see illustration) It contains information by vehicle model and year regarding A/C systems conversion dates to R-134a type systems. Please note. the dates shown indicate the conversion date at the manufacturing level. not on dealer installed units.

Additionally the PAG lubricant type, part numbers and system recharge amounts are listed for each model.
