A/C System - PAG Oil/Refrigerant Quantity Chart

Classification:
HA96-006

Reference:
ITB96-007

Date:
January 17, 1996

R134A CHARGE AMOUNT/PAG LUBRICANT CHART

APPLIED VEHICLE:
All models equipped with R134a A/C system

SERVICE INFORMATION

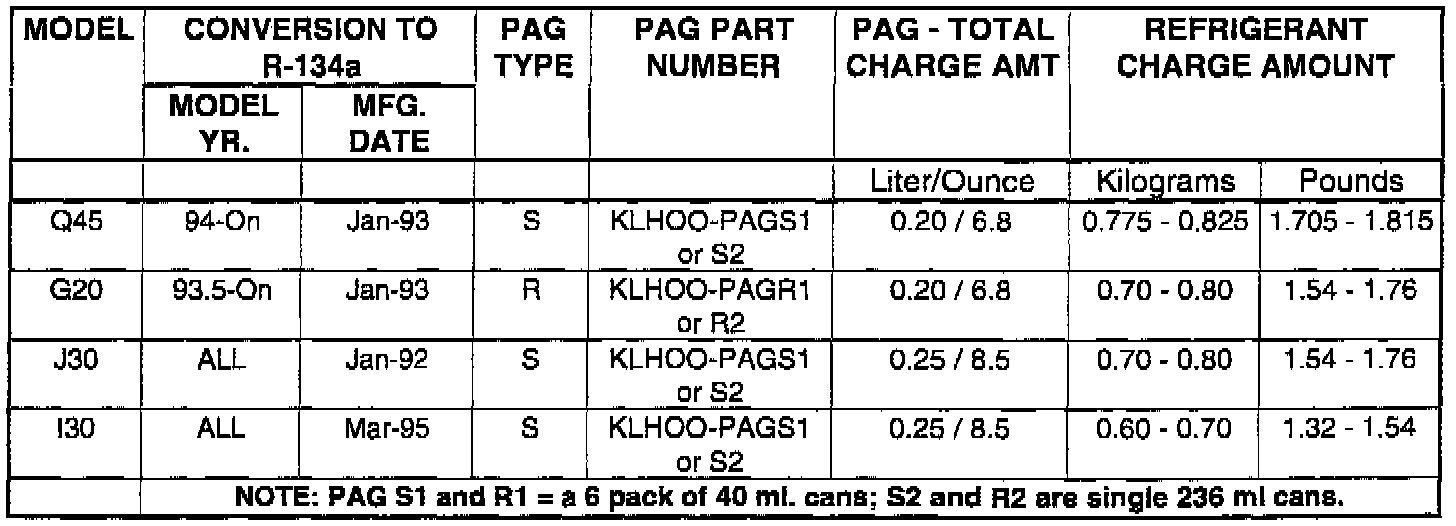

For reference, the laminated chart and the chart contain information by vehicle model and year regarding A/C system conversion dates to R134a type systems. Please note, the dates shown indicate the conversion date at the manufacturing level, not on dealer installed units.

Additionally the PAG lubricant type, part numbers and system recharge amounts are listed for each model.

Attach the laminated chart to the ACR4 refrigerant recovery/recycling machine using a suitable nylon tie.
