A/C - Temperature Fluctuation

Classification: HA94-001a
Section: Air Conditioner
Models: 1993 J30
Reference: TECHNICAL BULLETIN ITB94-020a
Date: May 3, 1994

J30 (JY32) A/C TEMPERATURE FLUCTUATION
This Bulletin contains corrected Warranty information. Please discard the original copy.

APPLIED MODEL:
1993 J30

APPLIED VIN:
See table below

APPLIED DATE:
July 29, 1993

SERVICE INFORMATION

Some customers may complain of intermittent periods of hot and humid air during "Auto" A/C operation. The following improvements to the A/C system have been made:

1. "Set values" of the expansion valve.
2. Revised control logic for the air mix actuator.

SERVICE PROCEDURE





If this incident occurs, remove and replace the parts required (see table), by matching the incident vehicles VIN. When replacing the expansion valve, remember to insulate the valve assembly using A/C thermal tape. The tape will insulate the expansion valve for thermal operation and also reduce the audible hiss. The thermal tape is usually available at any local A/C part/service shop.

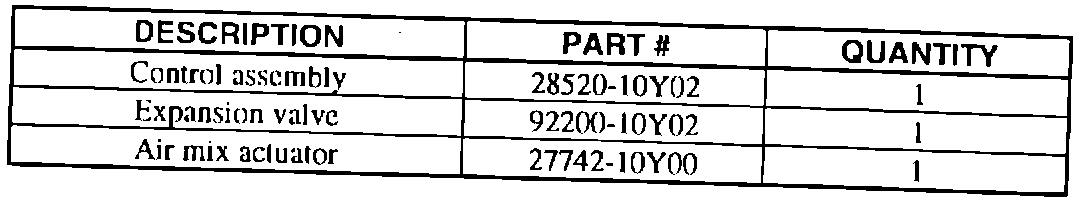

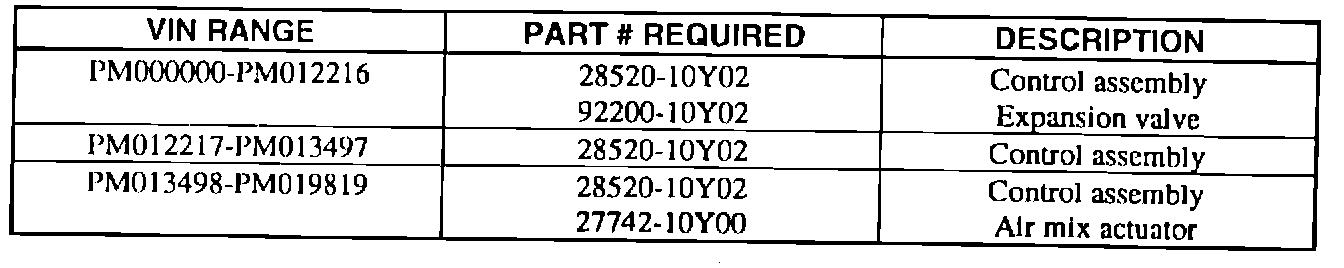

PARTS INFORMATION

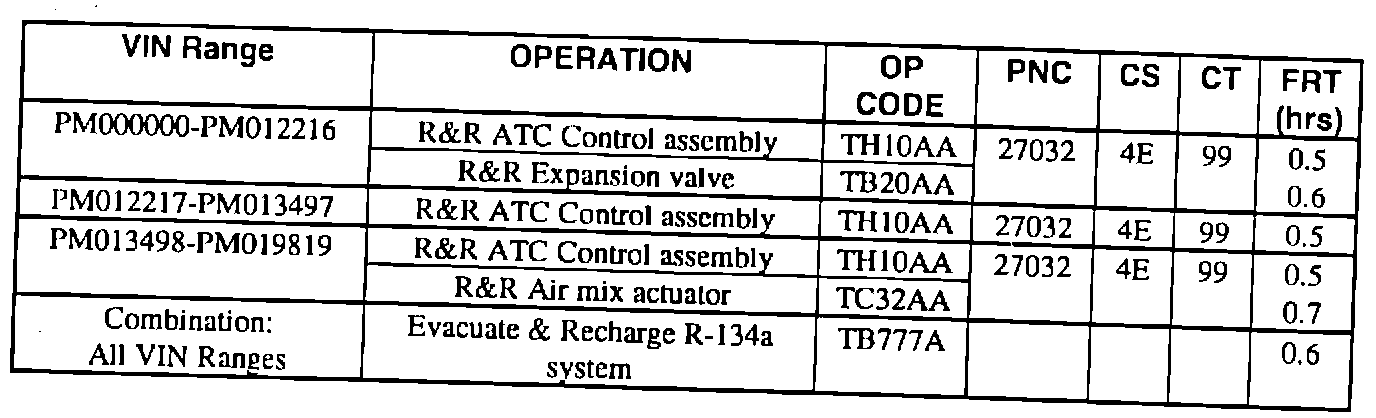

WARRANTY INFORMATION
