Disassembly

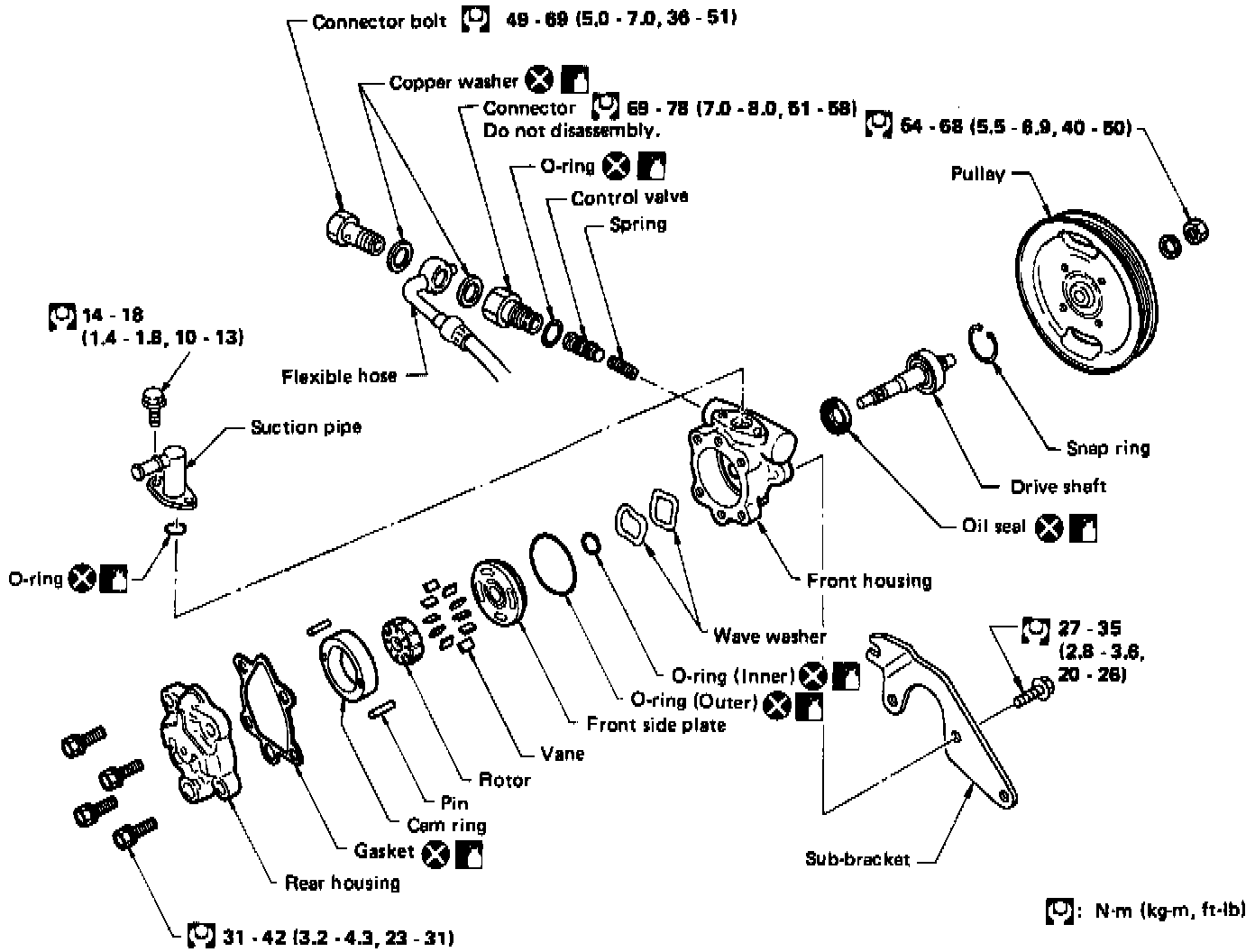

Fig. 15 Exploded view of power steering pump:

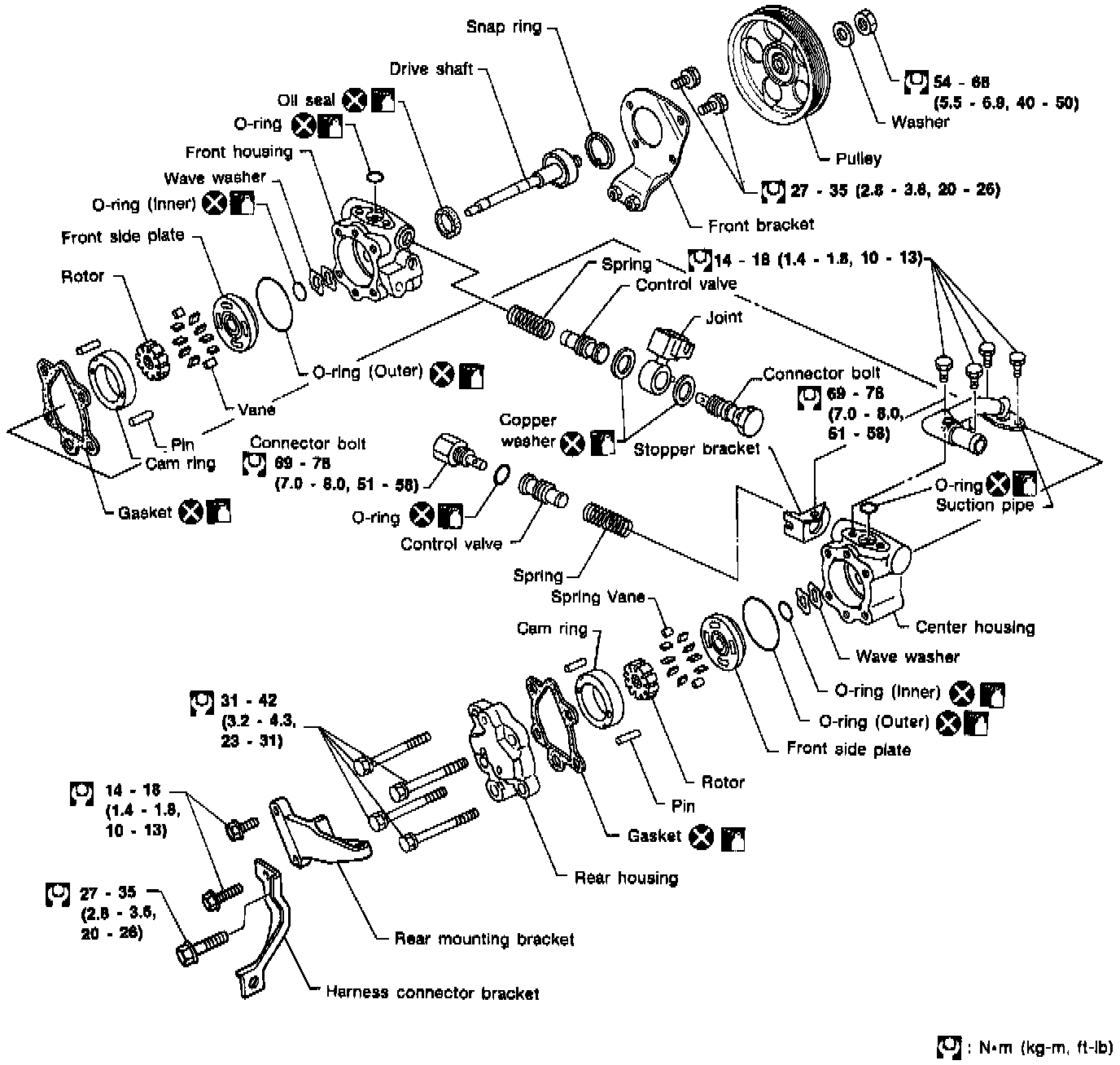

Fig. 16 Exploded view of power steering pump:

Refer to Fig. 15 when disassembling power steering pump.
On models with four wheel steering Super HICAS system, refer to Fig. 16 when disassembling power steering pump.
