Fuel Injector Circuit

Injector Circuit (Not Self-Diagnostic Item):




Injector Circuit (Not Self-Diagnostic Item):

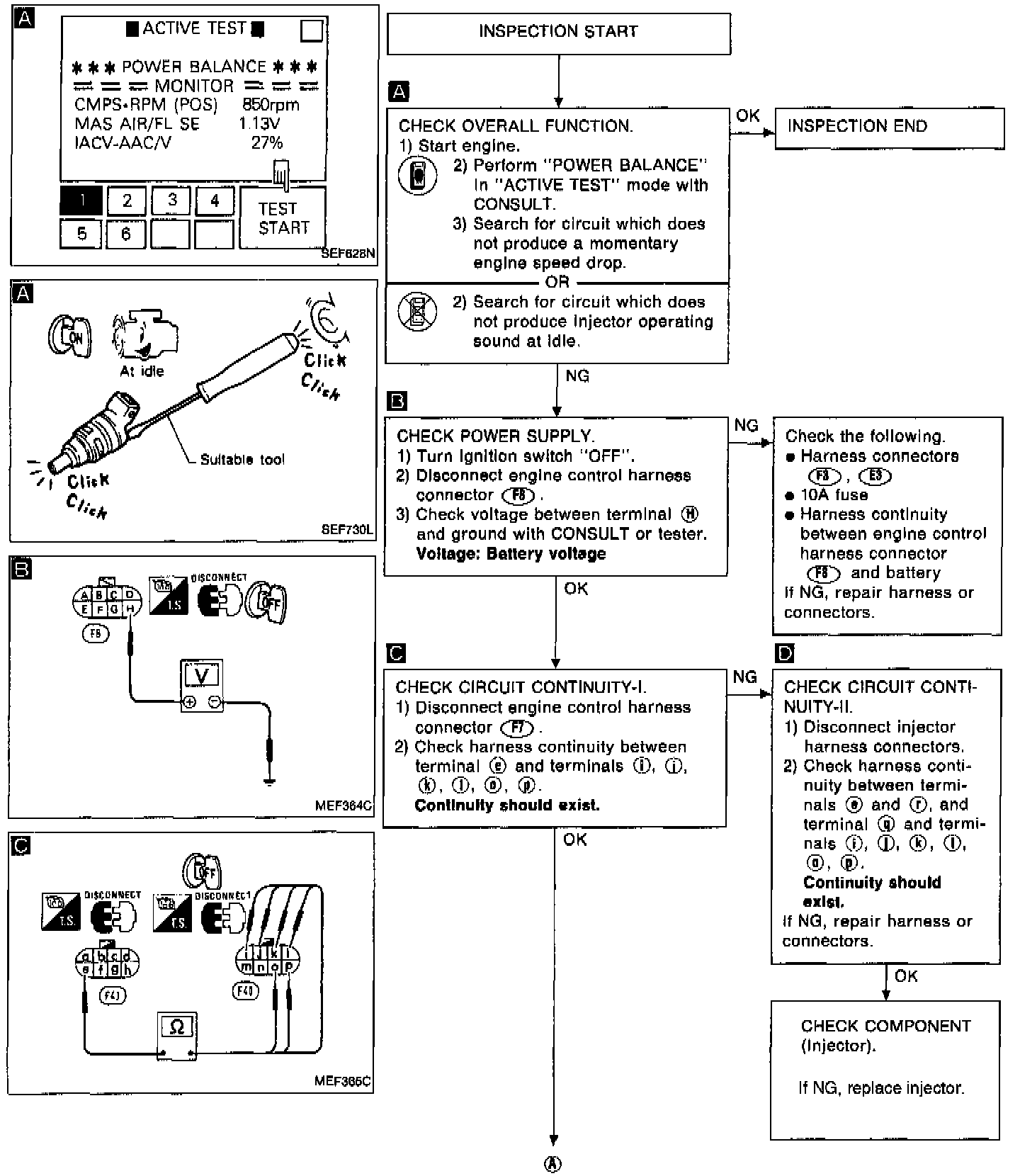

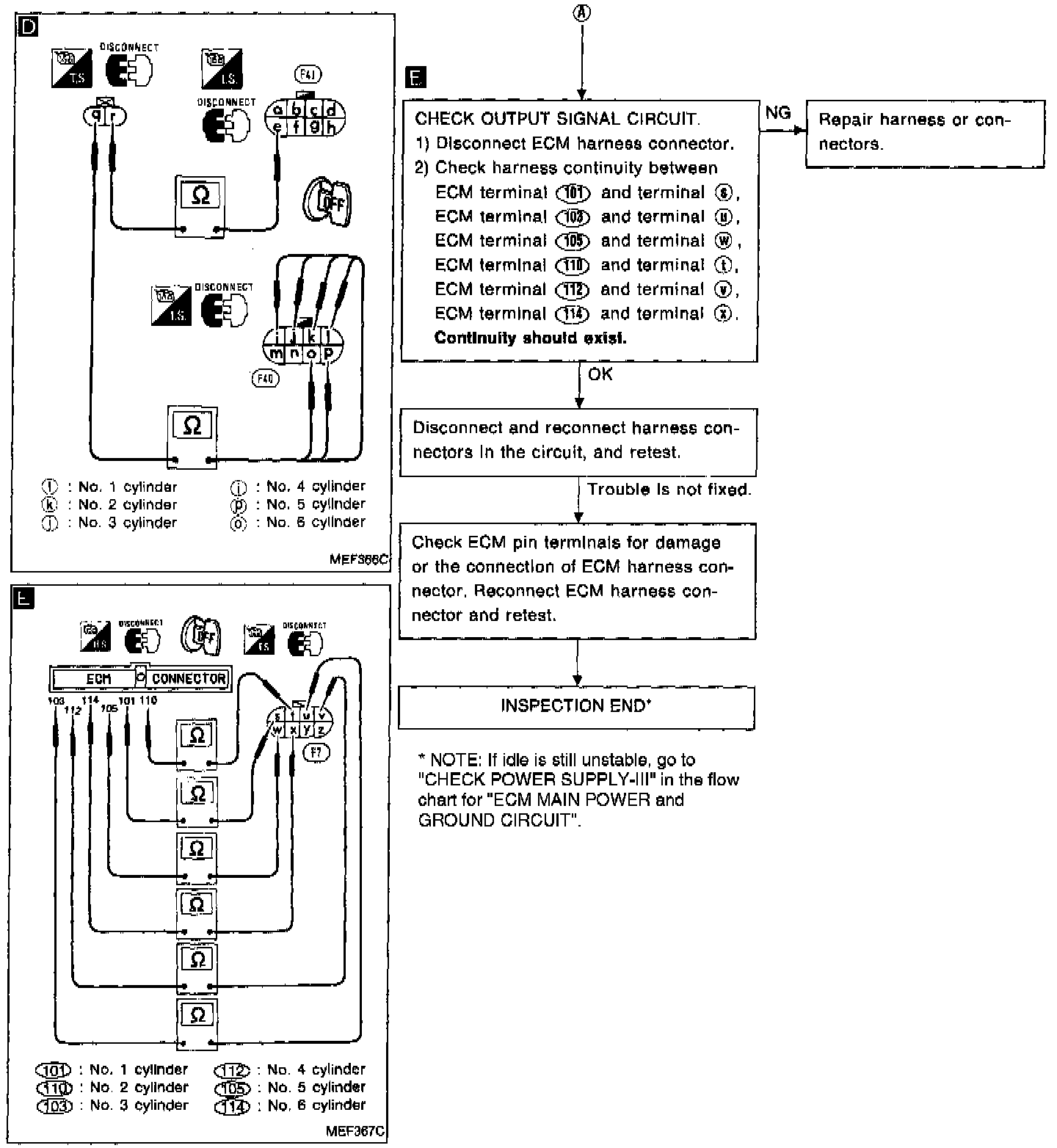

DIAGNOSTIC CHART

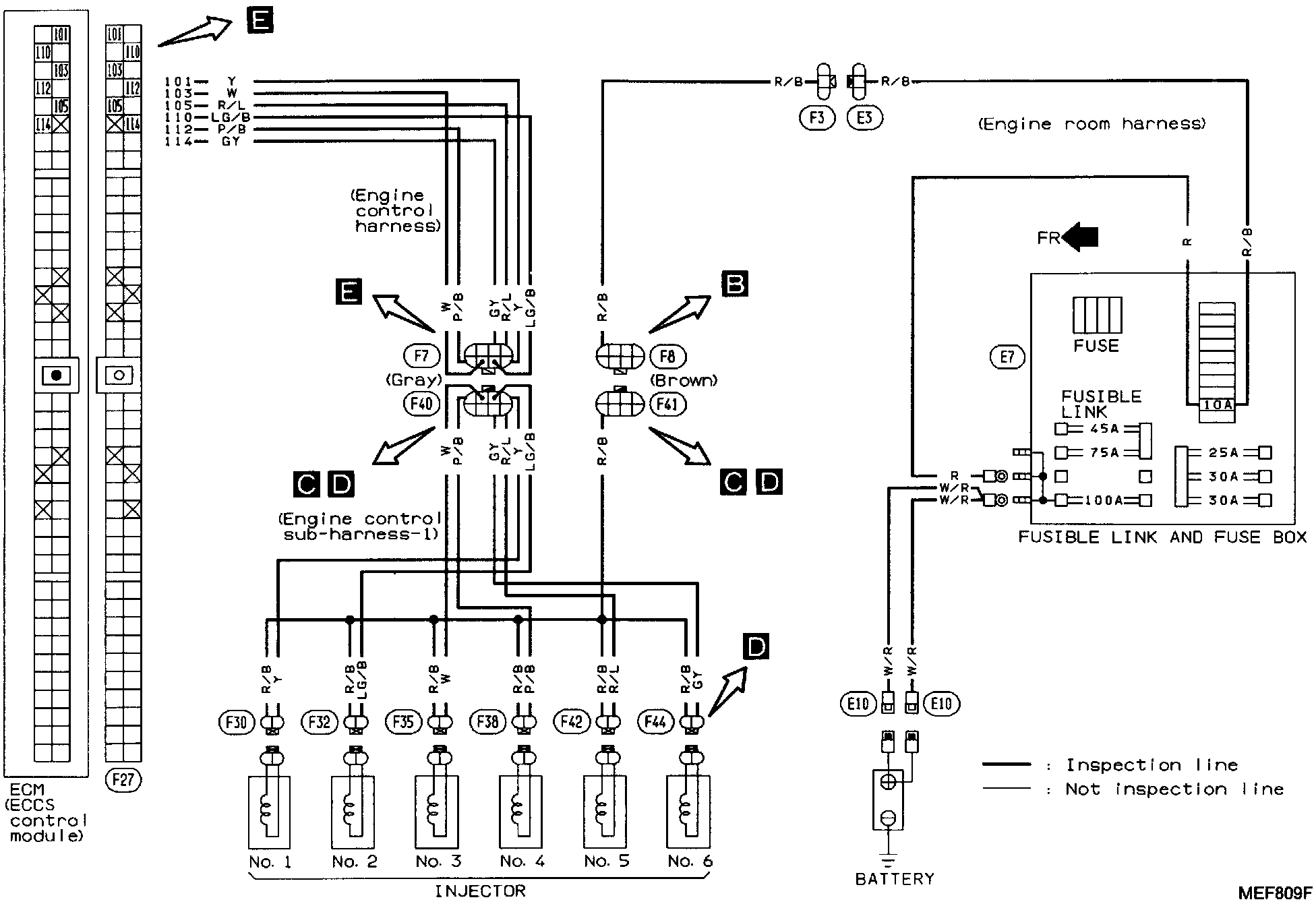

Circuit Diagram:





CIRCUIT DIAGRAM


Harness Layout:











HARNESS LAYOUT
