Component Locations

Fuel Rail Components:

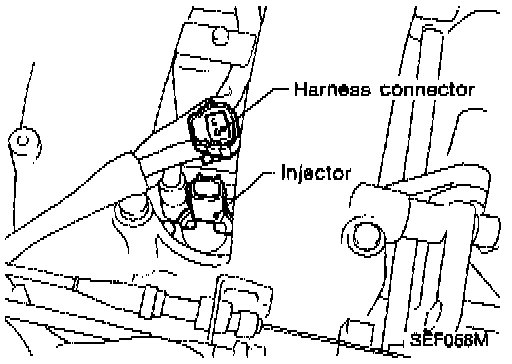

Fuel Injector And Connector:

FUEL INJECTORS
Located in the fuel rail under the intake collector.

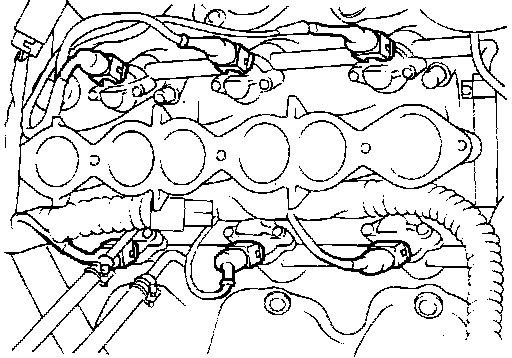

Fuel Injectors And Injector Terminals Locations:

NOTE: Intake collector has been removed in this image.
