Infiniti
>>
1993
>>
J30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum Schematics
Vacuum Schematics

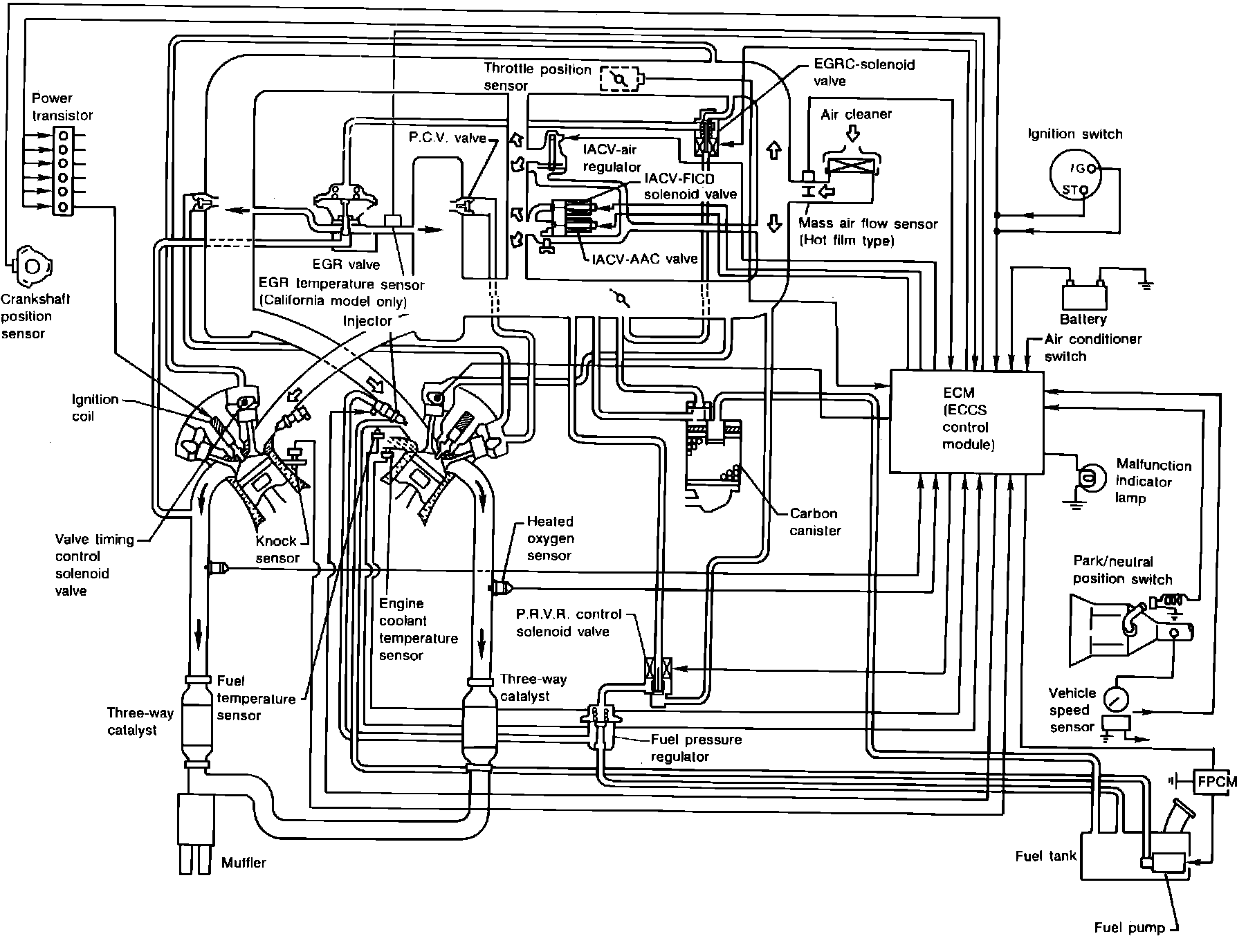

Computer And Emission Control Circuit Diagram:
