Valve Timing Control (VTC) Solenoid Valve Circuit

Valve Timing Control Circuit (Not Self-Diagnostic Item):




Valve Timing Control Circuit (Not Self-Diagnostic Item):

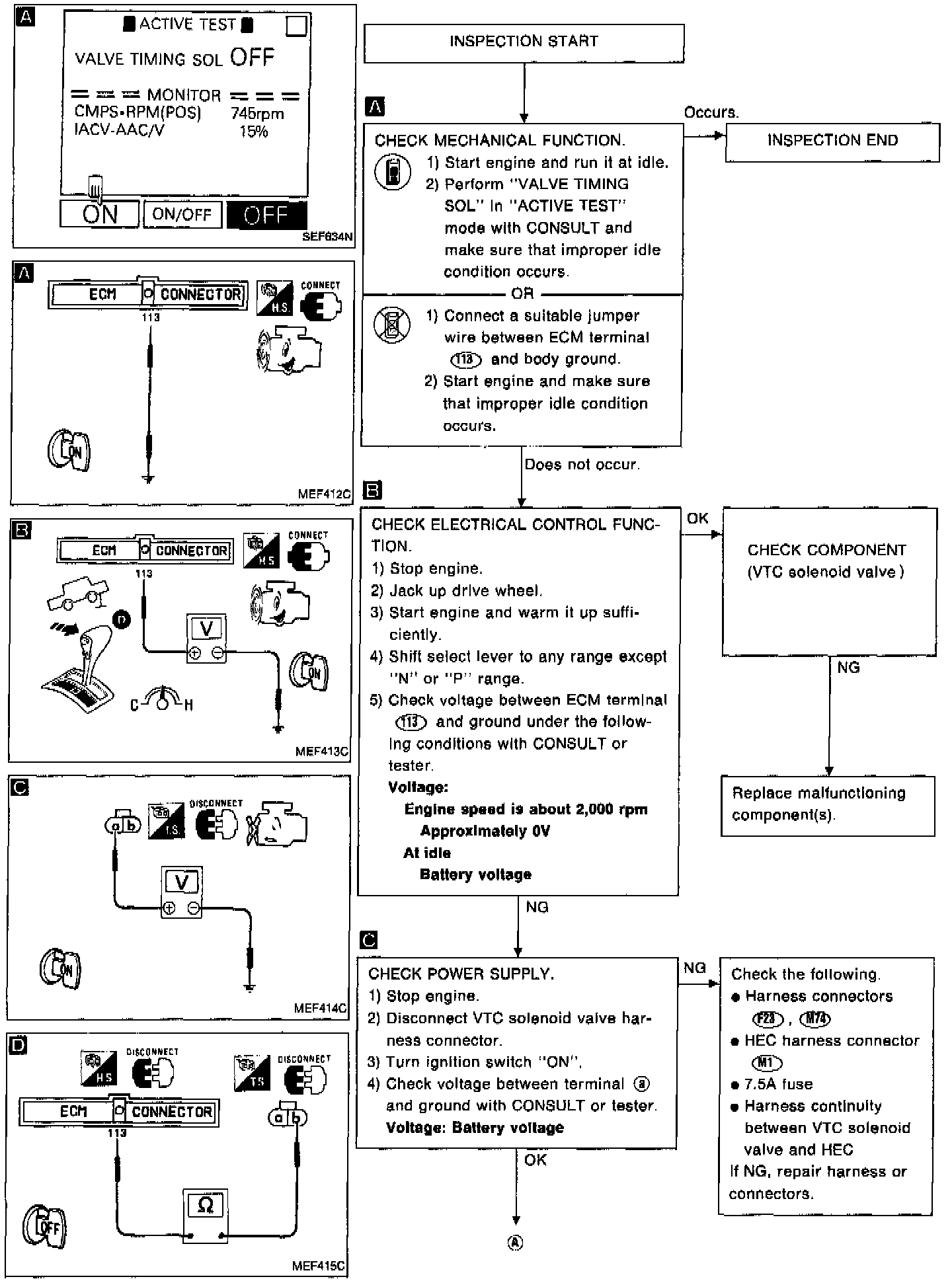

DIAGNOSTIC CHART

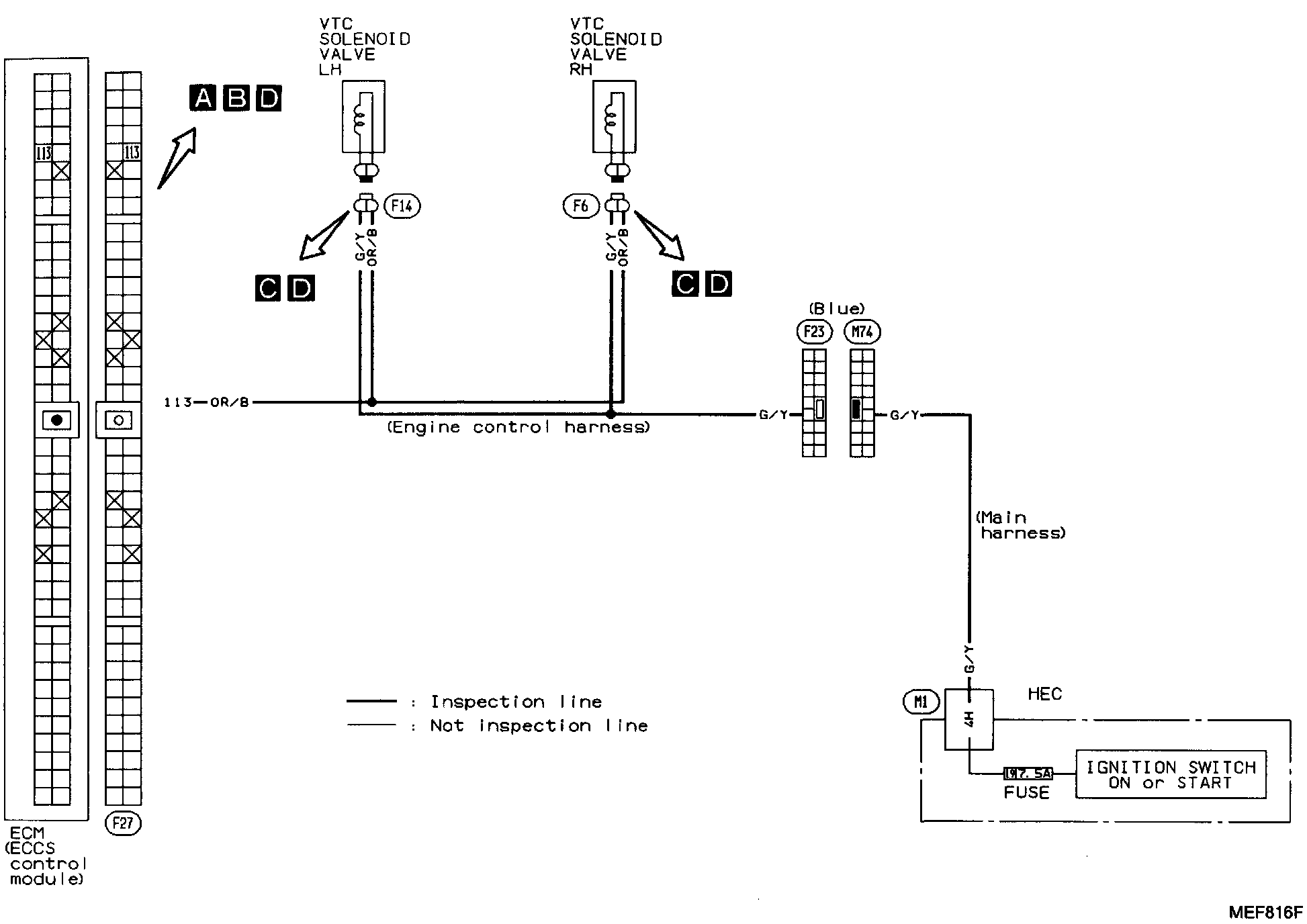

Circuit Diagram:





CIRCUIT DIAGRAM

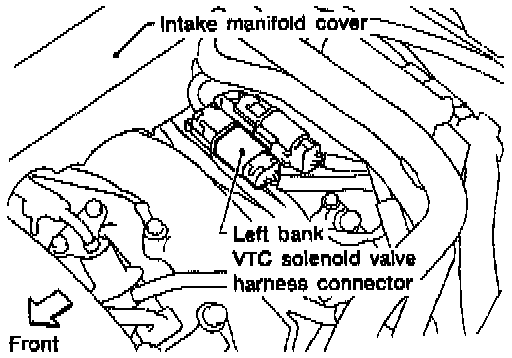

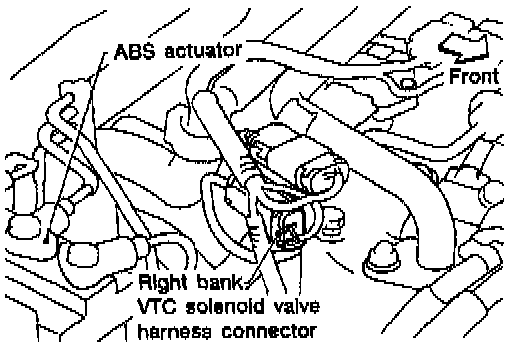

Harness Layout:











HARNESS LAYOUT
