Home
>>
Infiniti
>>
1993
>>
J30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Diagrams
>>
Electrical Diagrams
>>
Non-Trouble Code Diagram
Non-Trouble Code Diagram

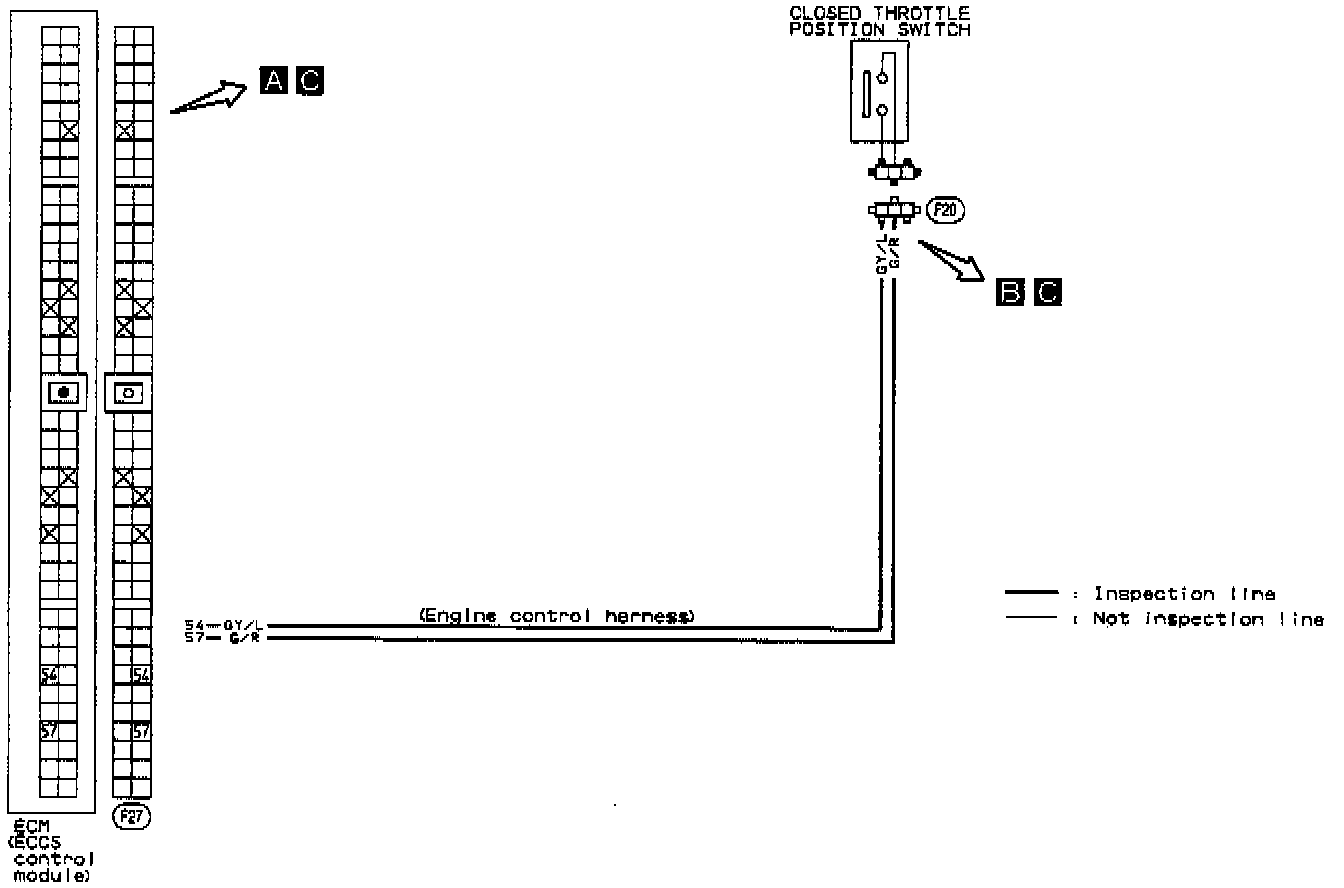

WIRING DIAGRAM
