Heated Oxygen (O2) Sensor, LH and RH, Heater Circuit
Heated Oxygen (O2) Sensor, LH and RH, Heater Circuit
Heated Oxygen Sensor, Heater Circuit (Not Self-Diagnostic Item):
DIAGNOSTIC CHART

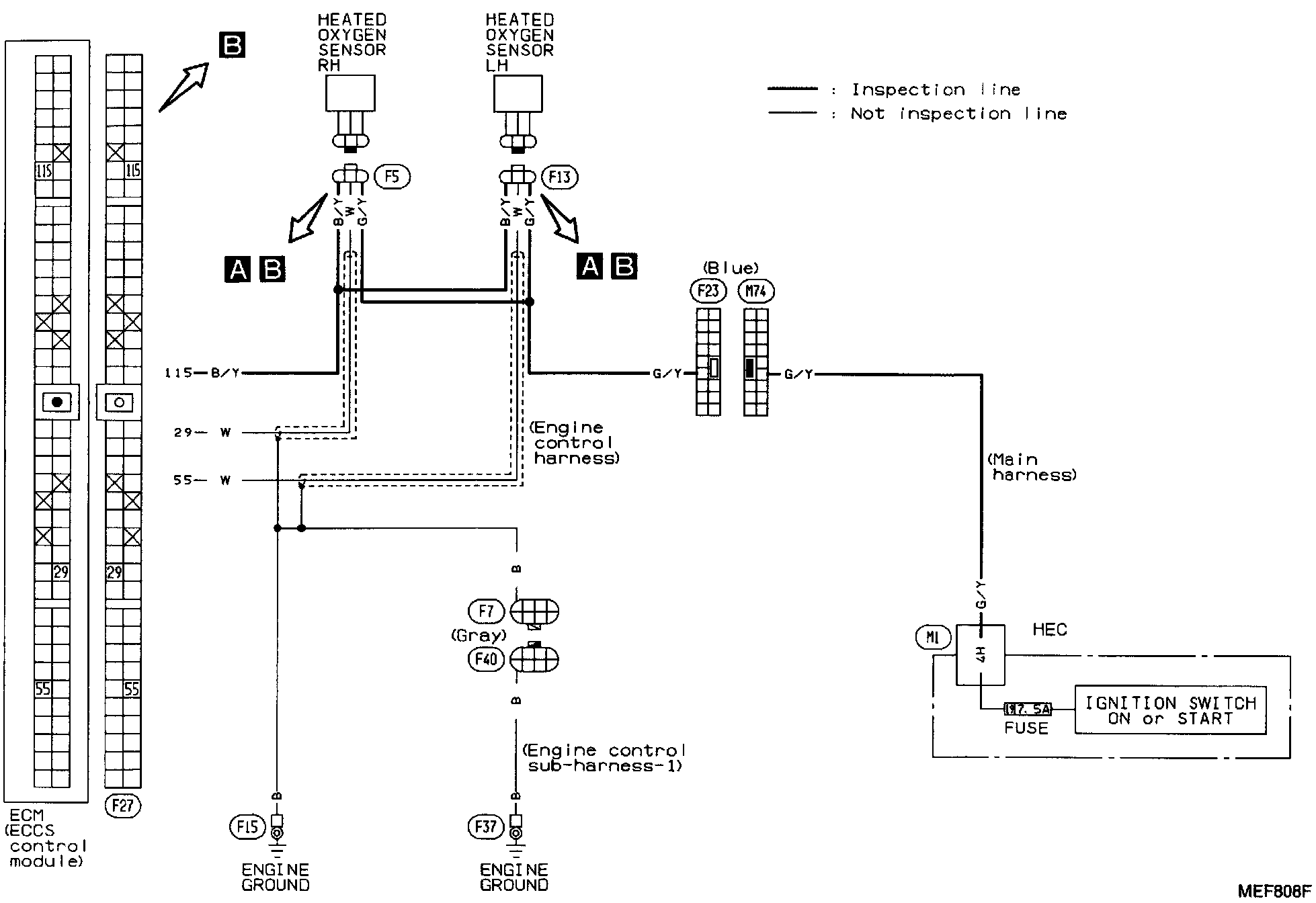

Circuit Diagram:
CIRCUIT DIAGRAM

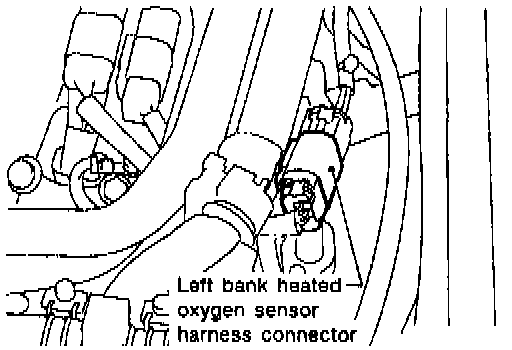

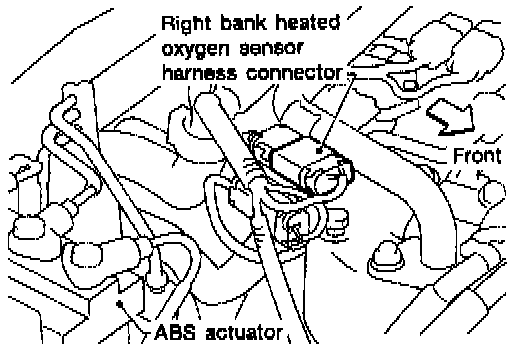

Harness Layout:
HARNESS LAYOUT
