Idle Air Control Valve - Fast Idle Control Device (IACV-FICD)
>>
Diagnostic Procedure
Diagnostic Procedure
IACV-FICD Valve (Not Self-Diagnostic Item):
IACV-FICD Valve (Not Self-Diagnostic Item):

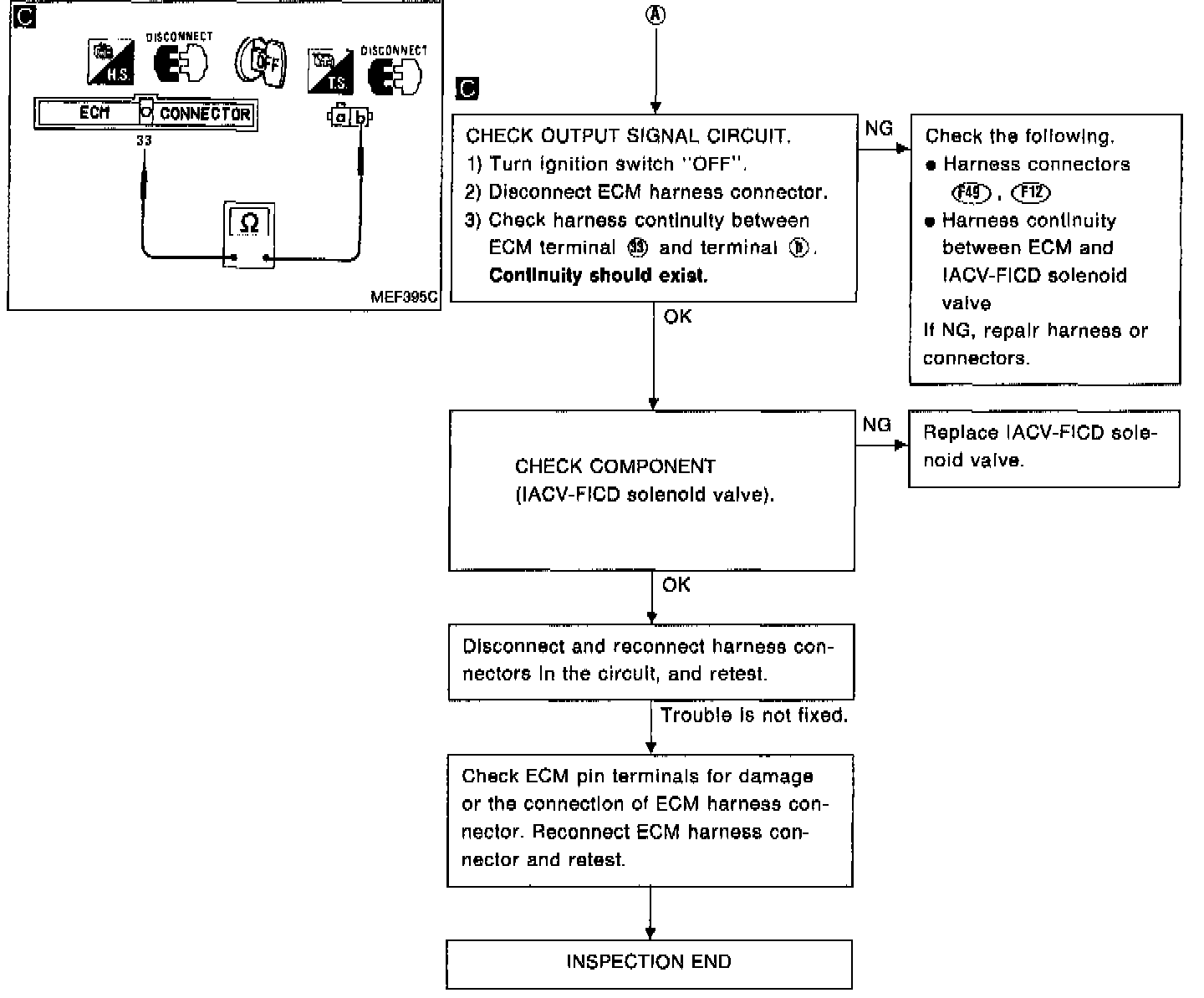

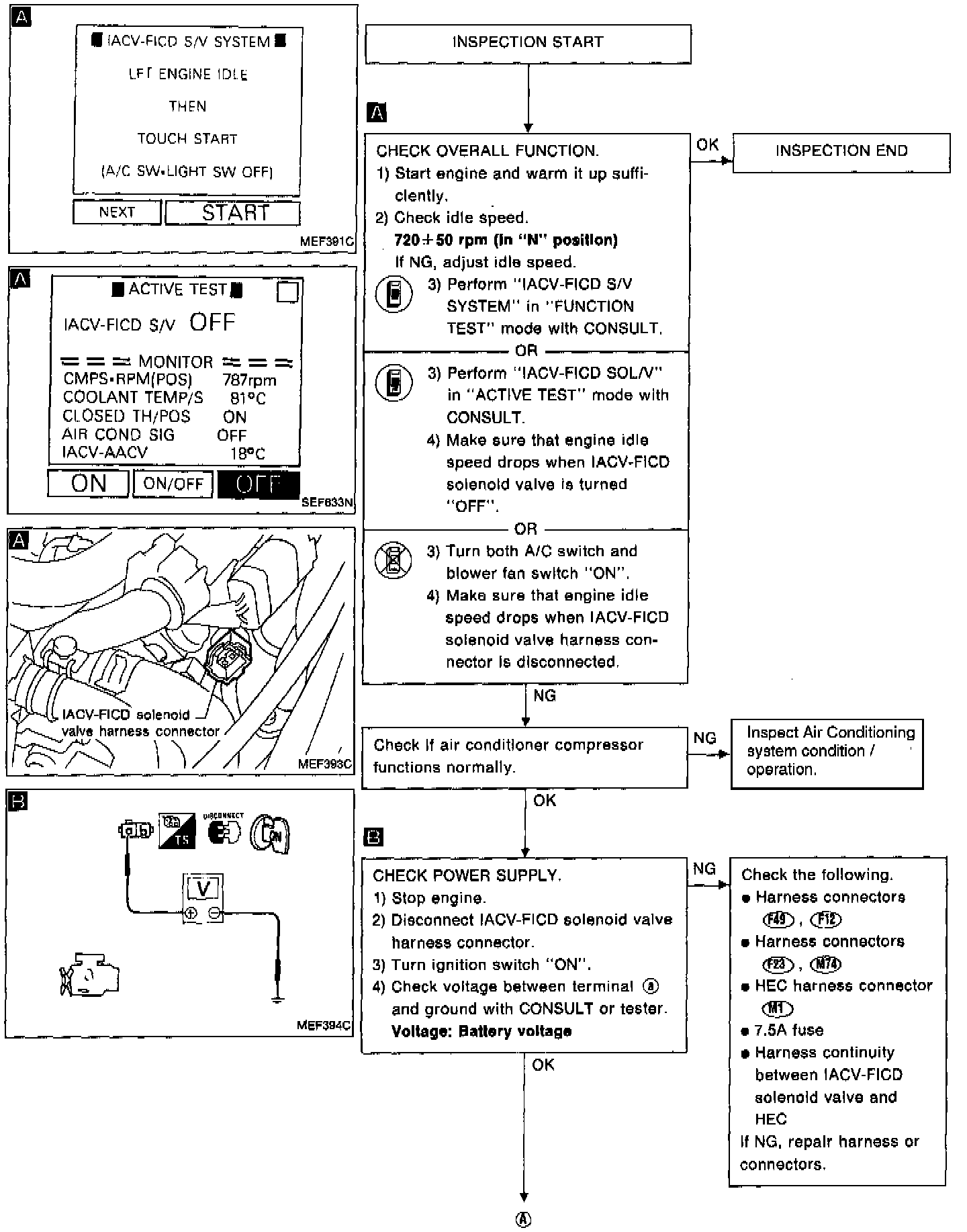

DIAGNOSTIC CHART

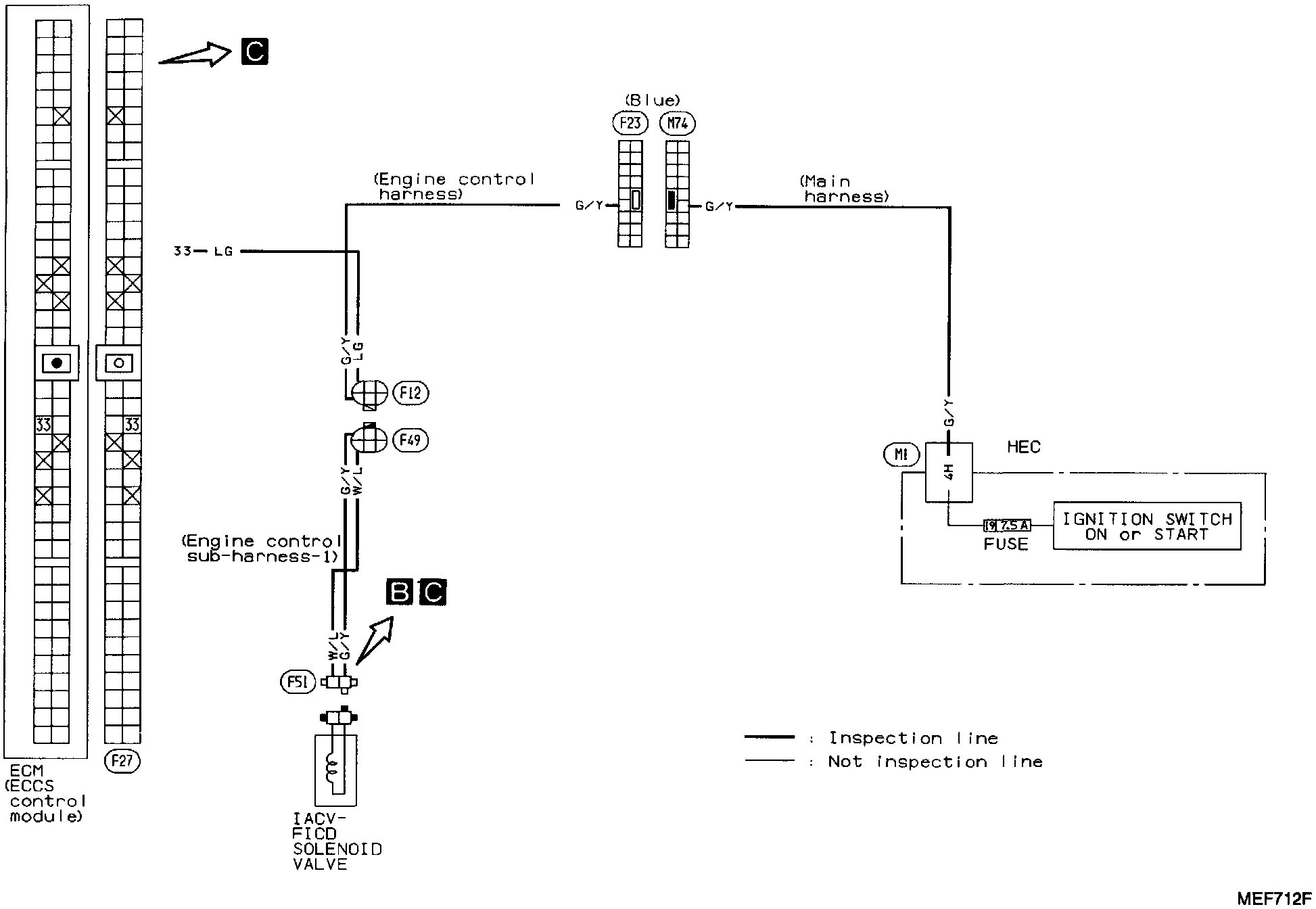

Circuit Diagram:
CIRCUIT DIAGRAM

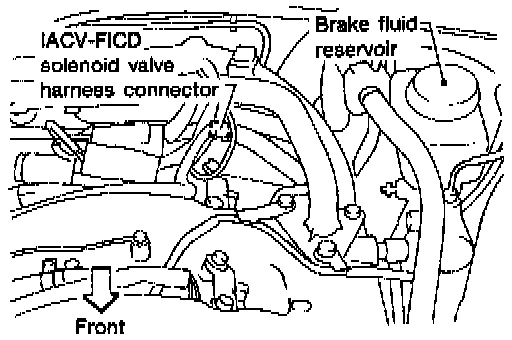

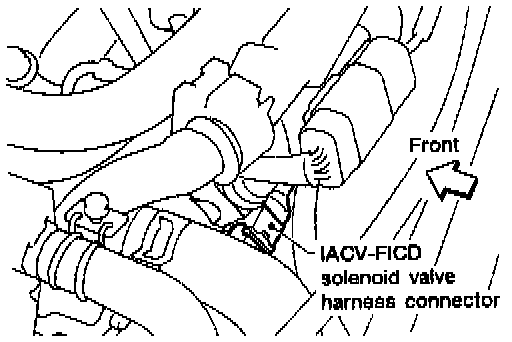

Harness Layout:
HARNESS LAYOUT
