Infiniti
>>
1993
>>
J30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
>>
Electrical Diagrams
>>

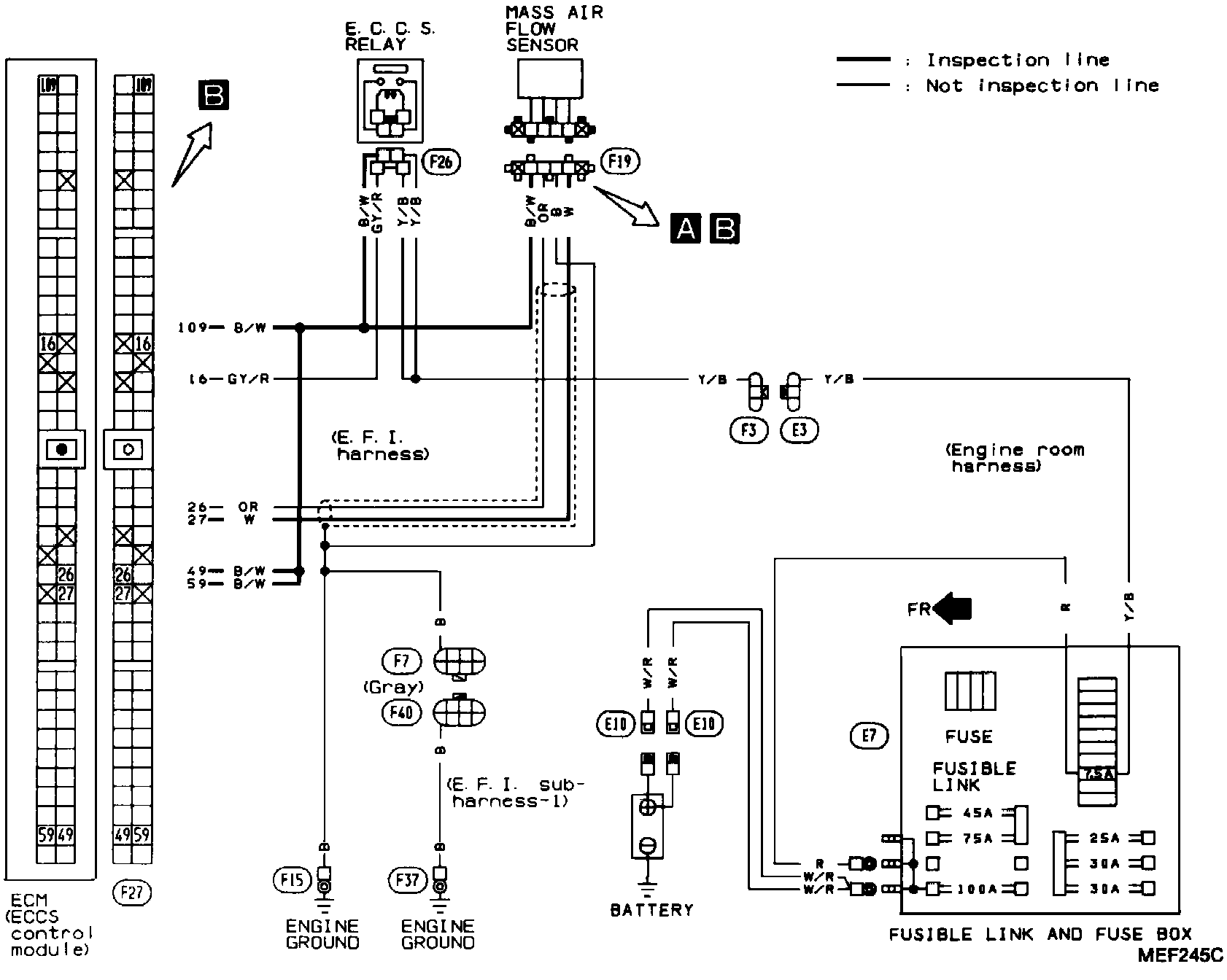

Mass Air Flow Sensor
>>
Diagnostic Procedure 3 (Malfunction Indicator Lamp Item)
Diagnostic Procedure 3 (Malfunction Indicator Lamp Item)
Mass Air Flow Sensor:
