Trouble Diagnosis For Abnormal Pressure

TROUBLE DIAGNOSES FOR ABNORMAL PRESSURE

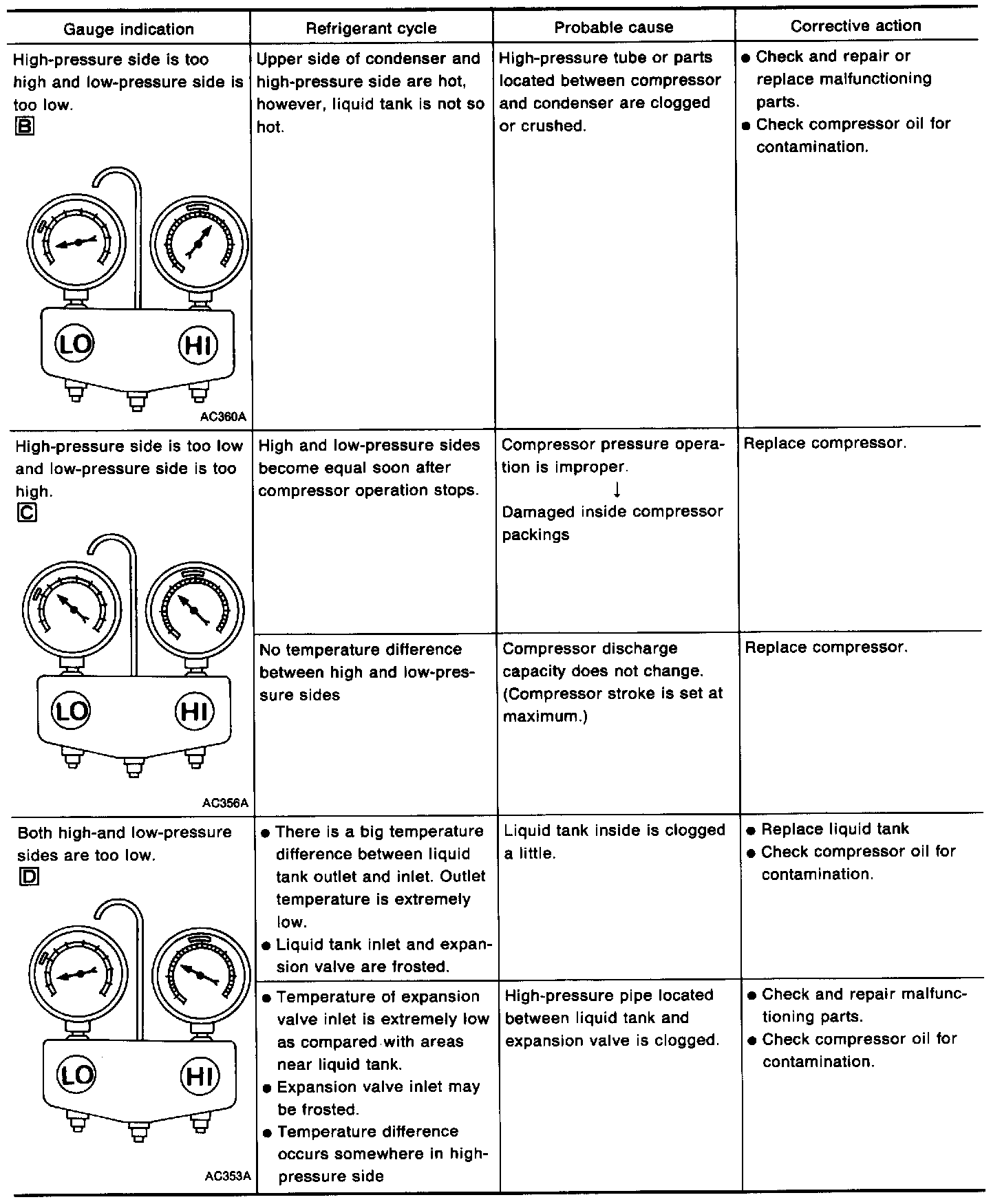

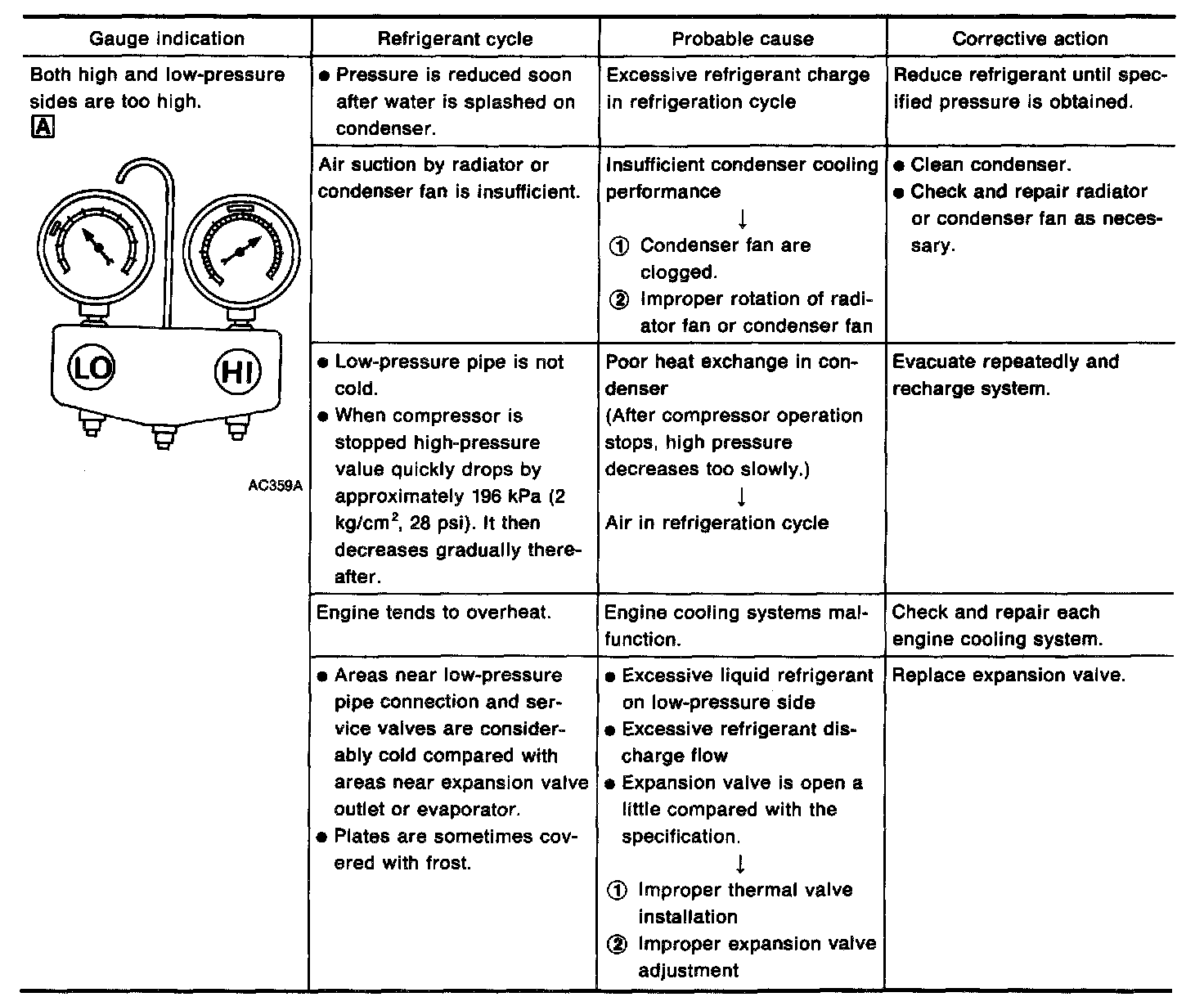

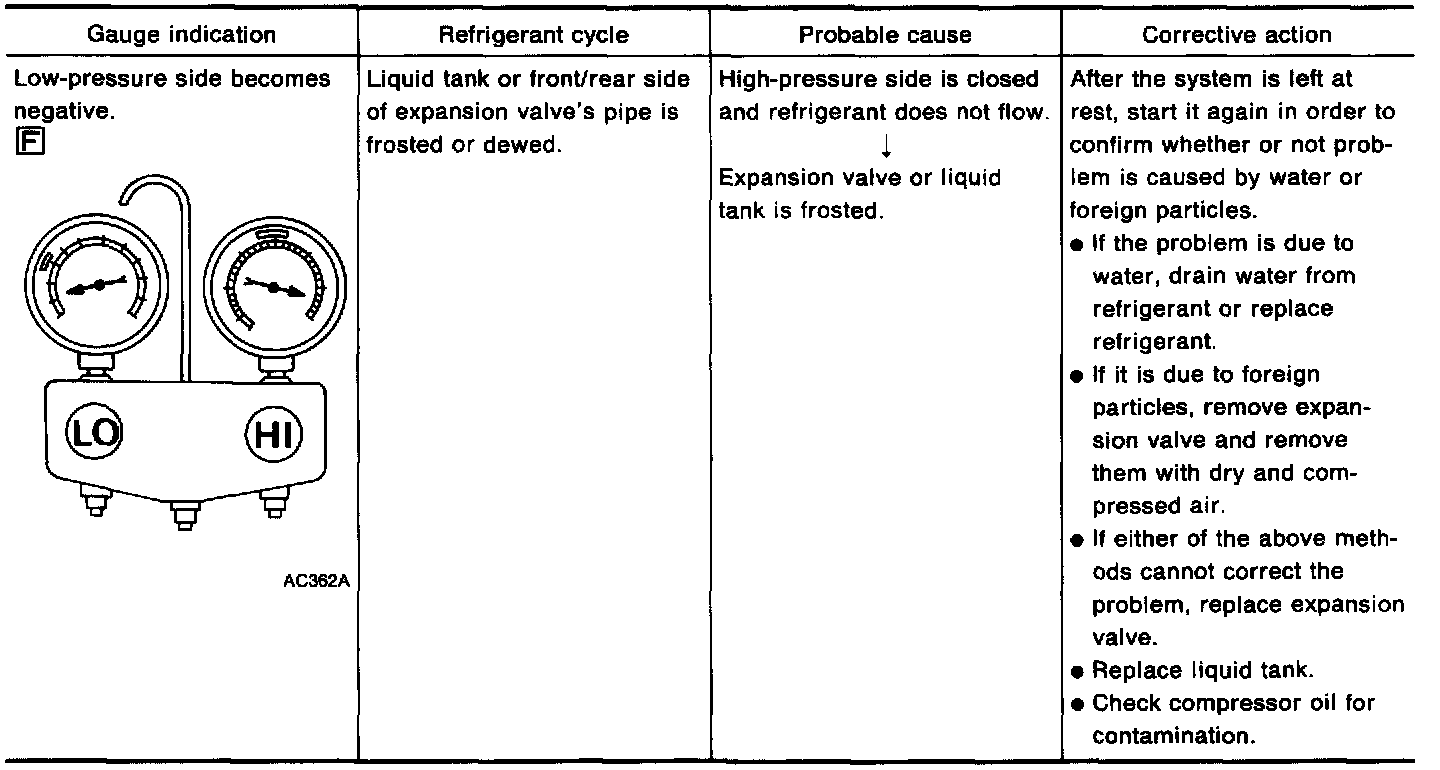

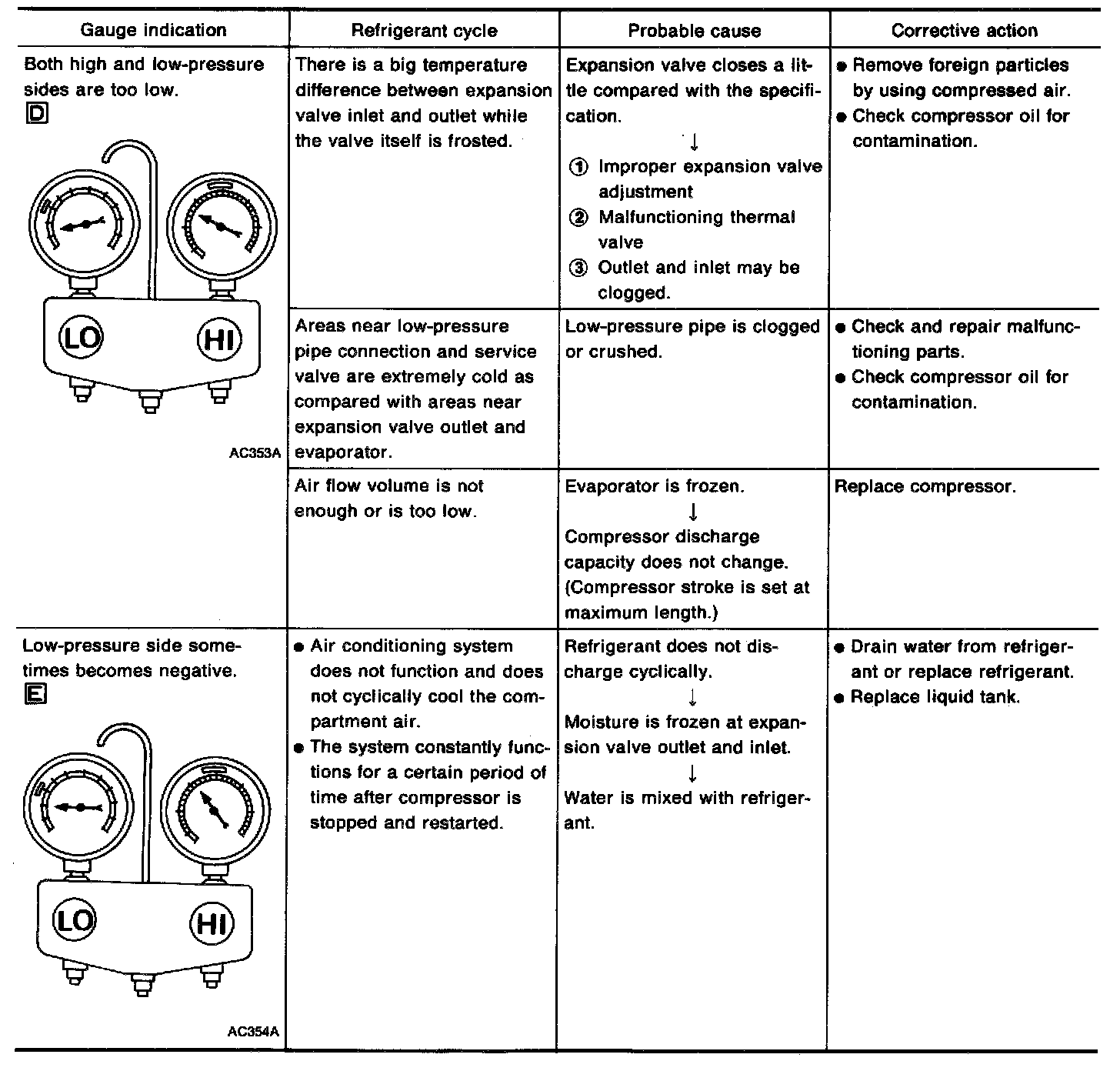

Whenever abnormal pressure of high and/or low sides of the system is noted, diagnosis must be conducted by using a manifold gauge. The large-line zone on the gauge scale (see illustrations.) shown in the following table refers to the standard (normal) pressure range for the corresponding pressure side (high or low). Since the standard (normal) pressure, however, differs from vehicle to vehicle, refer to the "Ambient Temperature-Pressure Characteristics" chart.
Pressure measurements are effective only when ambient temperature is in the range Indicated under the heading "INSPECTION DATA (1) Measurement of system pressures".
