Home
>>
Infiniti
>>
1993
>>
J30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Temperature Gauge
Temperature Gauge

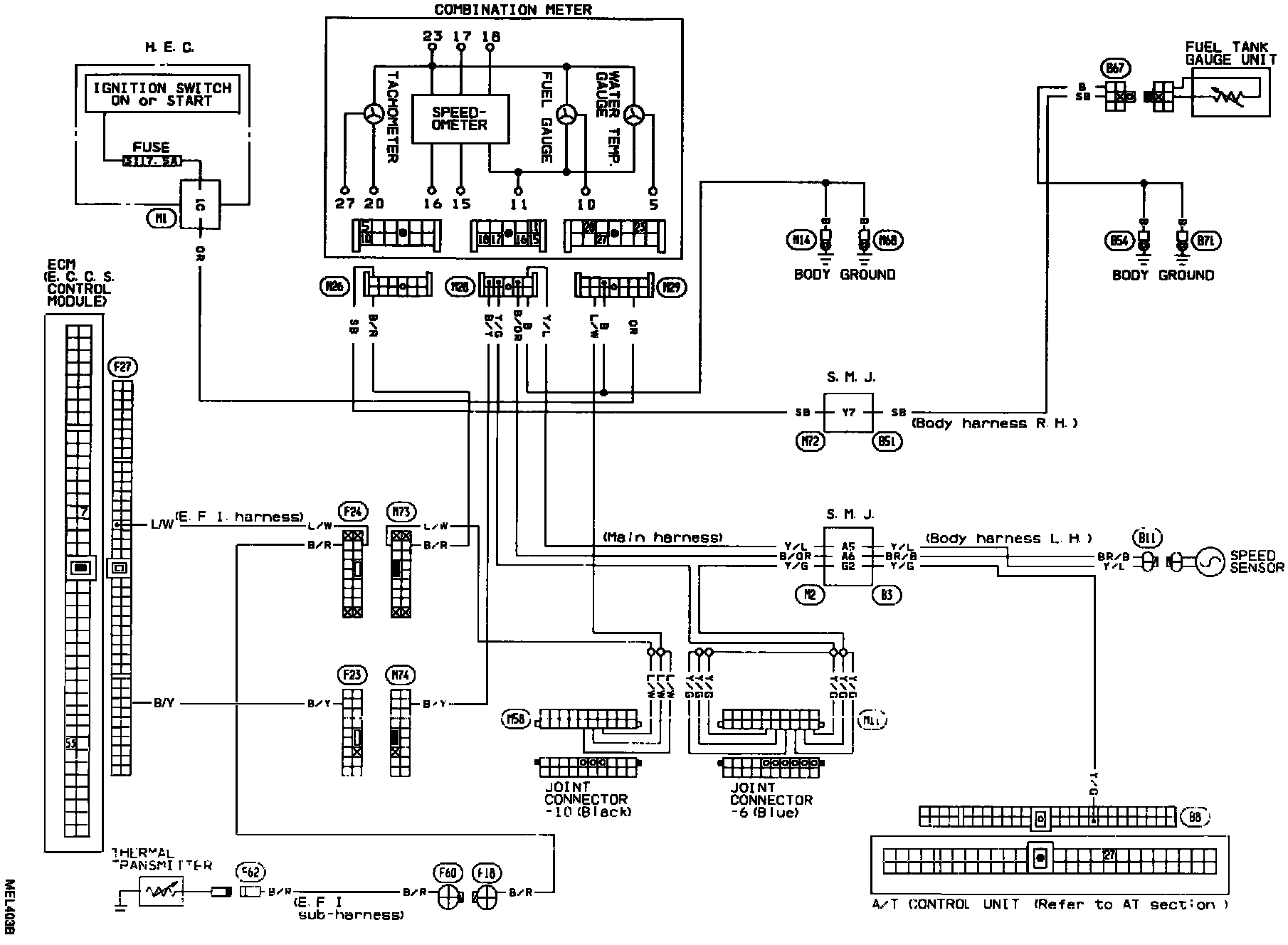

Speedometer,Tachometer,Temp. And Fuel Gauges/Wiring Diagram:
