Home >> Infiniti >> 1993 >> J30 V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Connector Views >> Harness Layout

Harness Layout

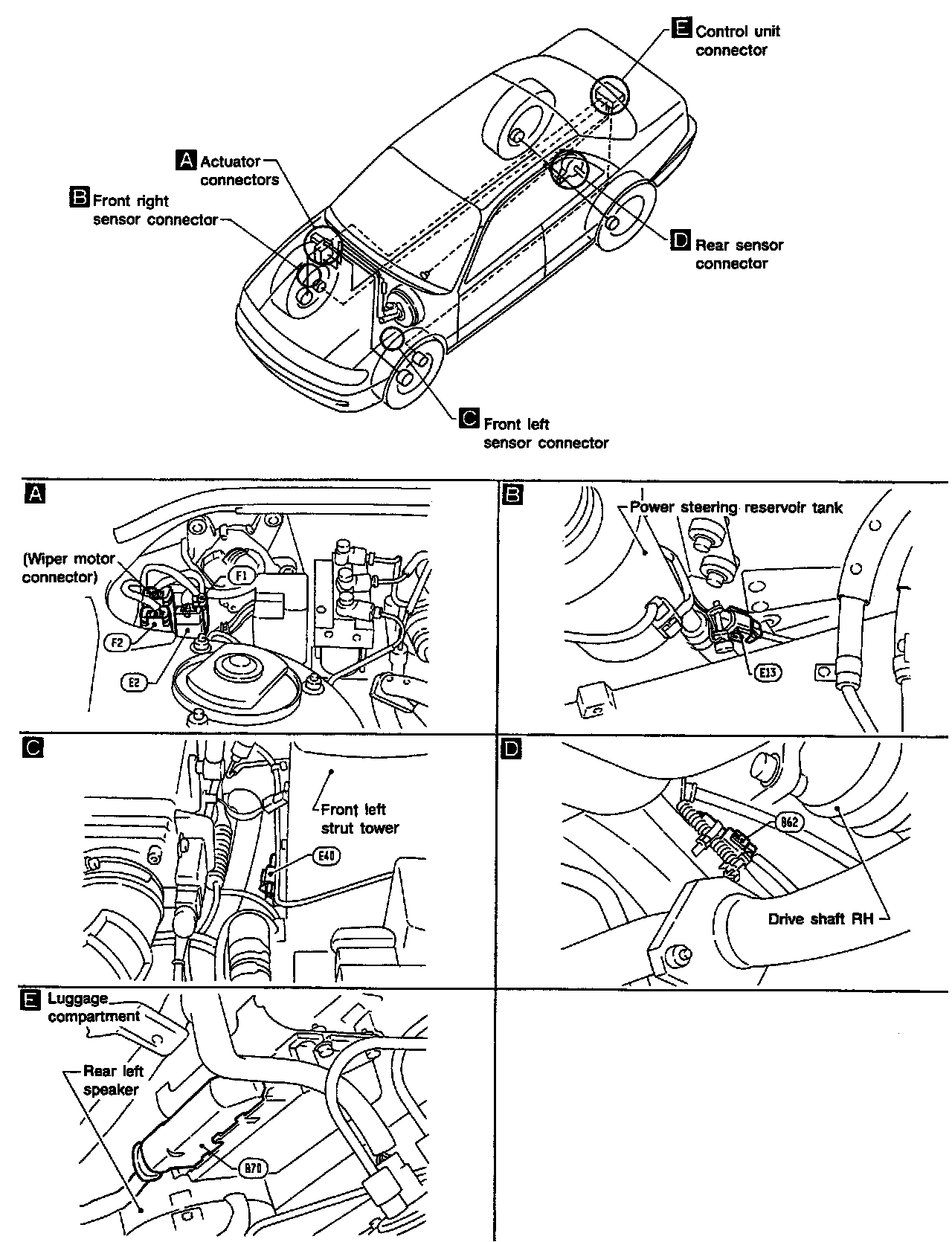

HARNESS LAYOUT COMPONENT PARTS AND HARNESS CONNECTOR LOCATION
