Suspension Control ( Automatic - Electronic Level )
>>
Procedure 6 - Roll Control
Procedure 6 - Roll Control

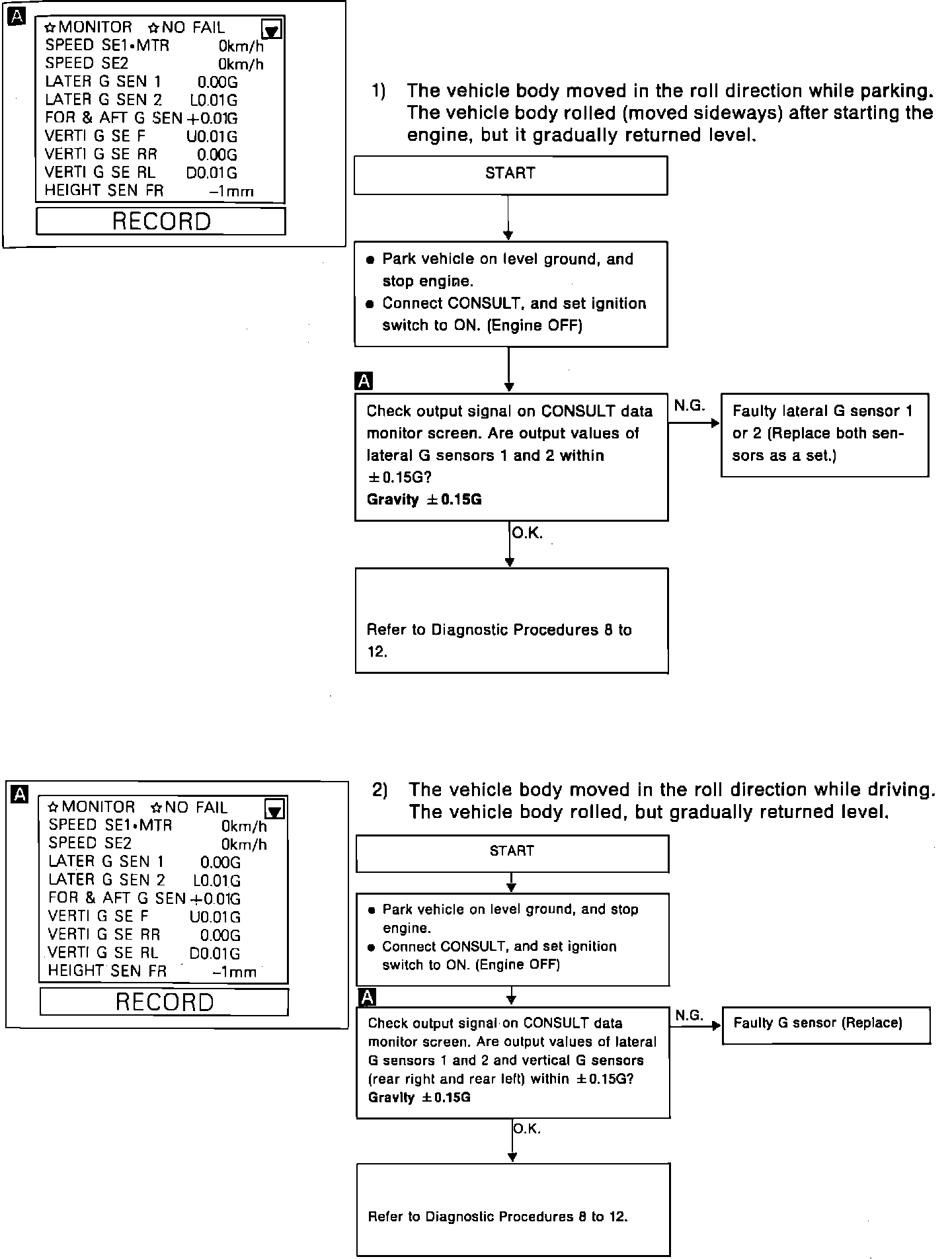

Fig. 11 Electrical Diagnosis Procedure 6:
