Code 54

A/T Control (Diagnostic Trouble Code No.54):

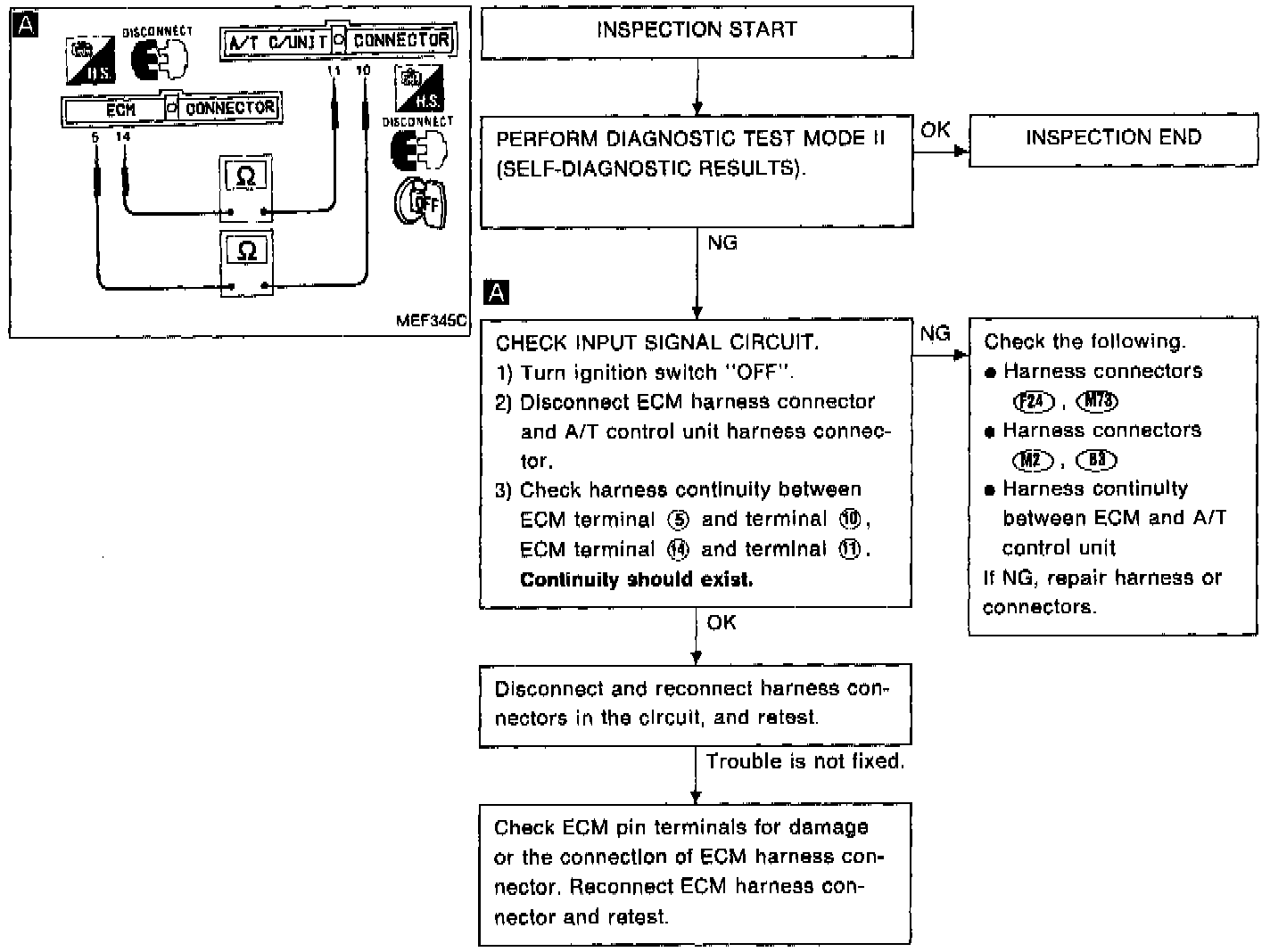

DIAGNOSTIC CHART

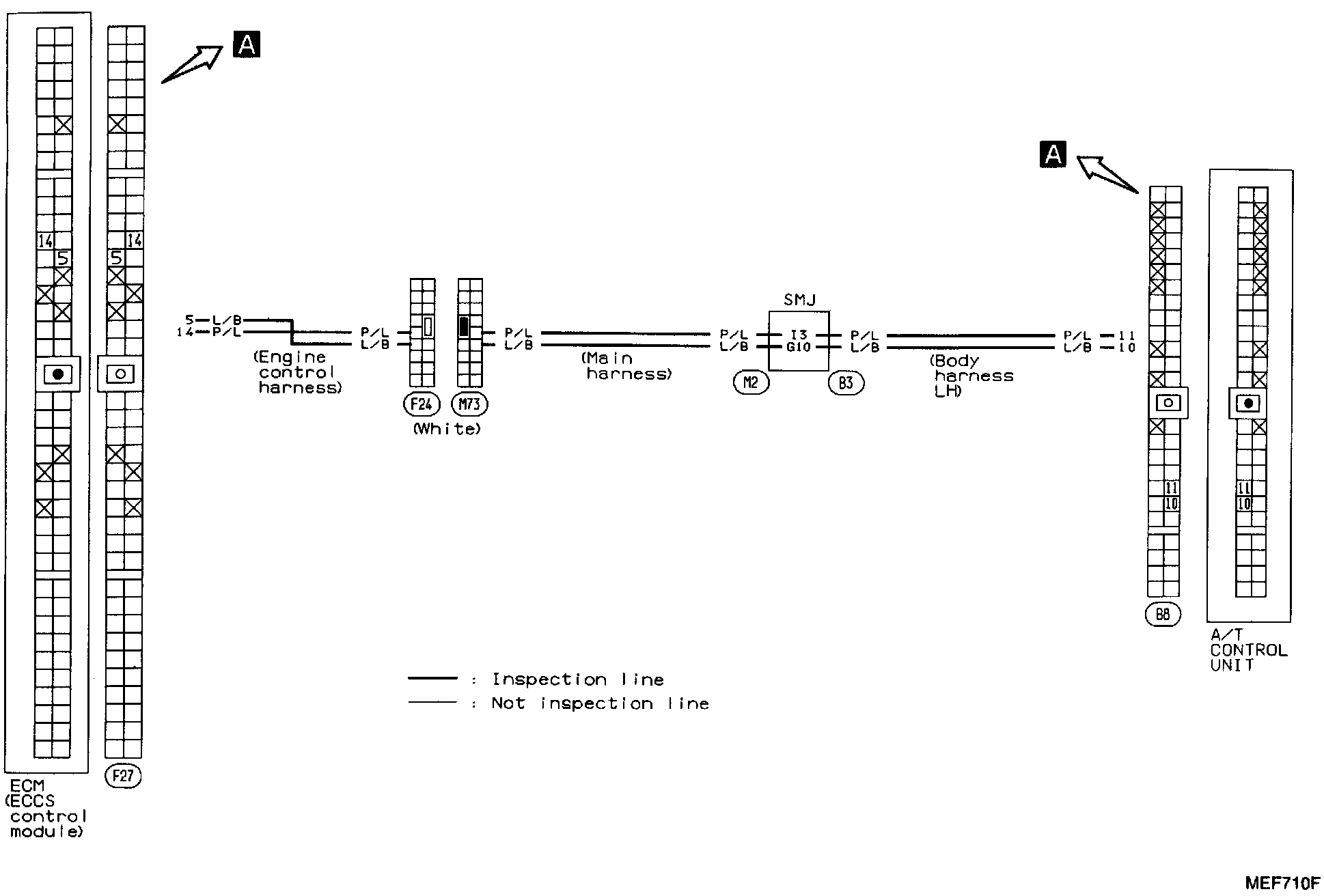

Circuit Diagram:





CIRCUIT DIAGRAM

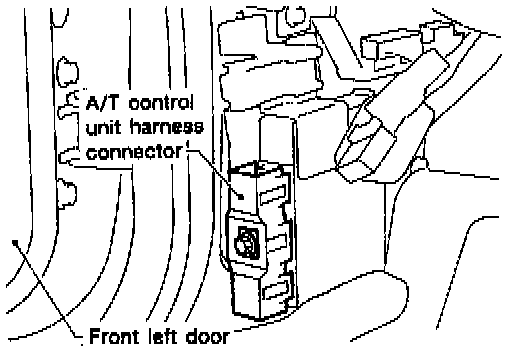

Harness Layout:








HARNESS LAYOUT






FINAL CHECK
