Code 51

Injector (Diagnostic Trouble Code No.51):

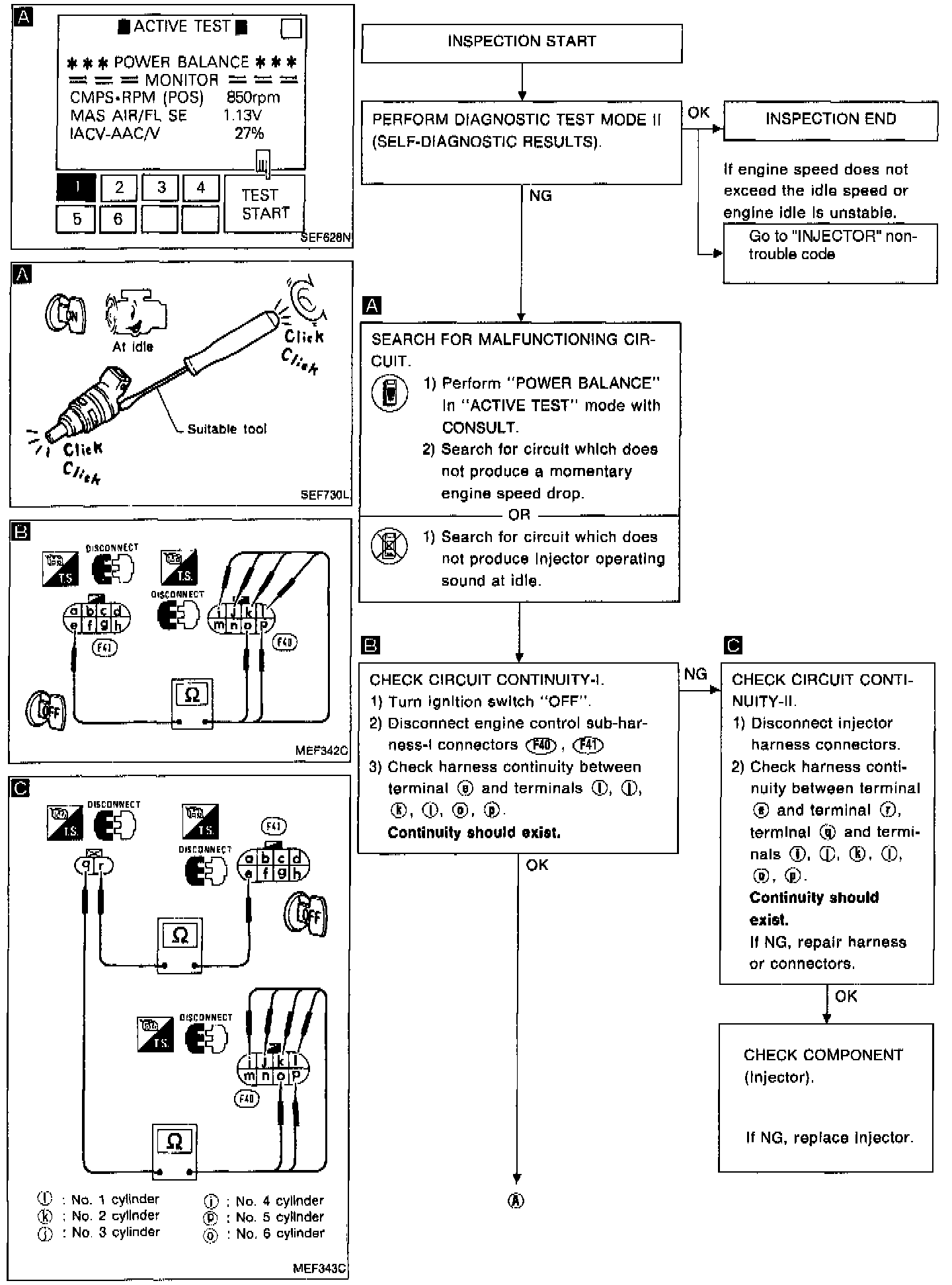

DIAGNOSTIC CHART

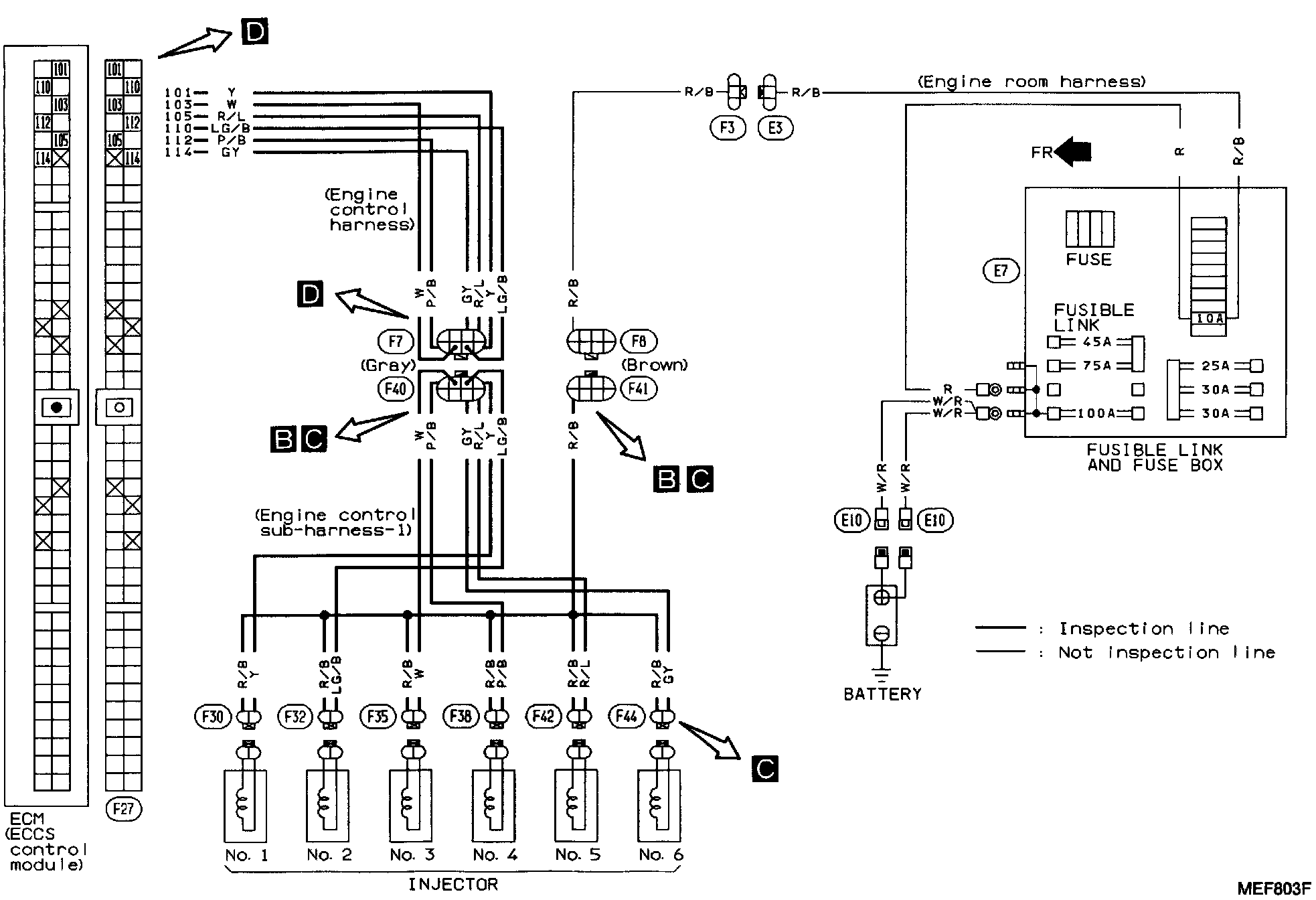

Circuit Diagram:





CIRCUIT DIAGRAM

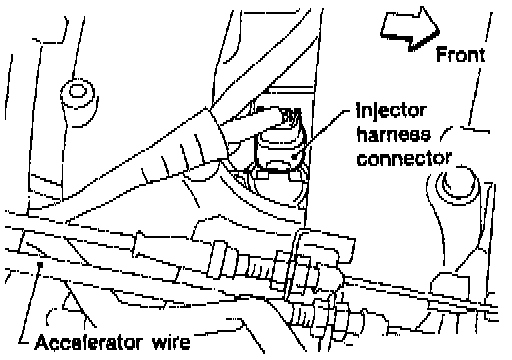

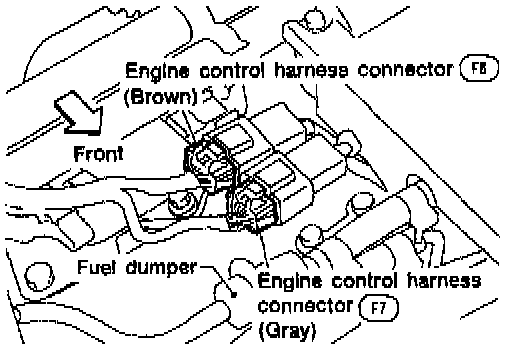

Harness Layout:










HARNESS LAYOUT

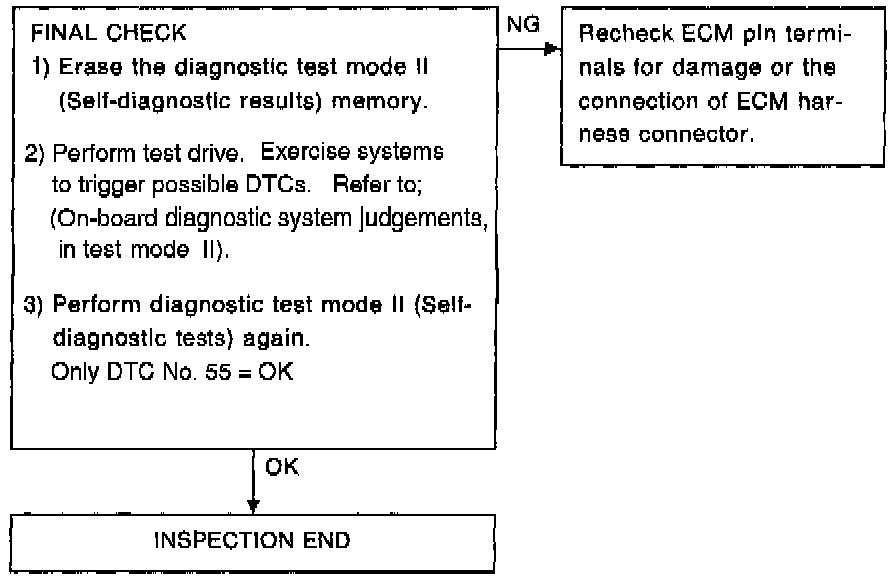

FINAL CHECK
