Code 35
Code 35
Exhaust Gas Recirculation, Temperature Sensor (Diagnostic Trouble Code No.35):

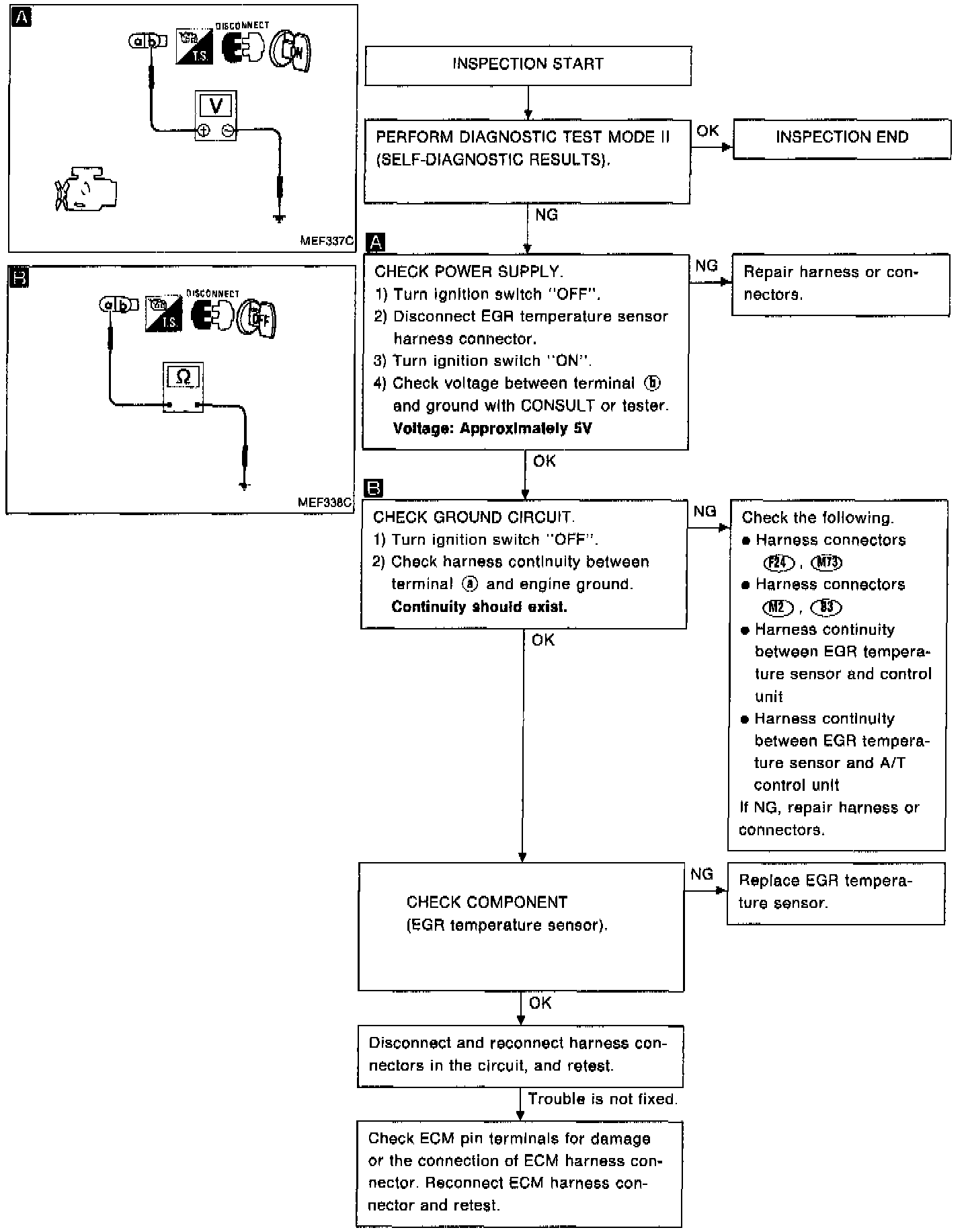

DIAGNOSTIC CHART

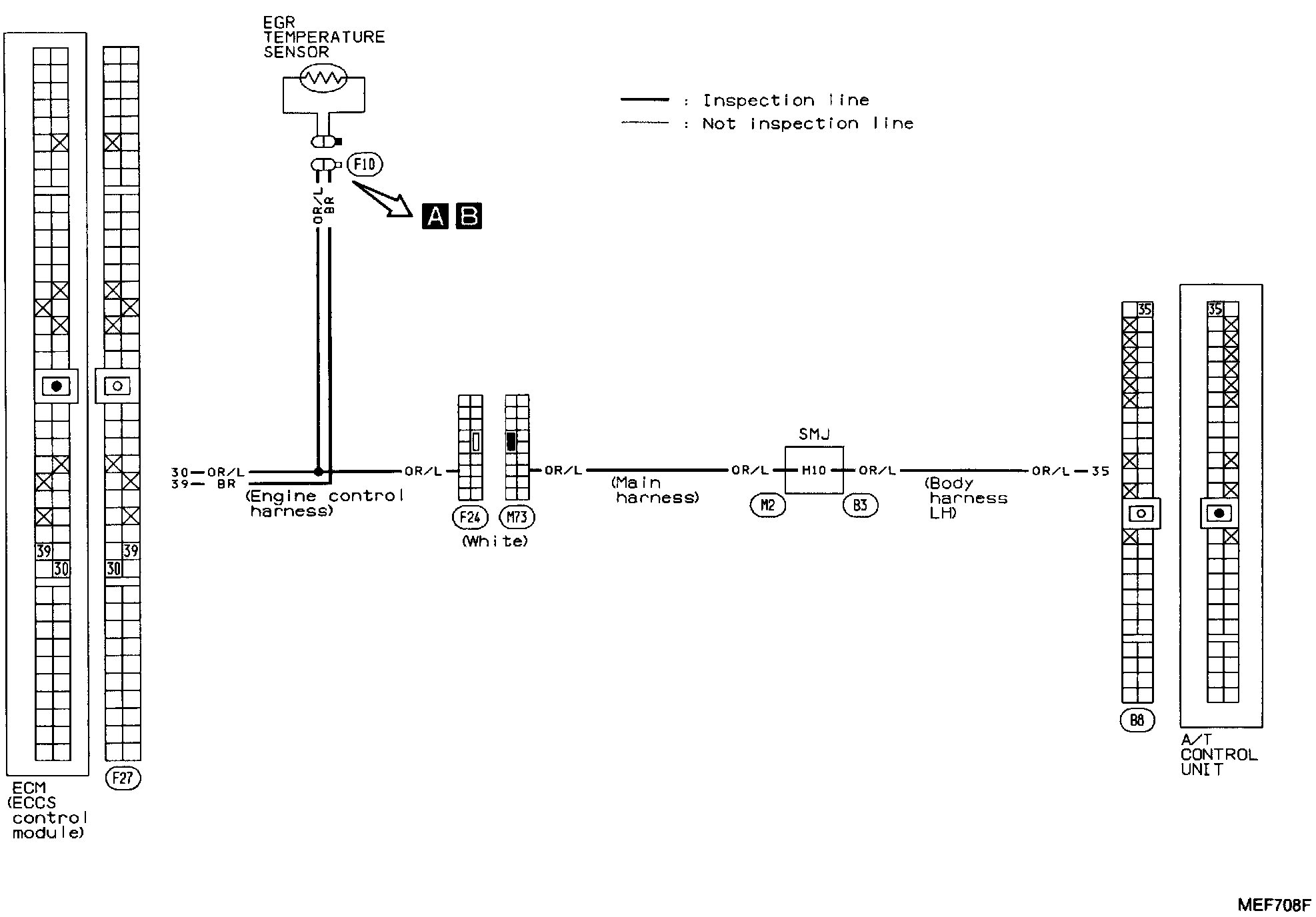

Circuit Diagram:
CIRCUIT DIAGRAM

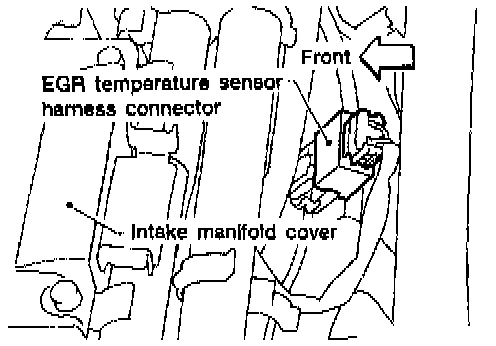

Harness Layout:
HARNESS LAYOUT
FINAL CHECK
