Code 12

Mass Air Flow Sensor:

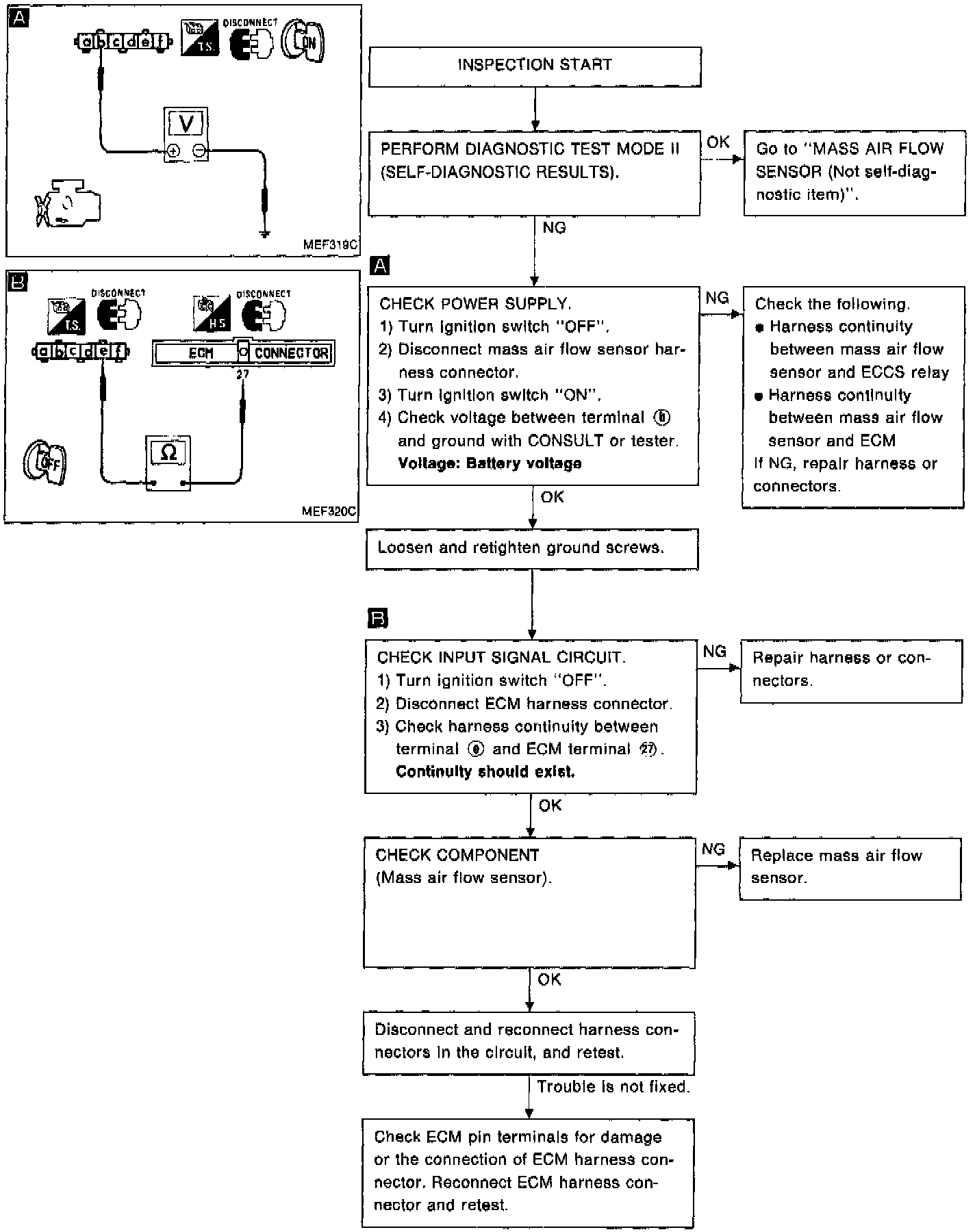

DIAGNOSTIC CHART

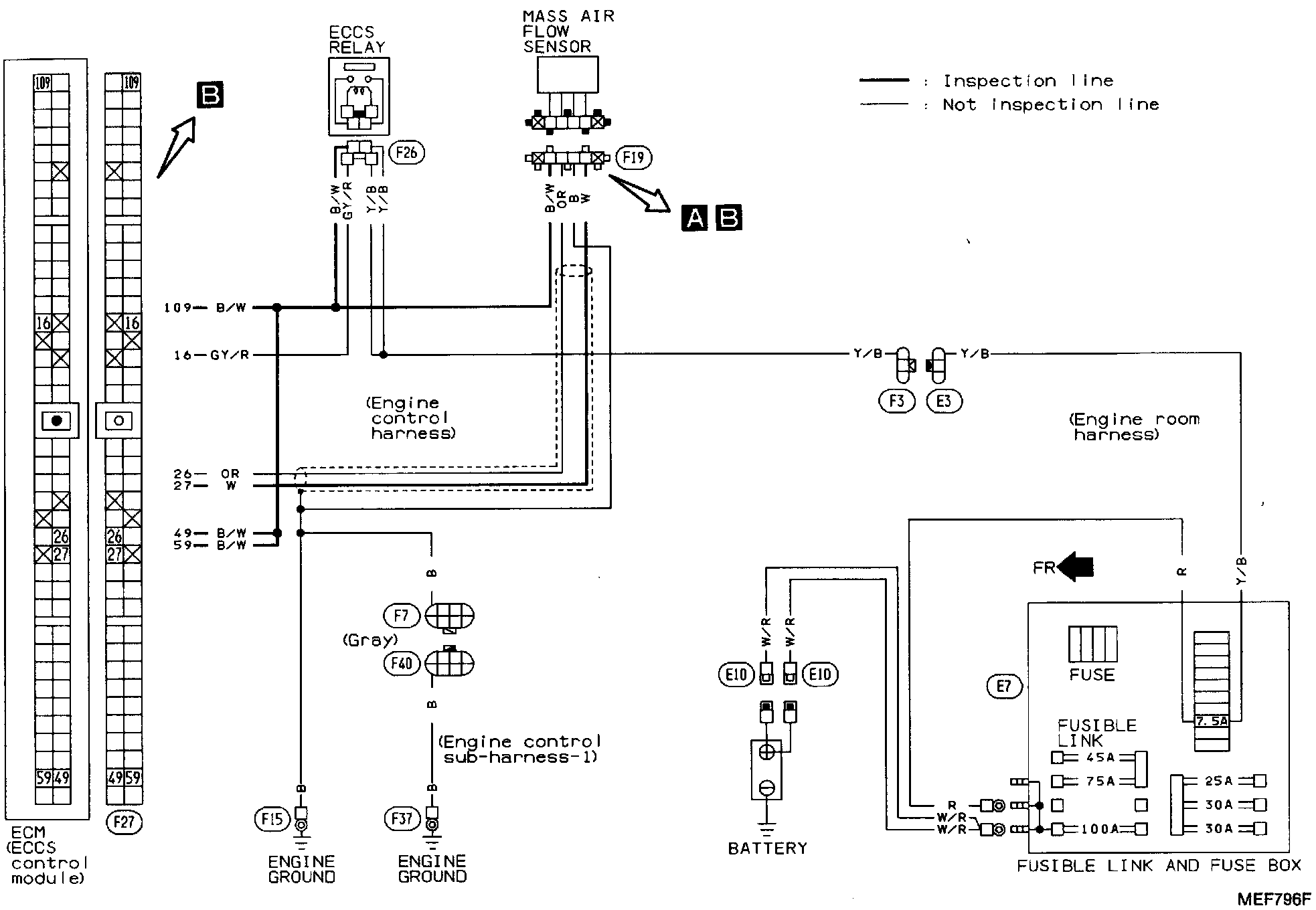

Circuit Diagram:





CIRCUIT DIAGRAM

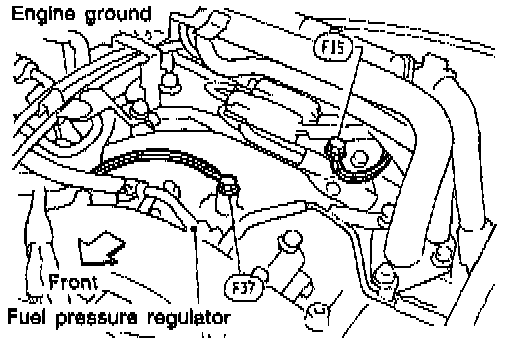

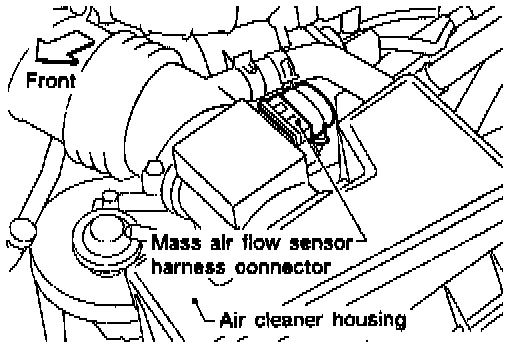

Harness Layout:











HARNESS LAYOUT






FINAL CHECK
