Intake Air Plenum: Locations

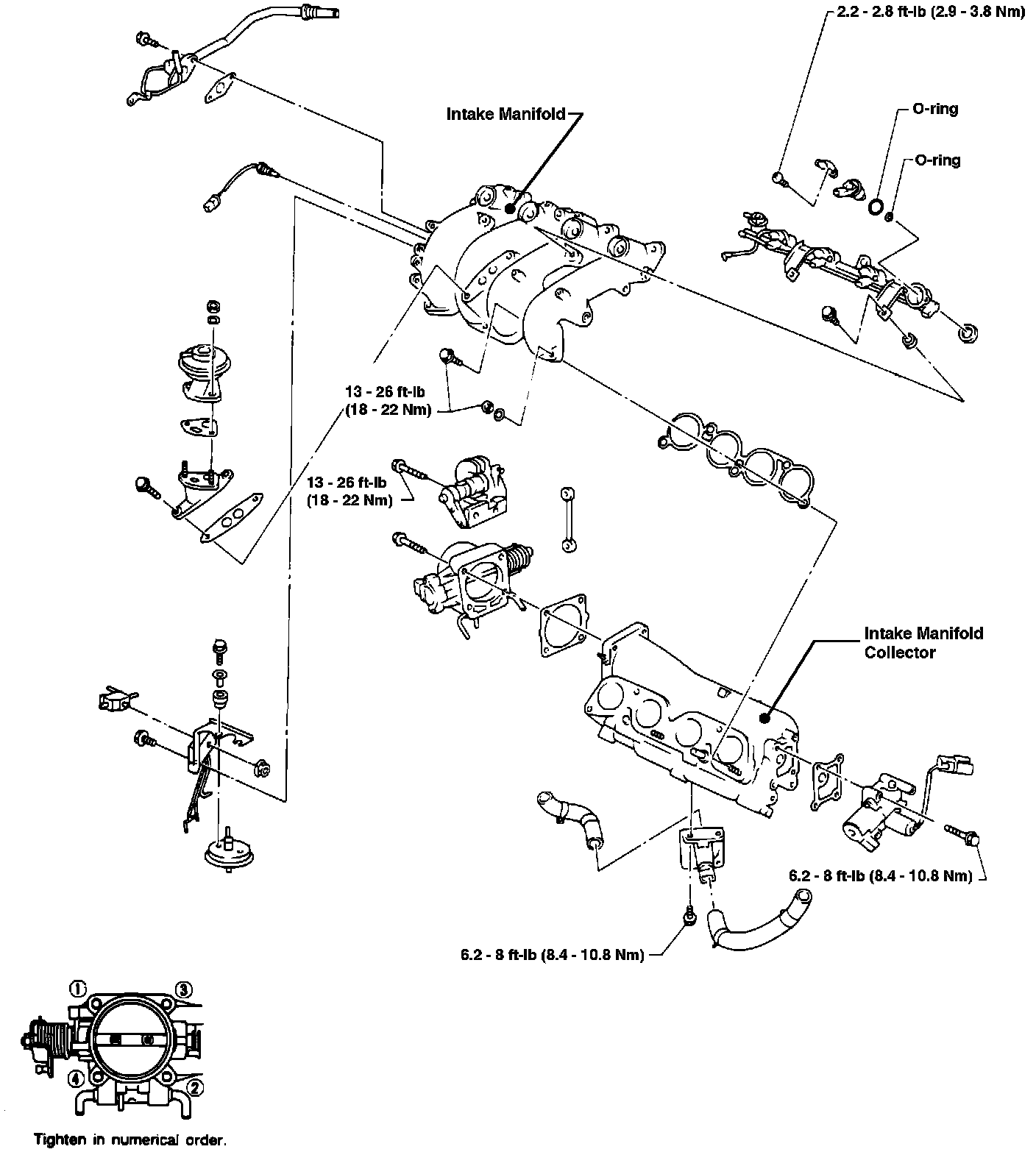

Intake Manifold And Collector:




The Intake Manifold Collector is attached to the intake manifold.
