Fuel Pressure Regulator: Description and Operation

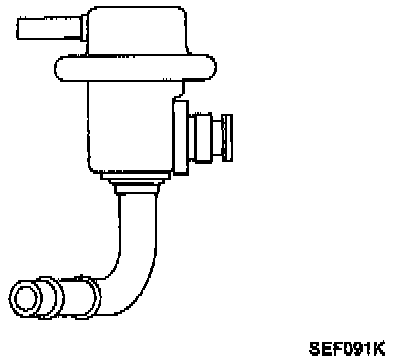

Fuel Pressure Regulator:

OPERATION
The pressure regulator maintains the fuel pressure at 299.1 kPa (43.4 psi). Since the injected fuel amount depends on injection pulse duration, it is necessary to maintain the pressure at the above value.
