Evaporative Emission Control Canister: Testing and Inspection

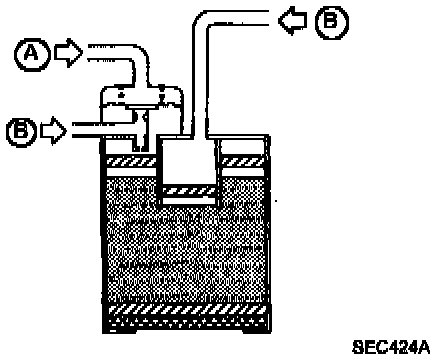

Carbon Canister Test:
1. Blow air into port "A". Air should NOT leak.
2. Blow air into both "B" ports. Air SHOULD leak.
Replace canister if it fails above tests.
1. Blow air into port "A". Air should NOT leak.
2. Blow air into both "B" ports. Air SHOULD leak.
Replace canister if it fails above tests.
