Stop Lamp Switch








Stop lamp switch

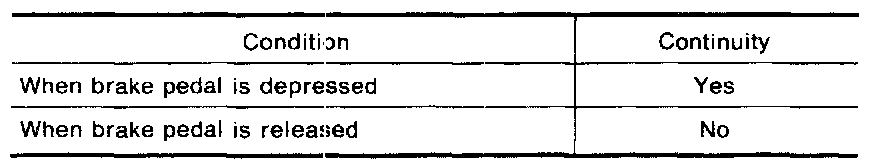

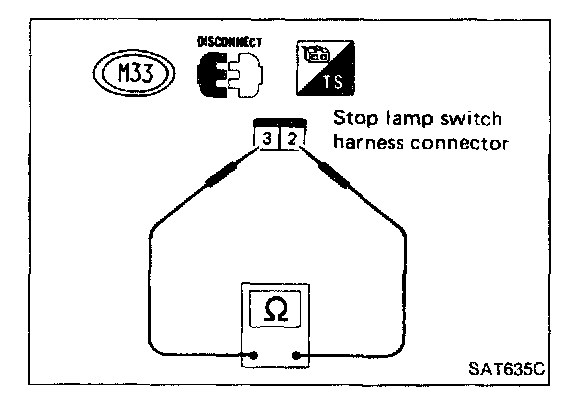

- Check continuity between terminals (2) and (3) of stop lamp switch harness connector.

Check stop lamp switch after adjusting brake pedal.
