Shift Lock Solenoid
Shift Lock Solenoid
Shift lock solenoid

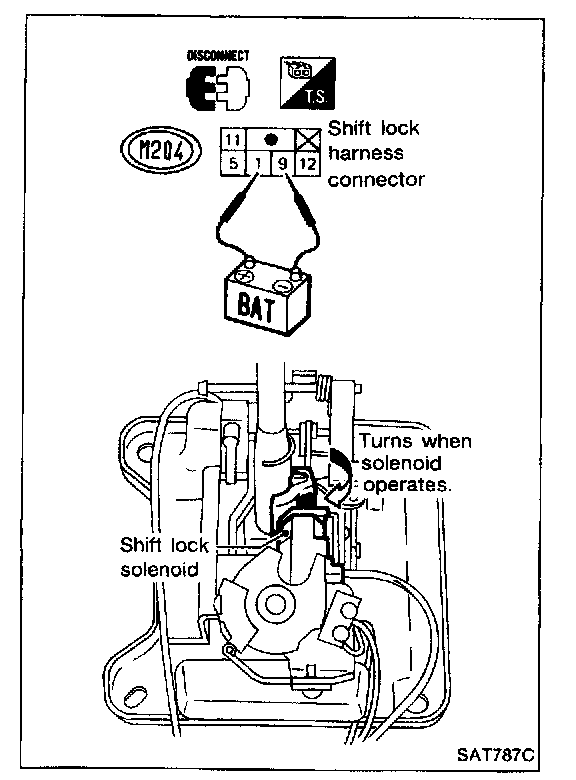

Check operation by applying battery voltage to shift lock harness connector.
