Home
>>
Infiniti
>>
1992
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Key Switch
Key Switch
Key switch

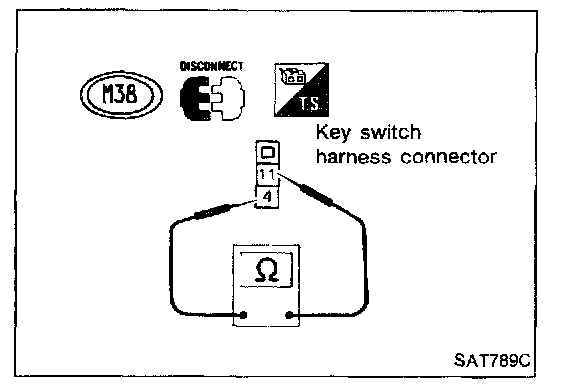

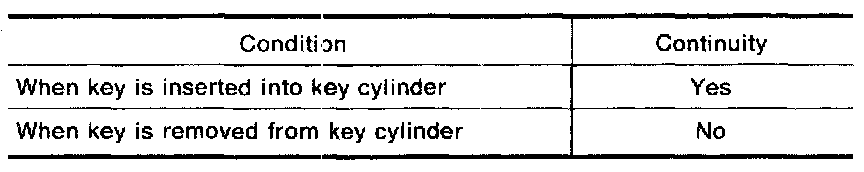

Check continuity between terminals (4) and (11) of key switch harness connector.
