Service Manual Amendments
Models: 1992 Q45Section: Amendment
Classification: AM92-004
Bulletin No.: ITB92-051
Date: September 11, 1992
1992 Q45 SERVICE MANUAL AMENDMENTS
Included in this Bulletin at the time of distribution were the following amended pages for the 1992 Q45 Service Manual.

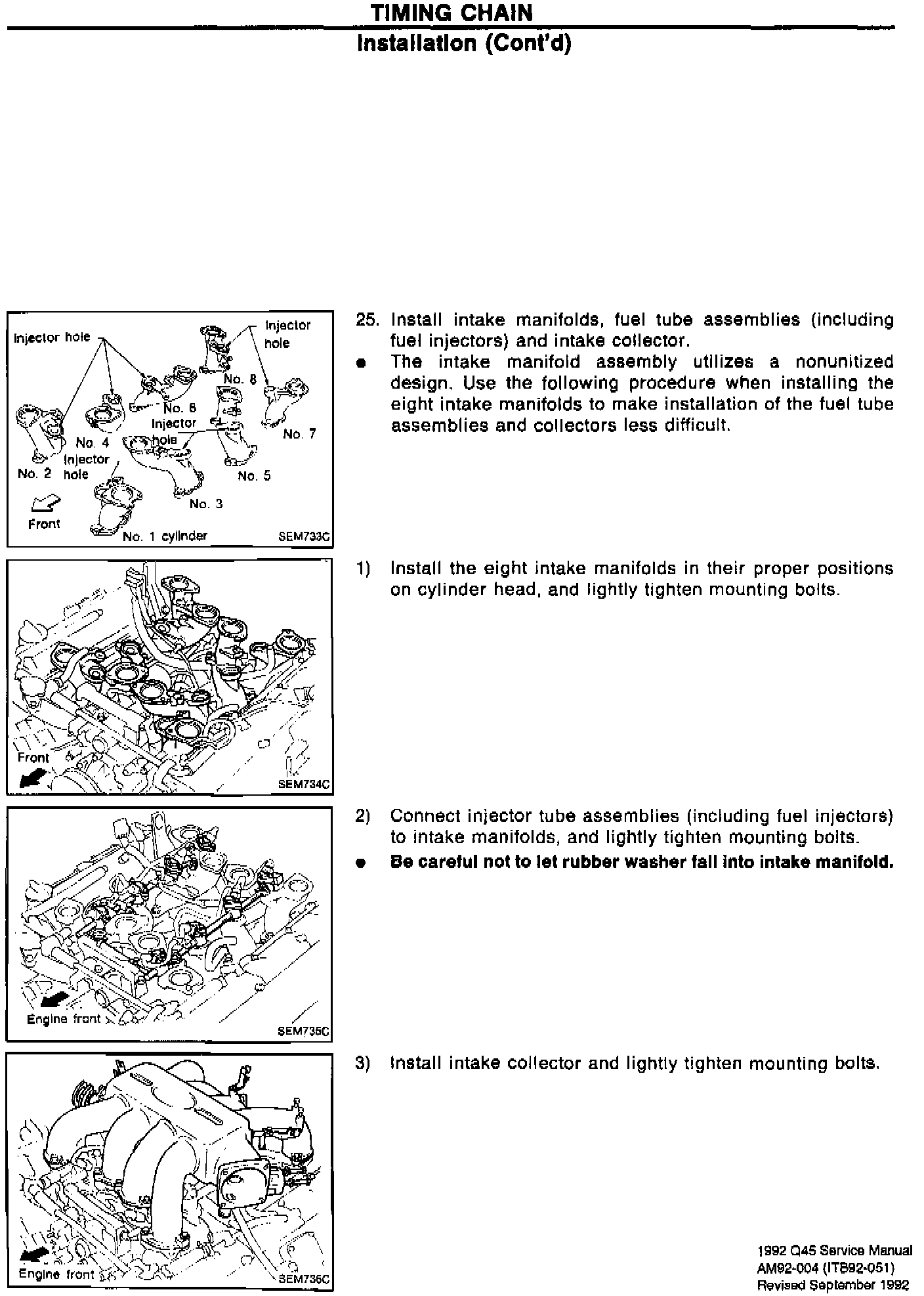

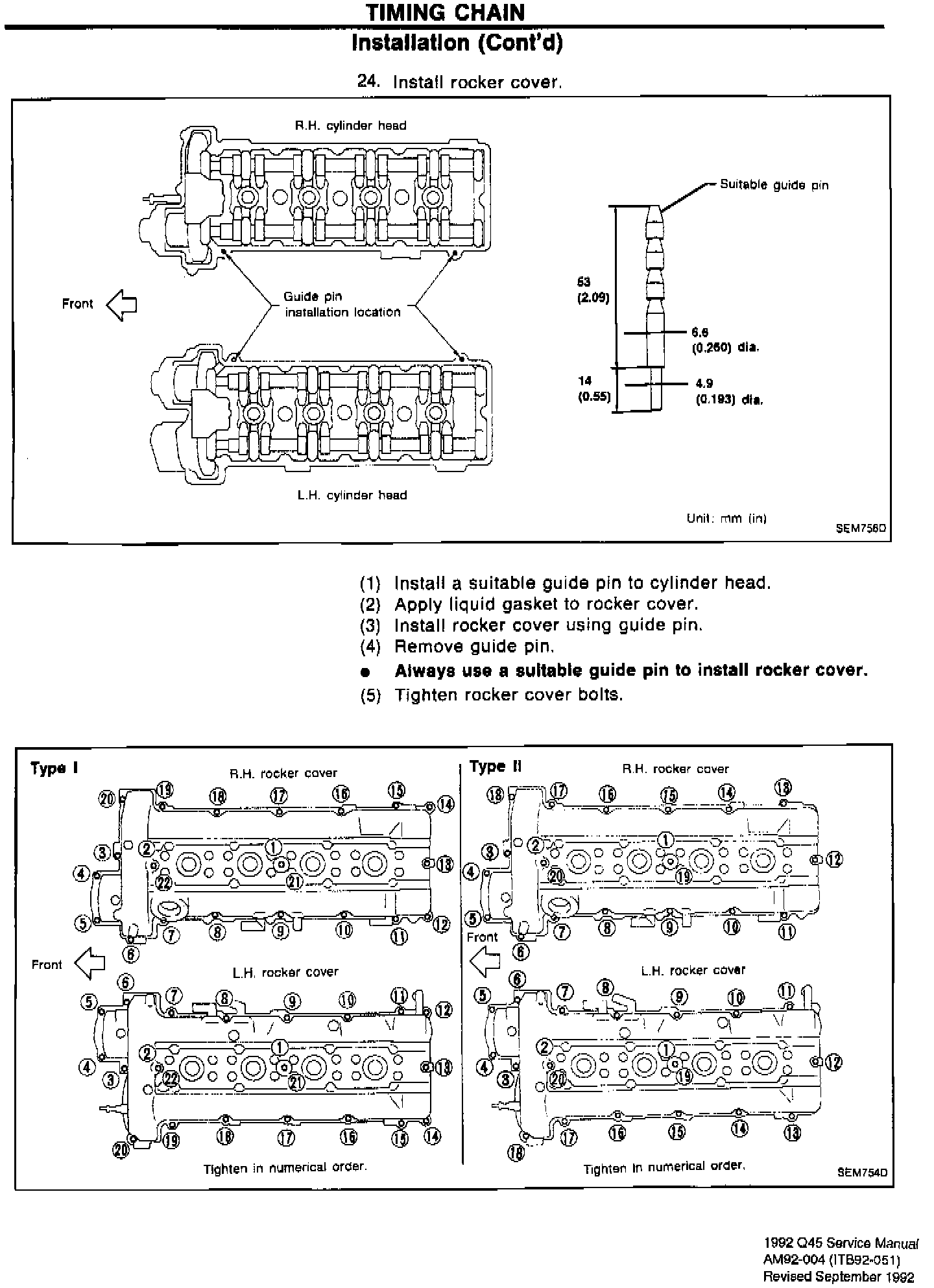

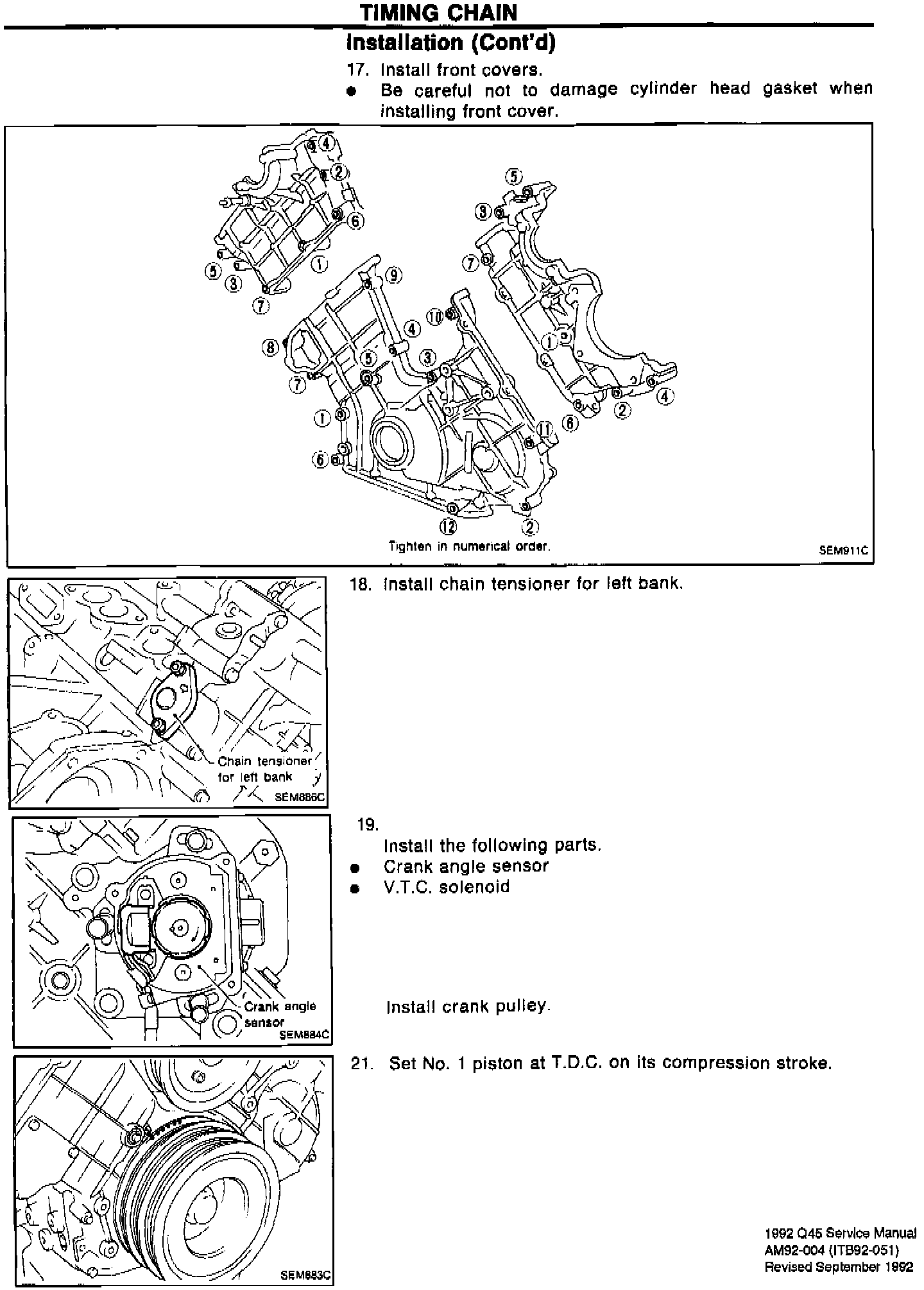

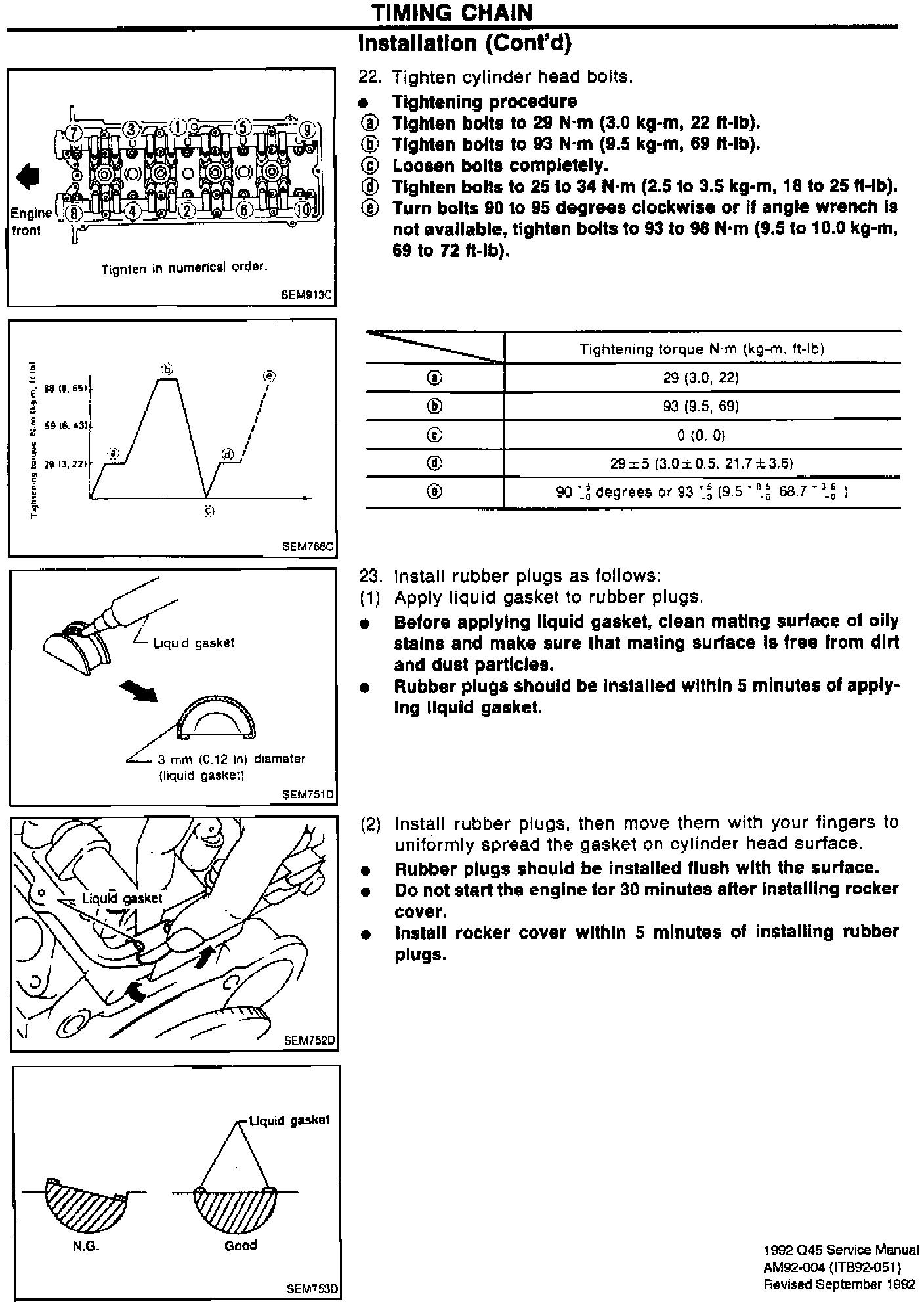

EM23, EM-24, Timing Chain Installation
EM-25, EM-26 Sequence of installation procedure has been amended.

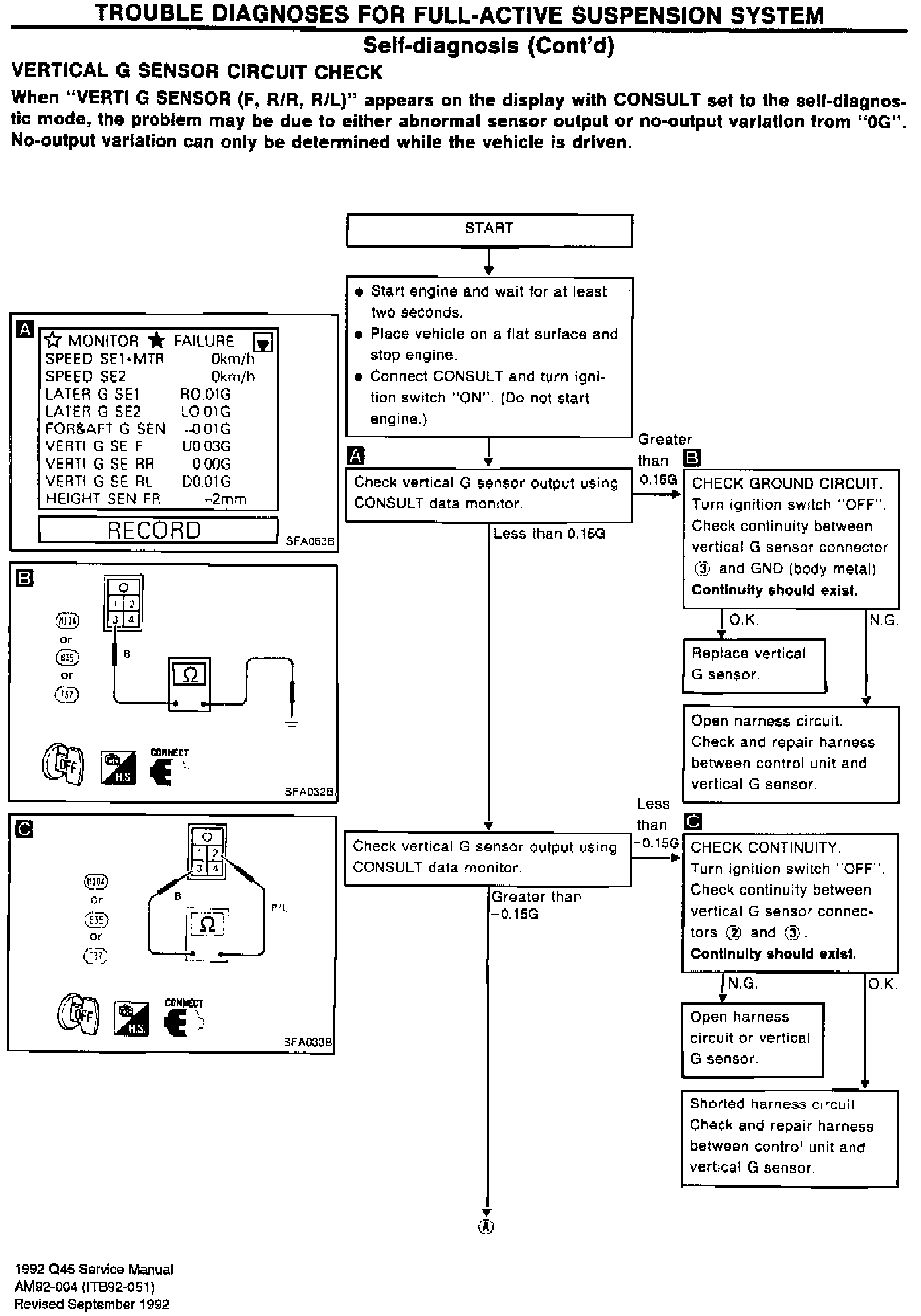

FA-76 - Trouble Diagnoses for Full-Active Suspension System -
G sensor output should be +/-0.15G (not 1.5G).

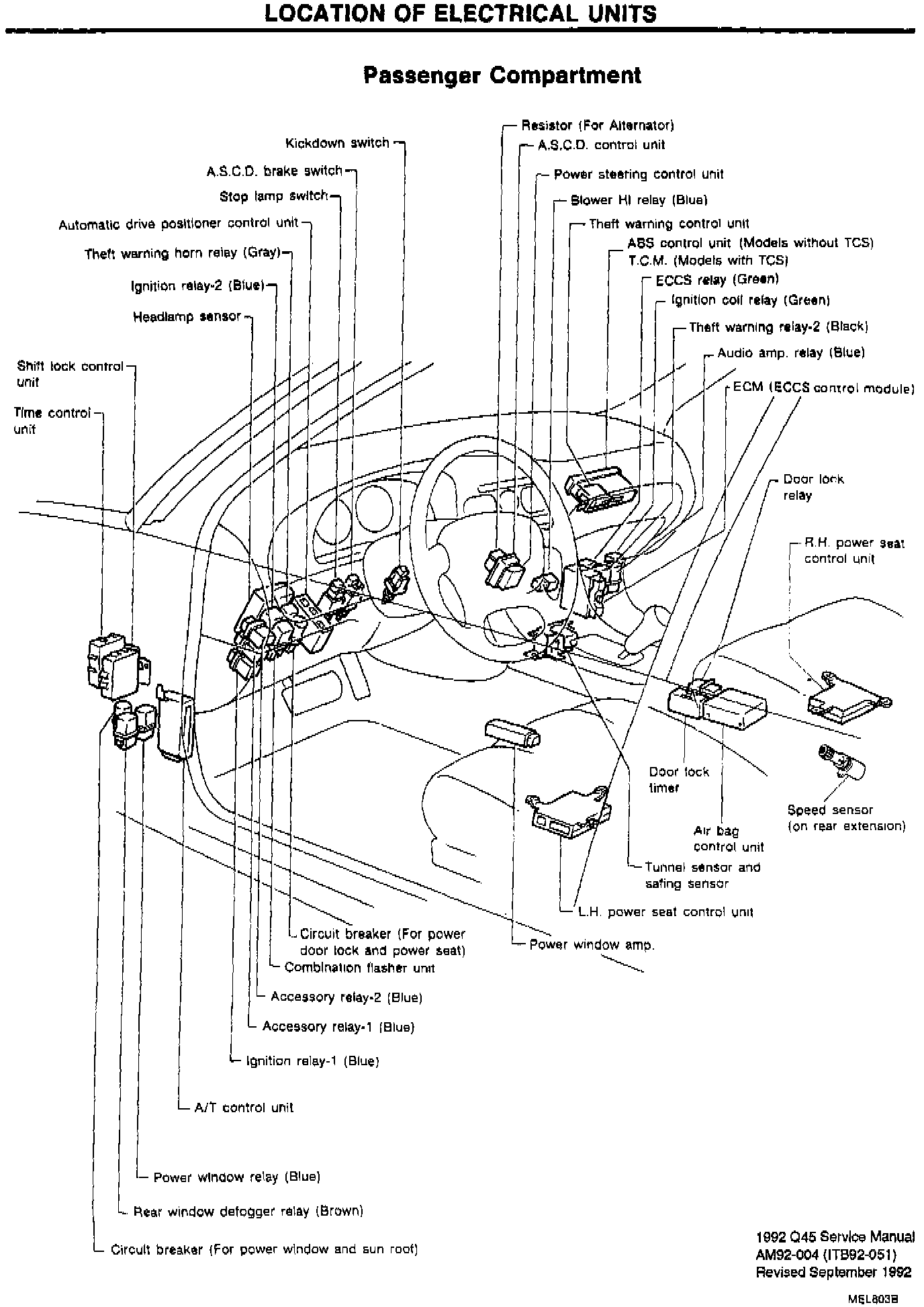

EL-151 - Location of Electrical Units - Passenger Compartment
Corrected drawing showing 1 Door Lock Timer.
TIMING CHAIN
TROUBLE DIAGNOSES FOR FULL-ACTIVE SUSPENSION SYSTEM
LOCATION OF ELECTRICAL UNITS
