A/T - Replacement

Classification:
AT93-003

Section:
Automatic Transmission

Reference:
TECHNICAL BULLETIN ITB93-022

Models:
1991-92 Q45

Date:
April 9, 1993

Q45 AUTOMATIC TRANSMISSION REPLACEMENT
This bulletin amends ITB92-038. Please disregard the former bulletin and file this updated version.

APPLIED MODEL:
1991-92 Q45 This Bulletin does not apply to 1990 models.

APPLIED VIN:
beginning with JNKNG01C( )MM100000 (June, 1990) ending with C( )NM209568 (February, 1992)

SERVICE INFORMATION

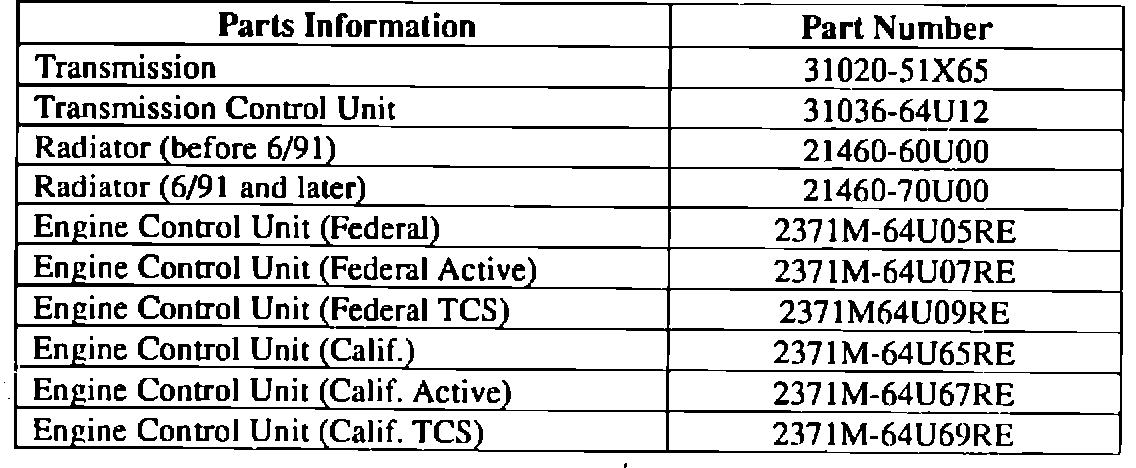

Inspect the transmission pan and screen for fibrous particulate. If fibrous particulate is found on the transmission strainer screen, the replacement parts may need to be installed. Replace only after confirming these parts are not already installed.

Reference Technical Bulletin ITB92-054 for information on radiator replacement and flushing of cooler lines.

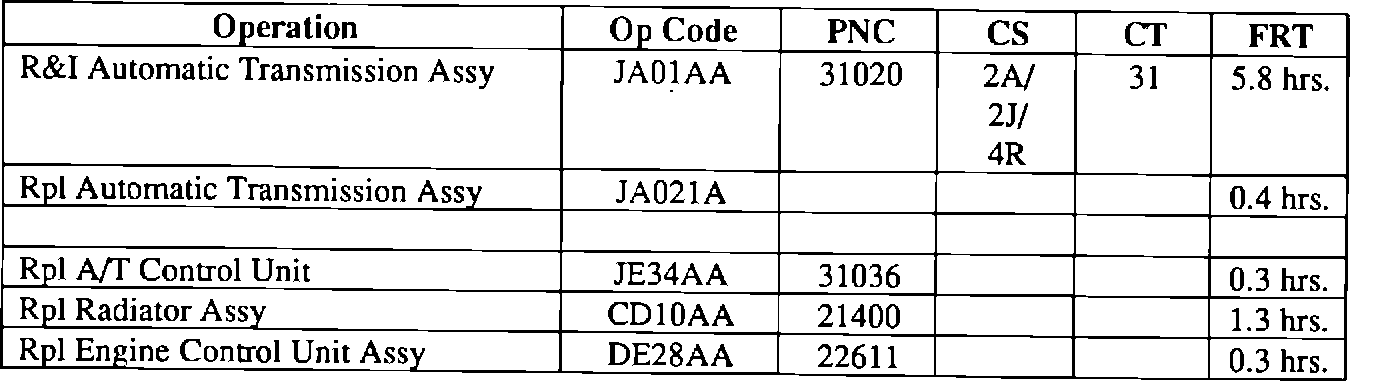

WARRANTY INFORMATION

Note:
Please submit the above operations on one claim using PNC 31020 and the appropriate CS and the indicated CT.
