Infiniti
>>
1992
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
EGR Valve
>>
Testing and Inspection
>>
Related Diagnostic Information
Related Diagnostic Information

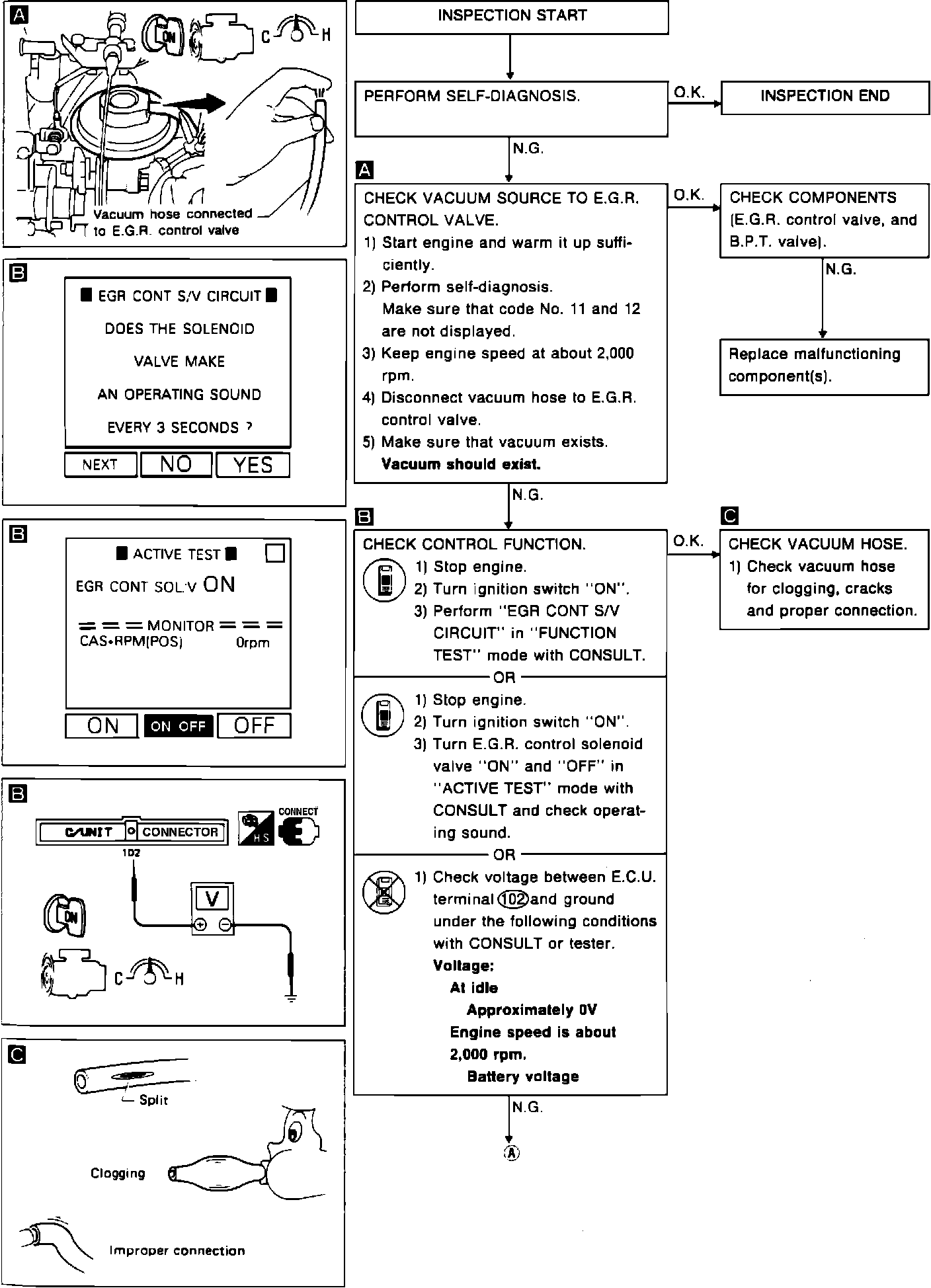

Fig. 154 Code 32, EGR Function (Part 1 Of 2):

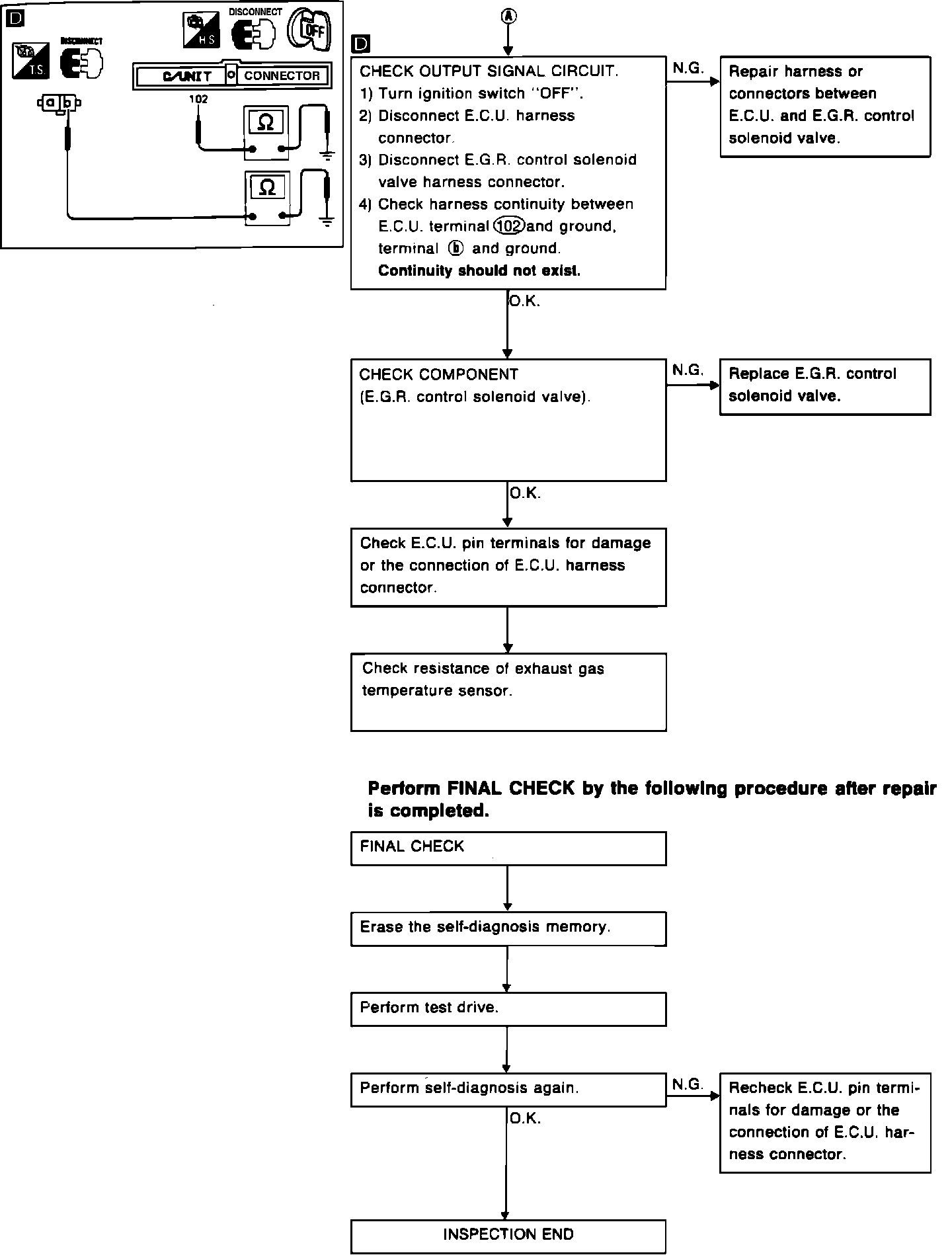

Fig. 154 Code 32, EGR Function (Part 2 Of 2):
