Valve Timing Control Circuit

Fig. 199 Component Circuit Diagnosis, Valve Timing Control (Part 1 Of 2):

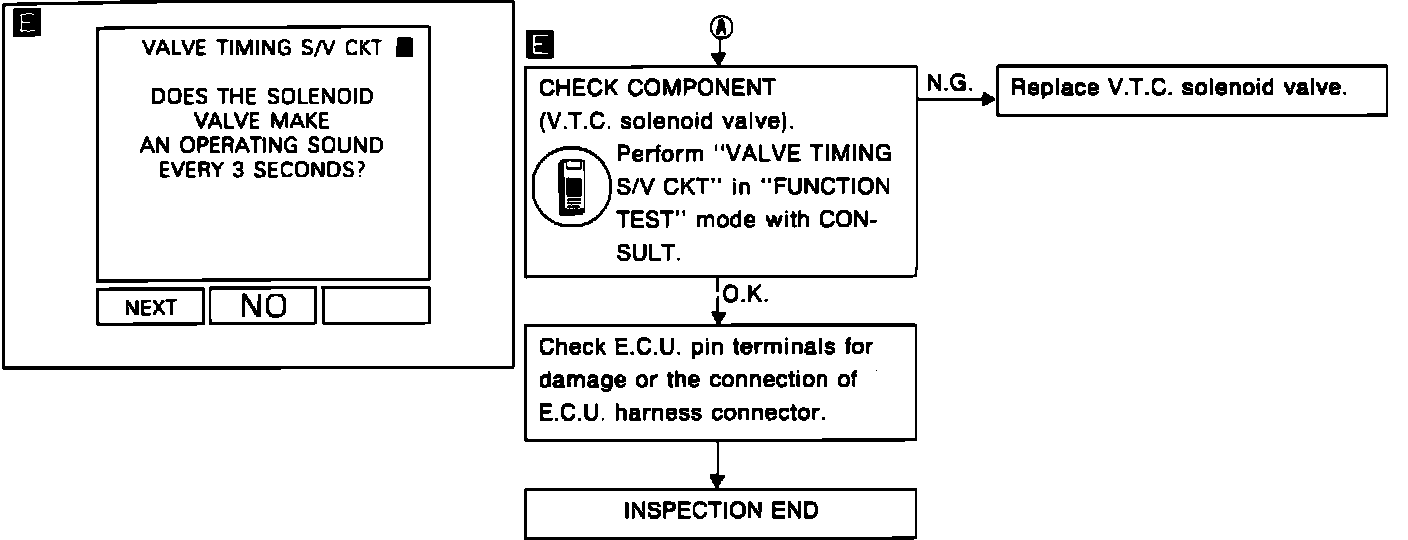

Fig. 199 Component Circuit Diagnosis, Valve Timing Control (Part 2 Of 2):
