Body Main Harness and Connectors
Body Main Harness and Connectors

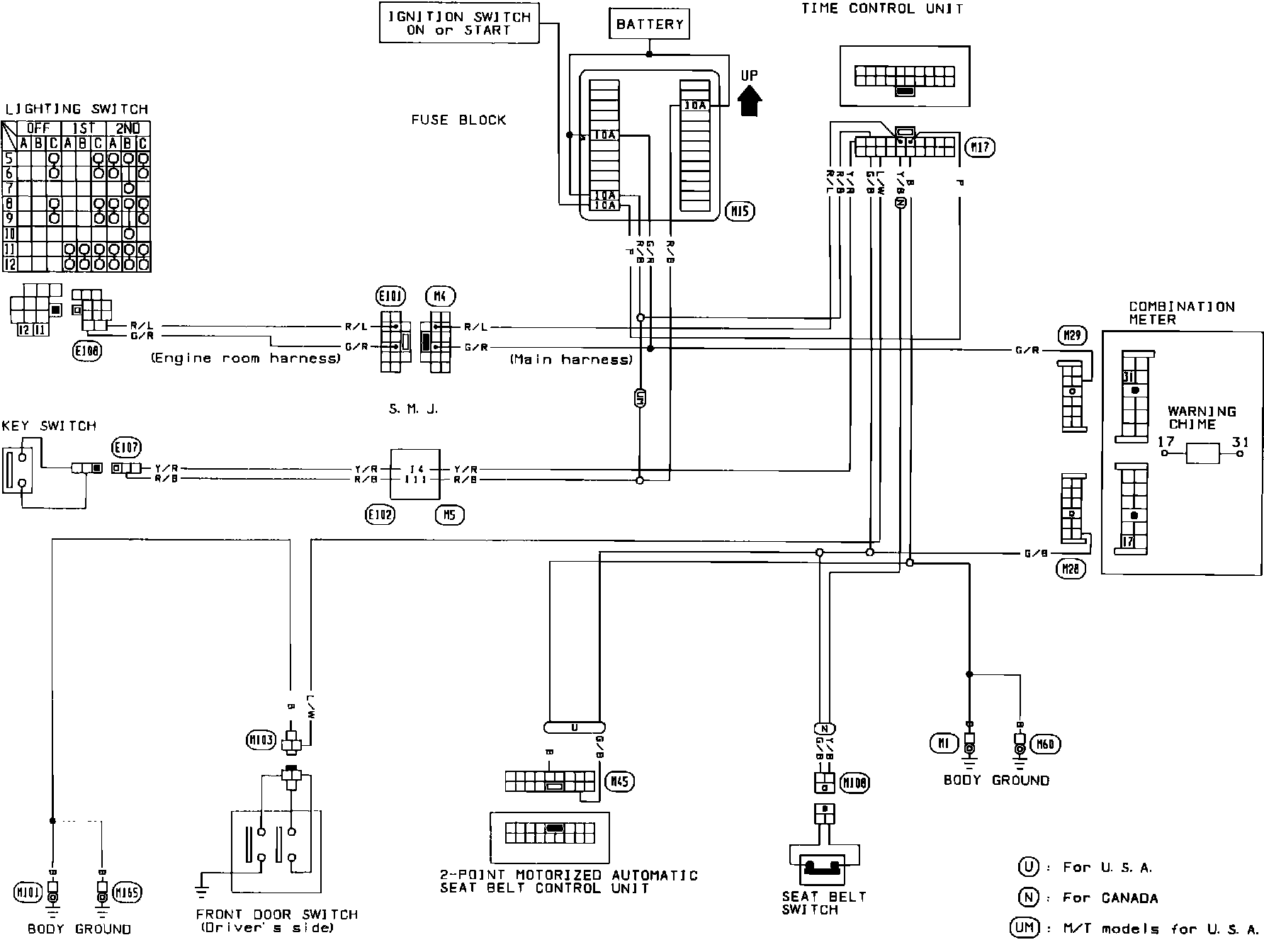

Warning Chime Wiring:

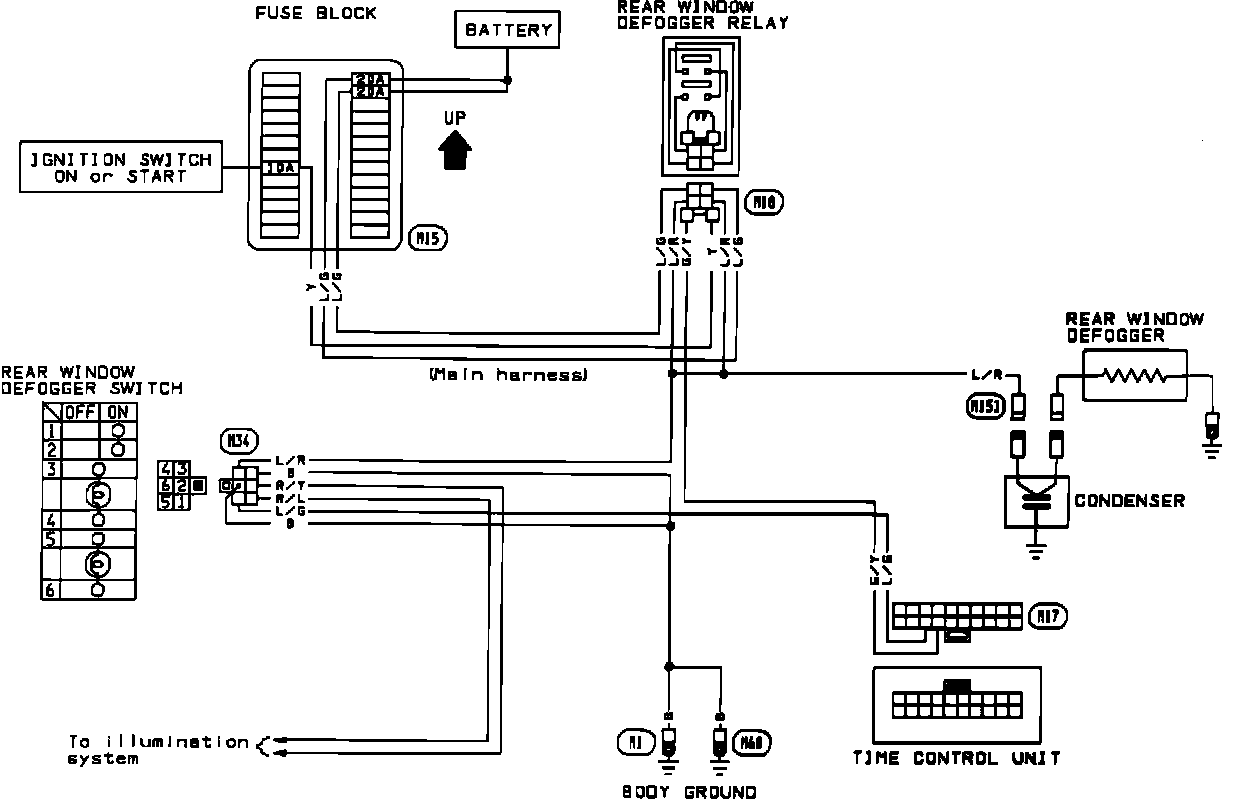

Rear Window Defogger Wiring:
