Diagnostic Procedure

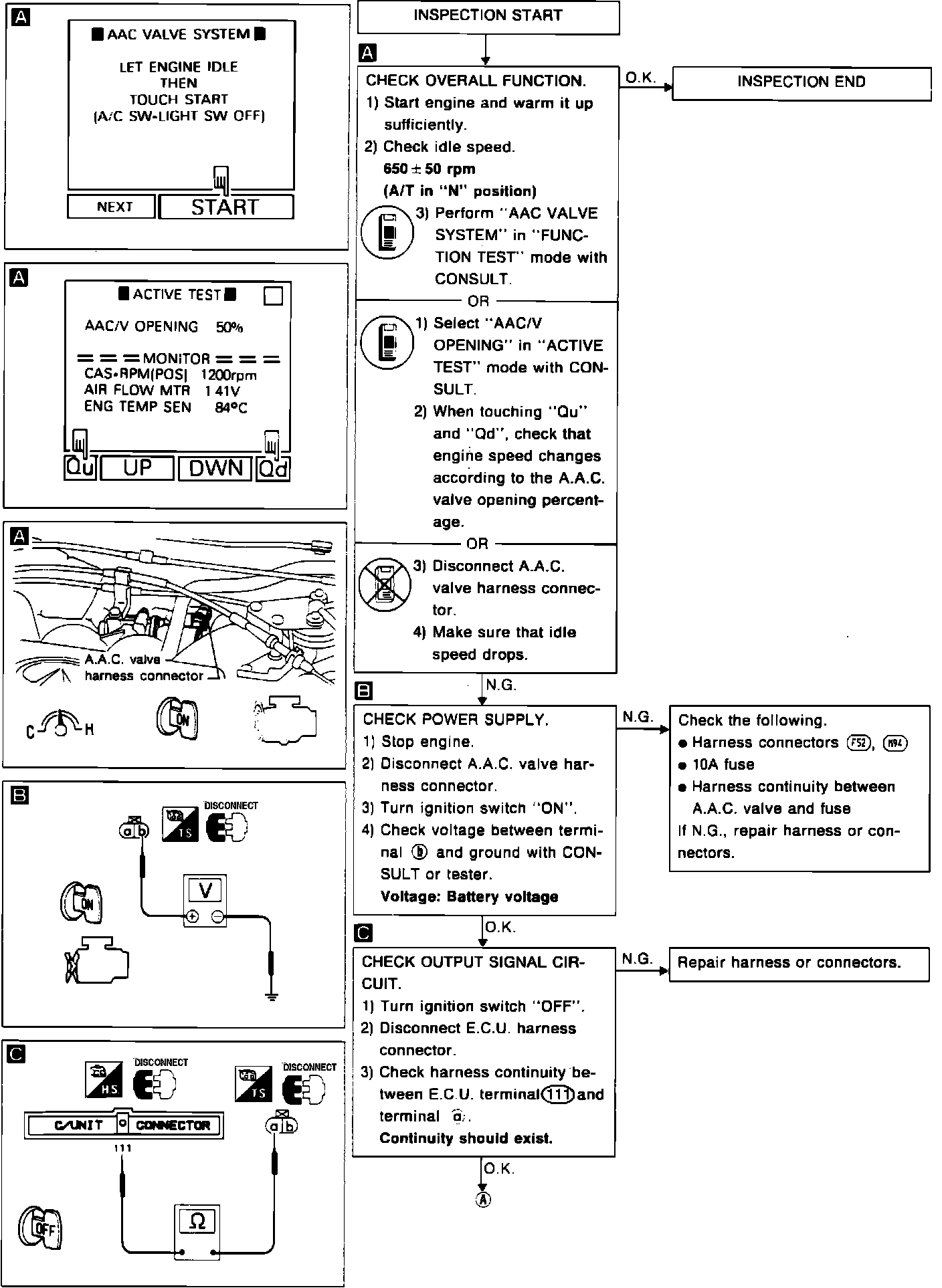

Fig. 196 Component Circuit Diagnosis, A.A.C. Valve (Part 1 Of 2):

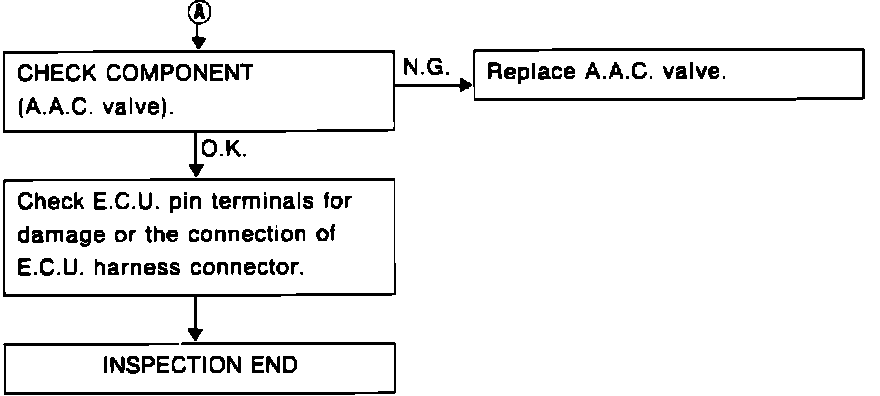

Fig. 196 Component Circuit Diagnosis, A.A.C. Valve (Part 2 Of 2):
