Lower, Rear

Fig. 11 Exploded View Of Rear Suspension.:

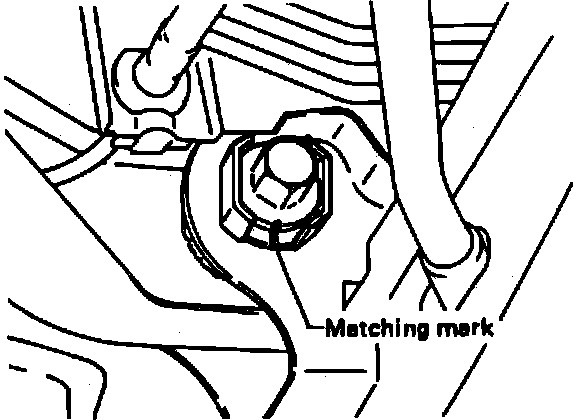

Fig. 12 Marking Suspension Arm Pin.:

1. Raise and support vehicle.
2. Remove axle shaft, refer to Transmission and Drivetrain/Drive Axles, Bearings and Joints.
3. Remove stabilizer attaching bolts, then parking brake cable.
4. Remove shock absorber lower attaching bolts, Fig. 11.
5. Put matching marks on suspension arm pin, then remove pin, Fig. 12.
6. Remove suspension arm.
7. Reverse procedure to install noting the following:
a. When installing, tighten suspension arm pin to specifications after installing wheels and placing vehicle on ground.
