Home >> Infiniti >> 1992 >> M30 V6-181 3.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> ECCS Wiring Diagrams

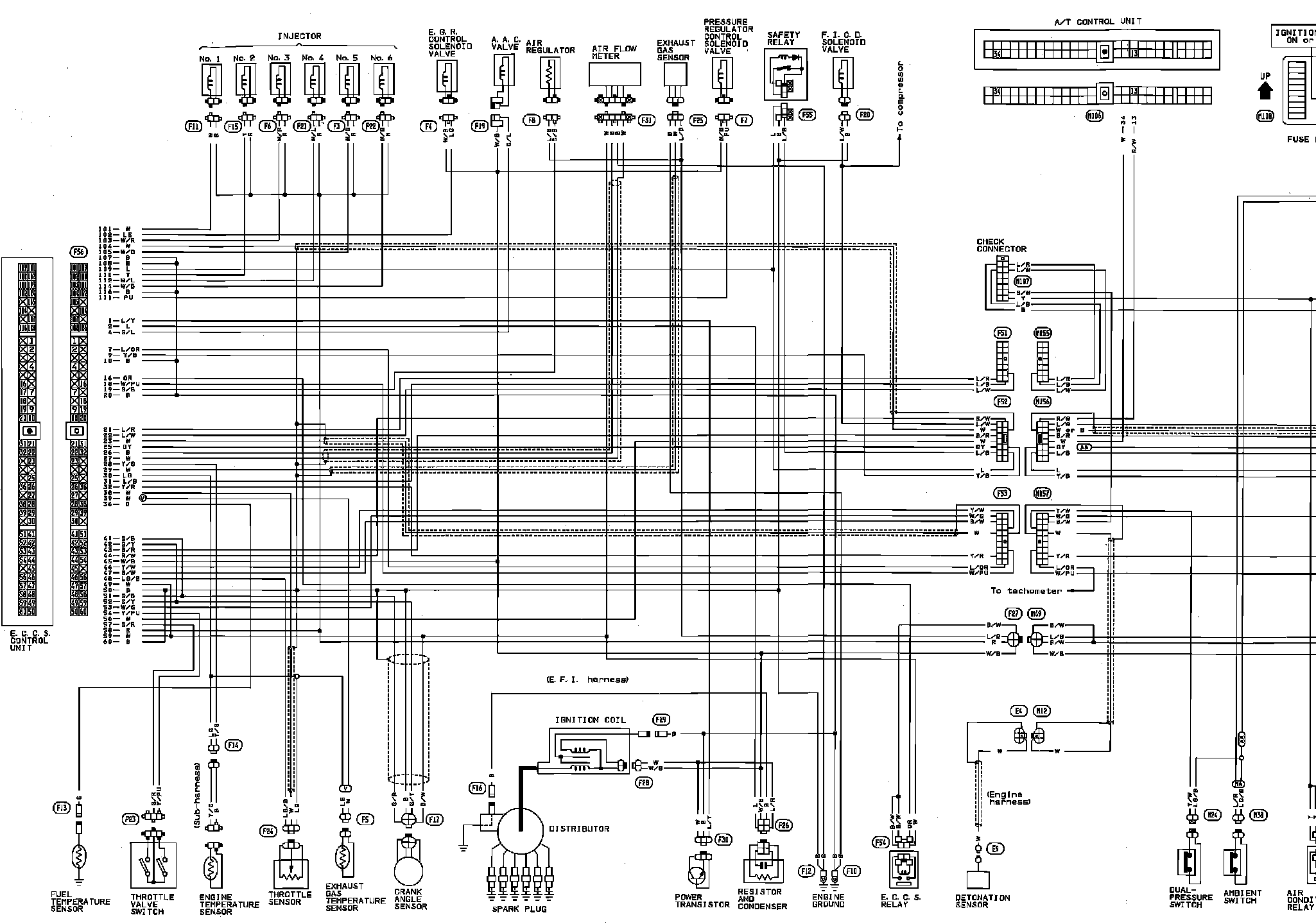

ECCS Wiring Diagrams

��+Engine Management Wiring:
