Curiosii for ever!: Car repair manuals for everyone.
Home >> Infiniti >> 1992 >> M30 V6-181 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Poor Driveability >> Spark Knock/Pings

Spark Knock/Pings

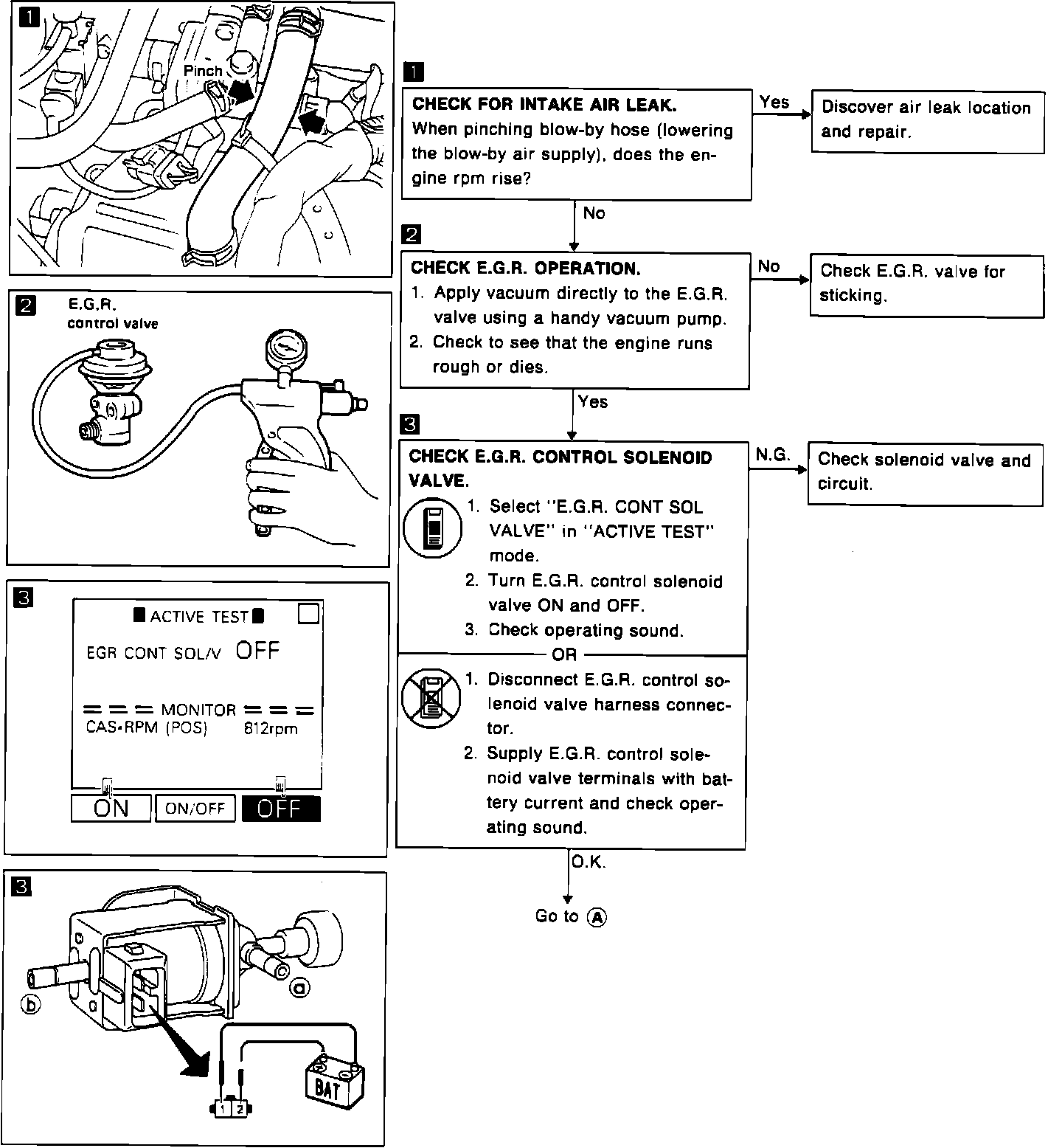

Fig. 131 Symptom, Knocking (Part 1 Of 2):

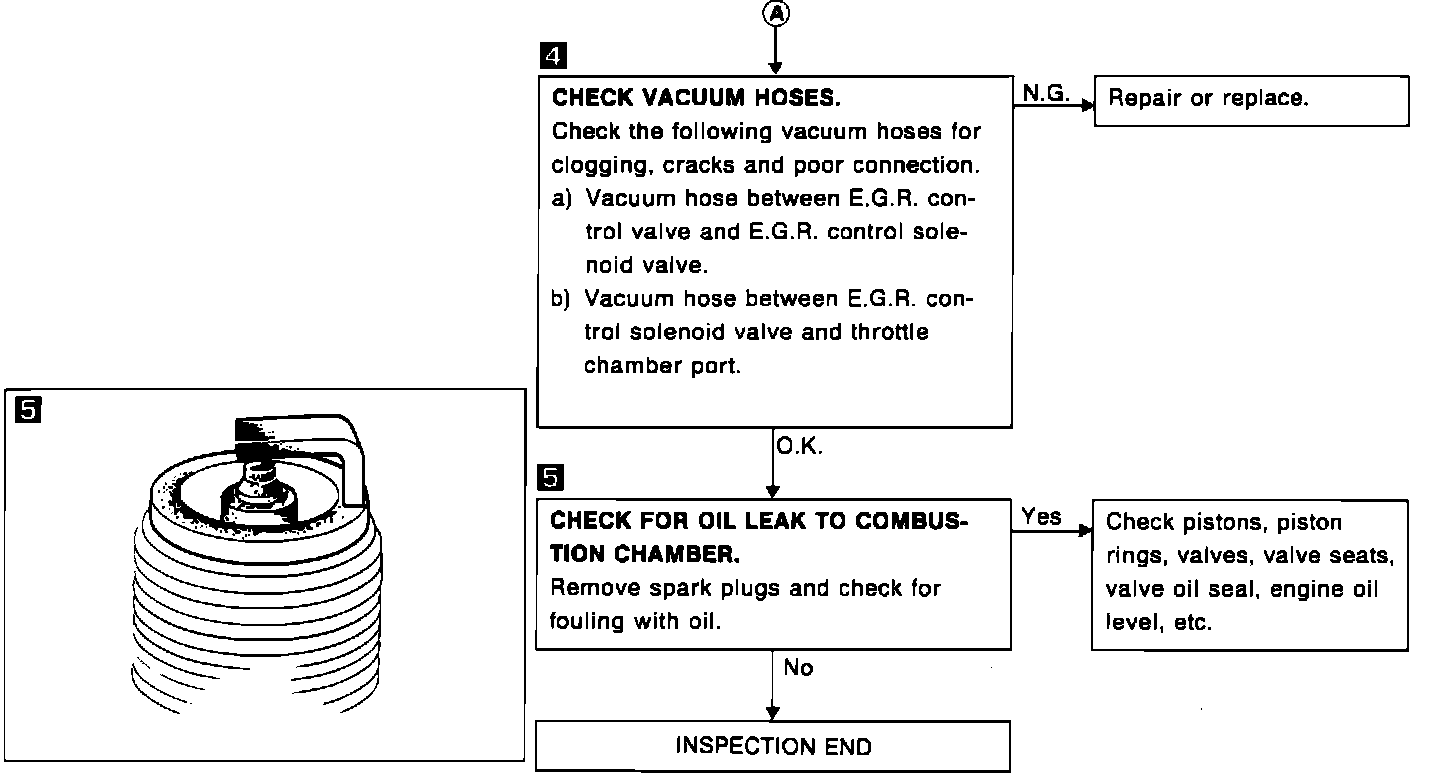

Fig. 131 Symptom, Knocking (Part 2 Of 2):
