Wheel Hub: Service and Repair

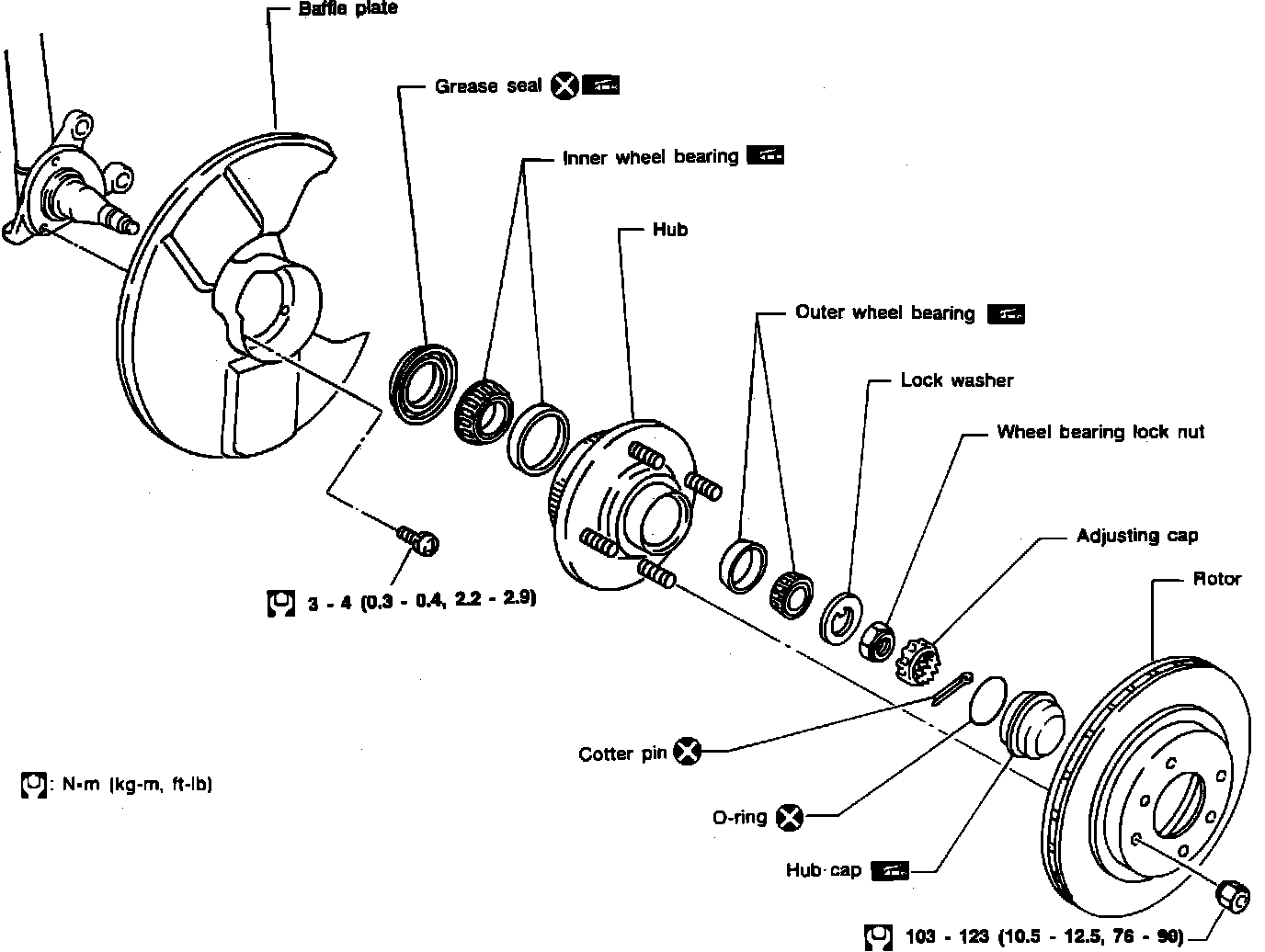

Fig. 1 Wheel Hub Assembly Removal:

1. Raise and support vehicle, then remove brake caliper and rotor.
2. Remove locknut, washers and outer bearing. Fig. 1.
3. Remove wheel hub and bearing from spindle.
4. Reverse procedure to install. Torque to specifications.
