License Plate Bulb: Testing and Inspection

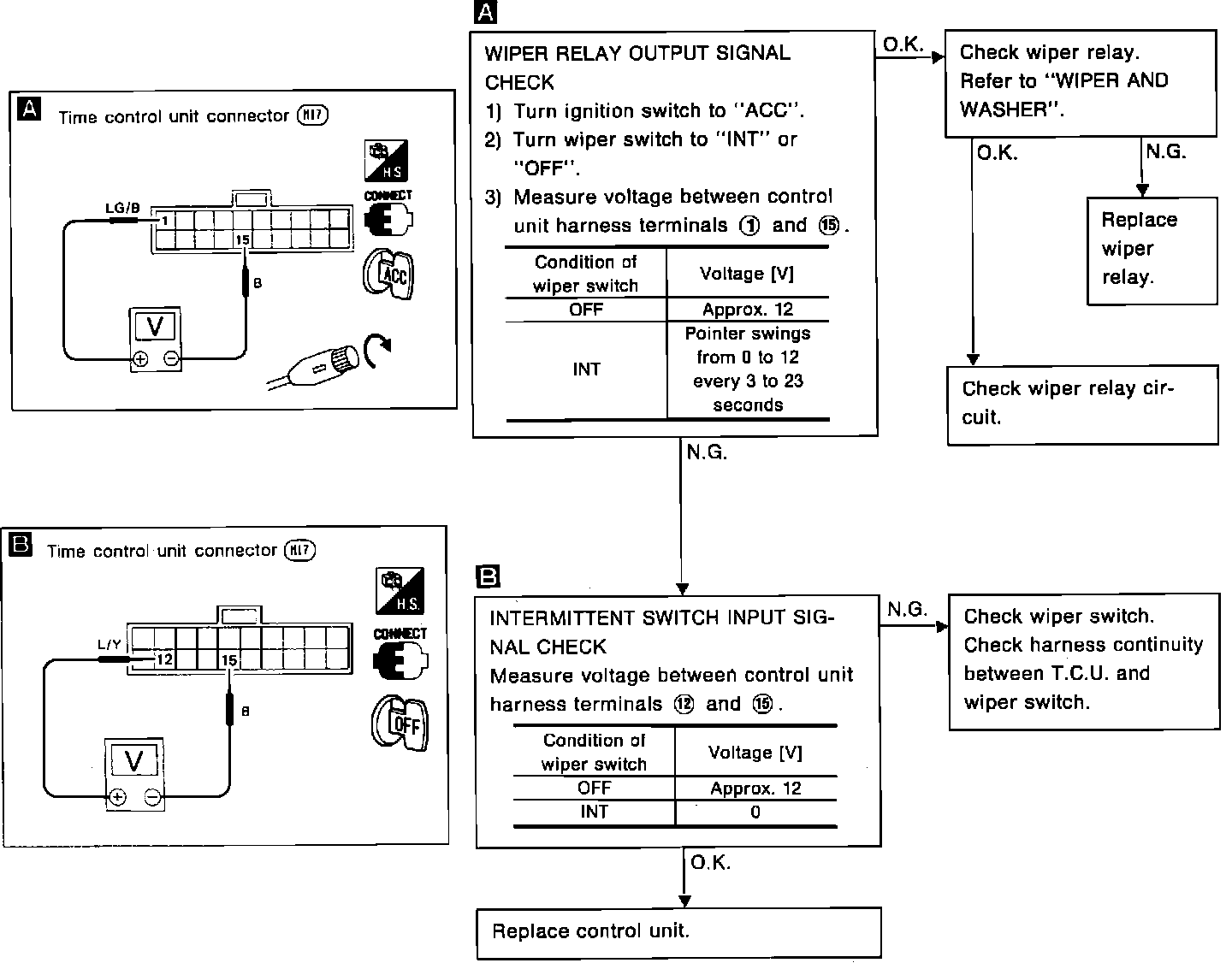

Fig. 4 Diagnostic Procedure 1, Intermittent Wiper Does Not Operate.:

Fig. 5 Diagnostic Procedure 2, Intermittent Time Of Wiper Cannot Be Adjusted.:

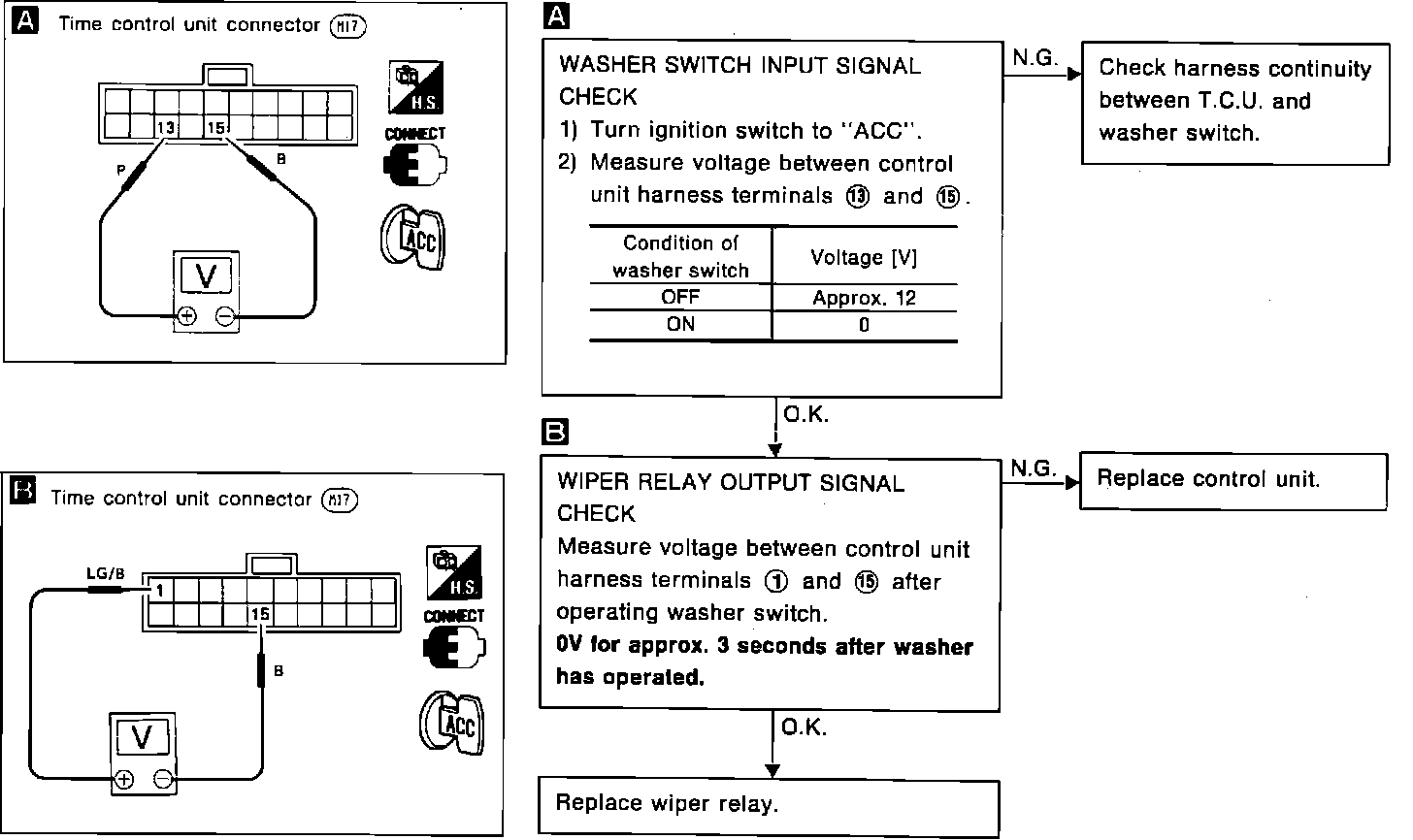

Fig. 6 Diagnostic Procedure 3, Wiper & Washer Activate Individually But Not In Combination.:

Refer to Figs. 4 through 6 for diagnosis and testing procedures, and SCHEMATIC DIAGRAMS/ELECTRICAL AND ELECTRONIC DIAGRAMS for wiring diagrams of wiper system.
