With Manual Temperature Controls

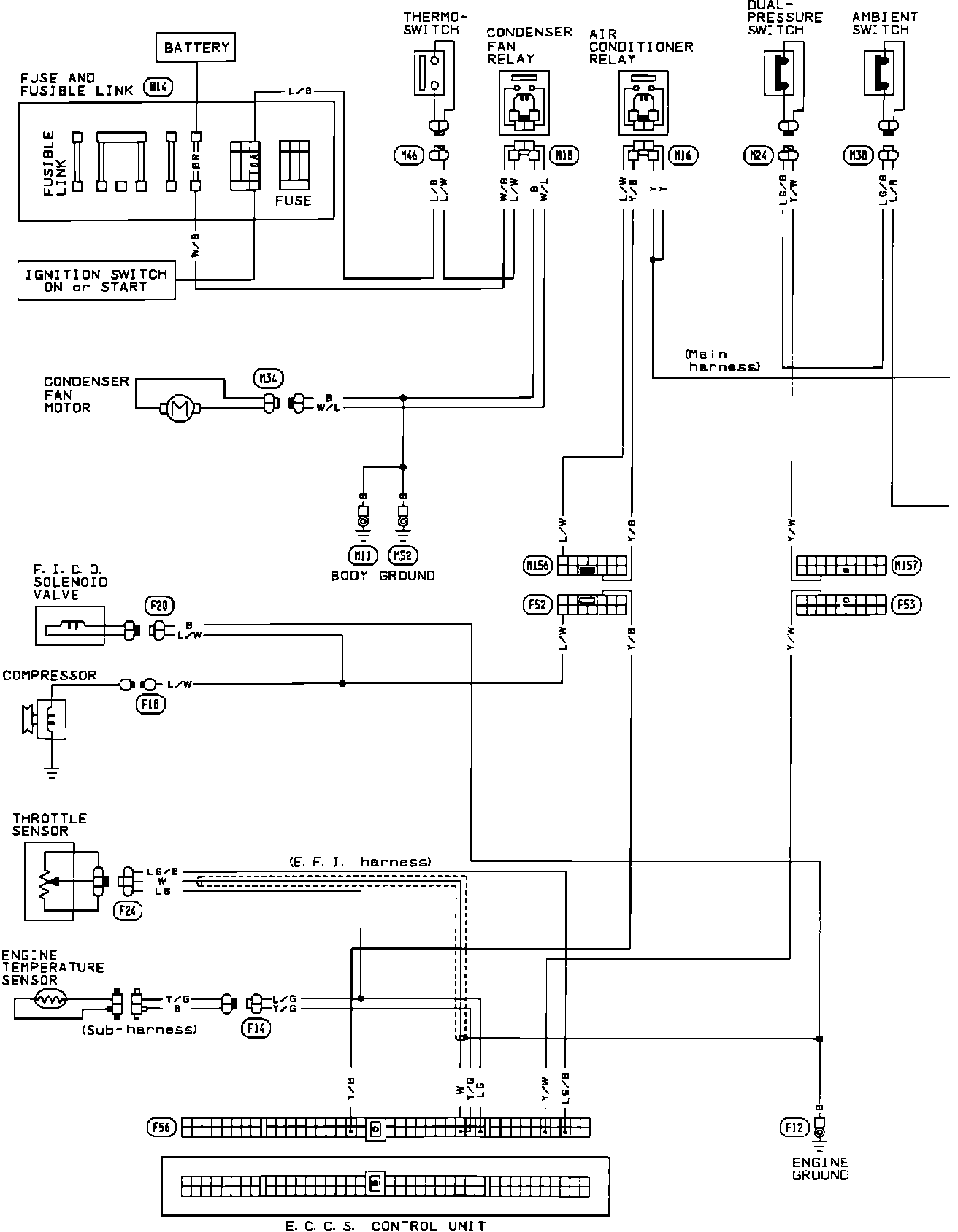

Air Conditioning System (Manual Type) Wiring:

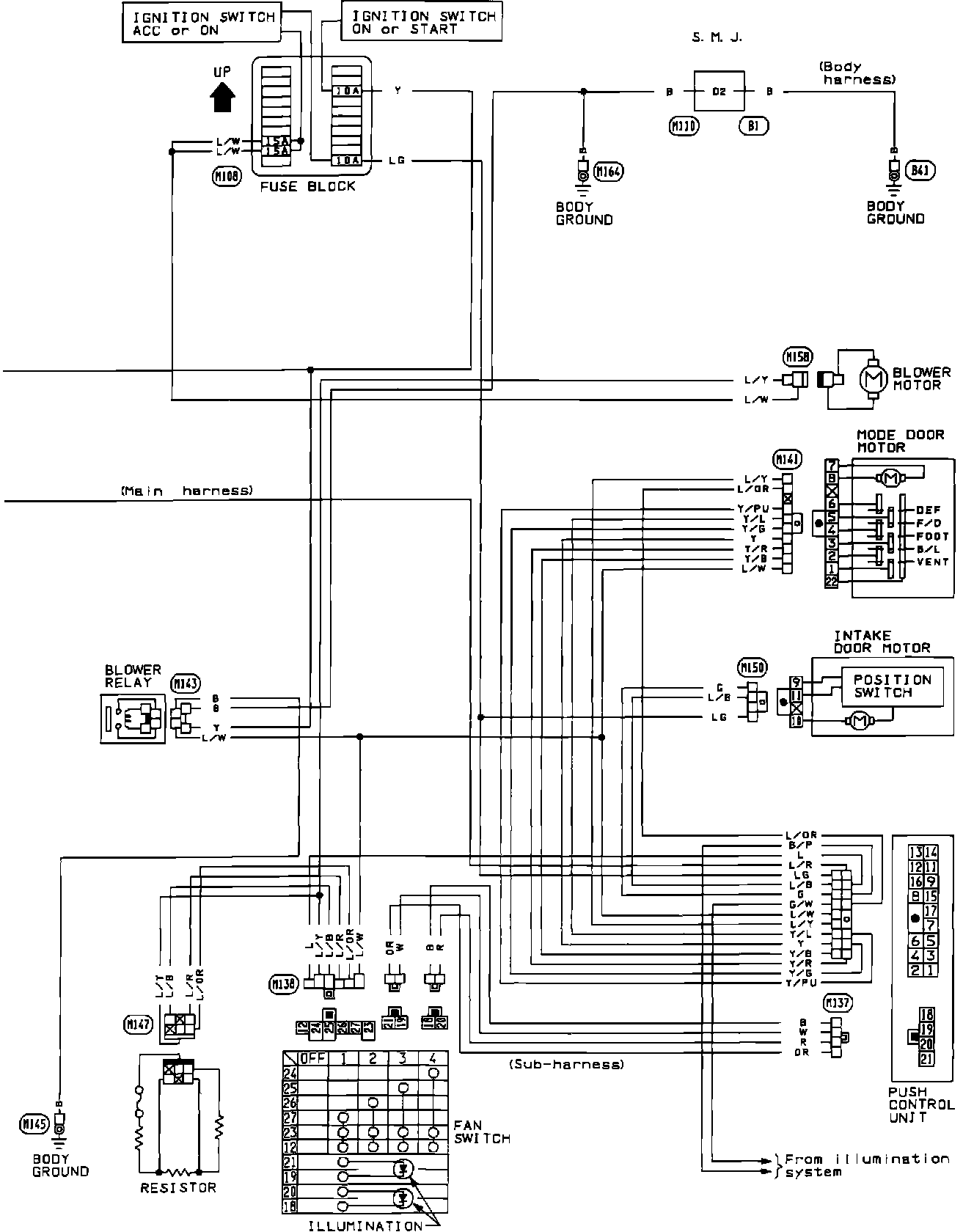

Air Conditioning System (Manual Type) Wiring:
