Infiniti
>>
1992
>>
M30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Audio System Wiring
>>
Bose System
Bose System

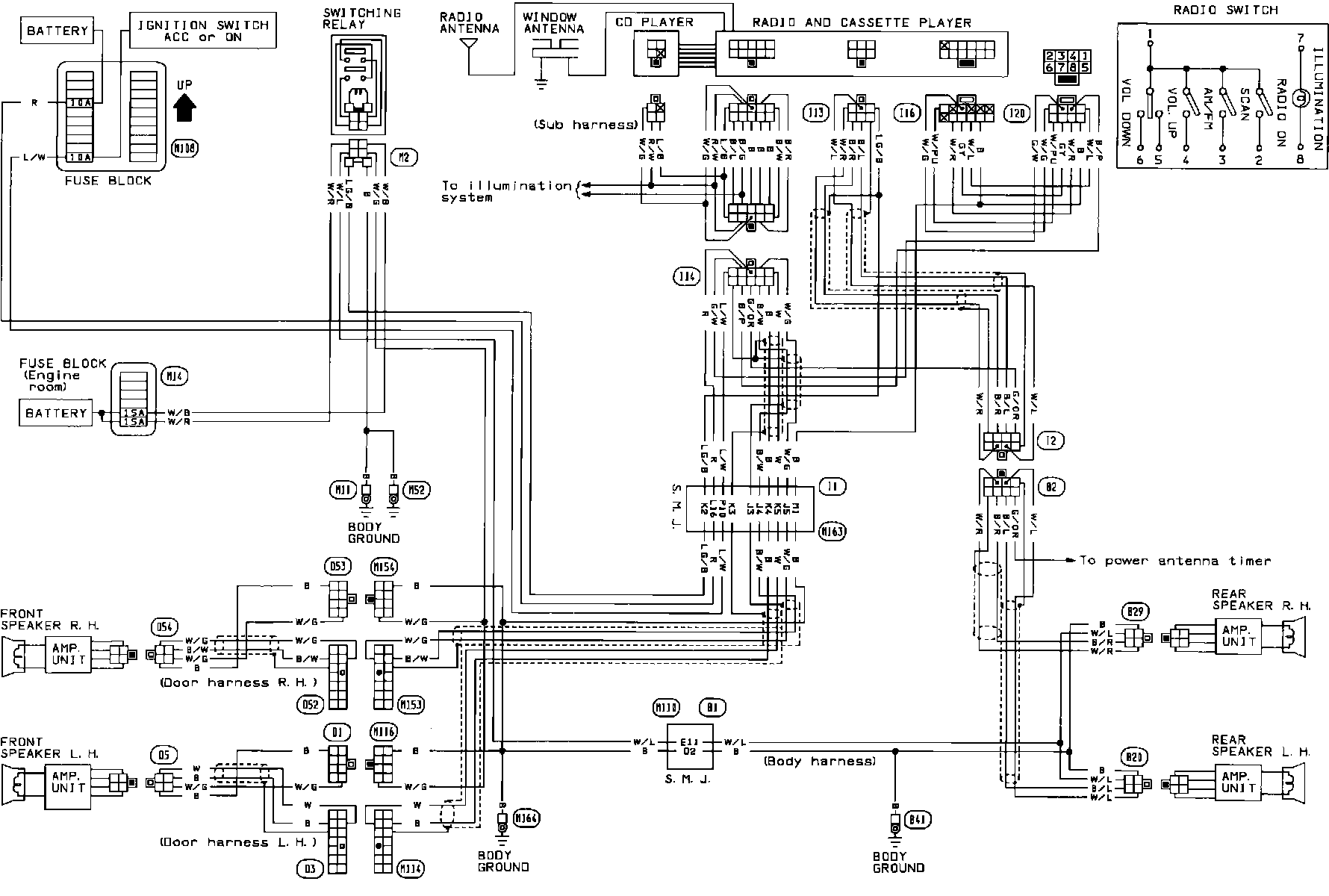

Audio System, With Bose Speakers:
