8: Actuator Motor Relay (LED Flashes 9)
8: Actuator Motor Relay (LED Flashes 9)

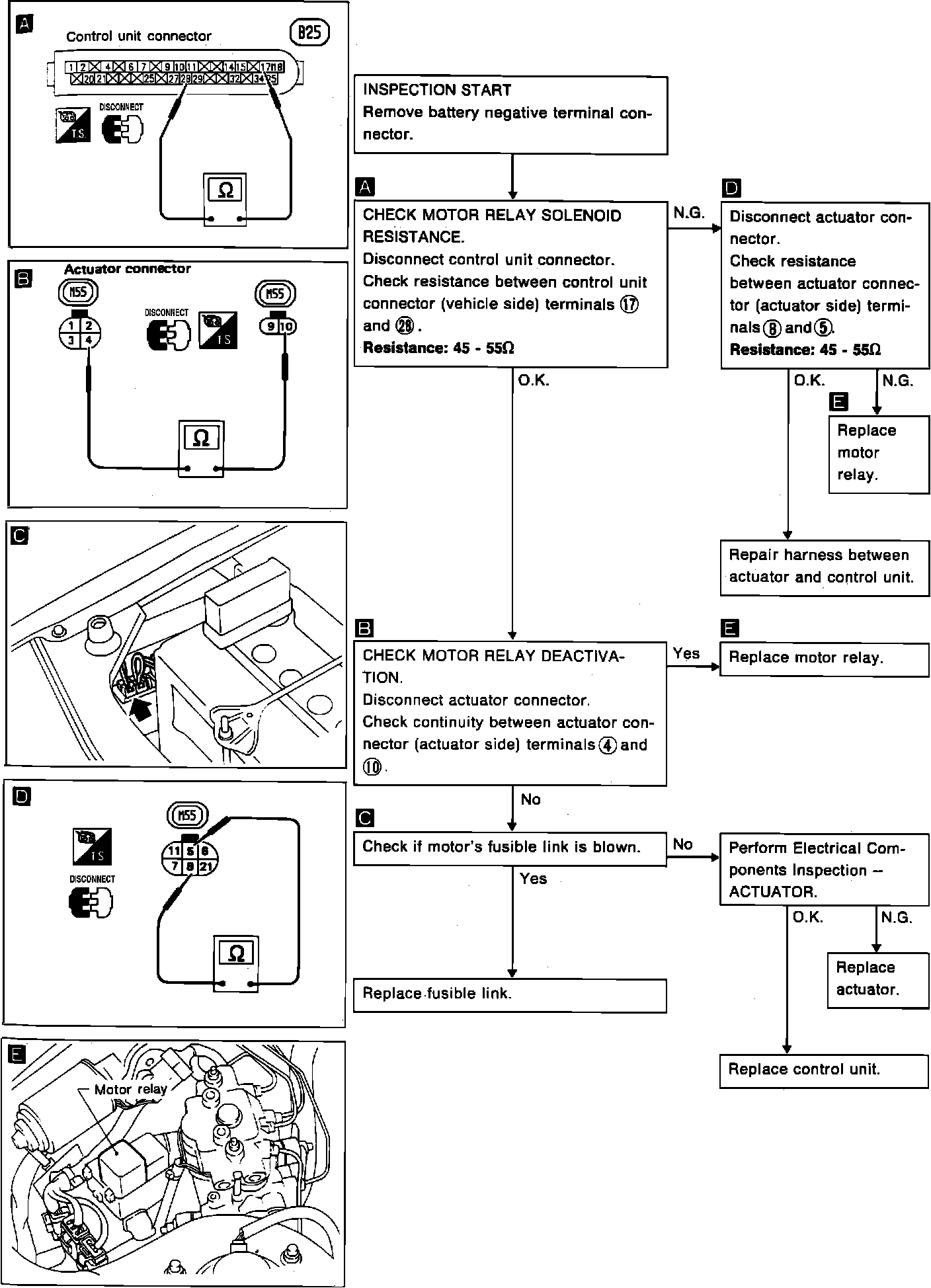

Fig. 36 Diagnostic Procedure 8, Actuator Relay Motor (LED Flashing Number 9).:
